C320 Sport Coupe
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2004 Mercedes-Benz CLK55, 2004 Mercedes-Benz CLK500, 2004 Mercedes-Benz CLK320, 2004 Mercedes-Benz C320, and 2004 Mercedes-Benz C32. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For model to chassis identification, see MODEL IDENTIFICATION - 203 CHASSIS
table under MODEL IDENTIFICATION.
To adjust hood gap, see ADJUSTING HOOD GAP (C320 SPORT COUPE) table.

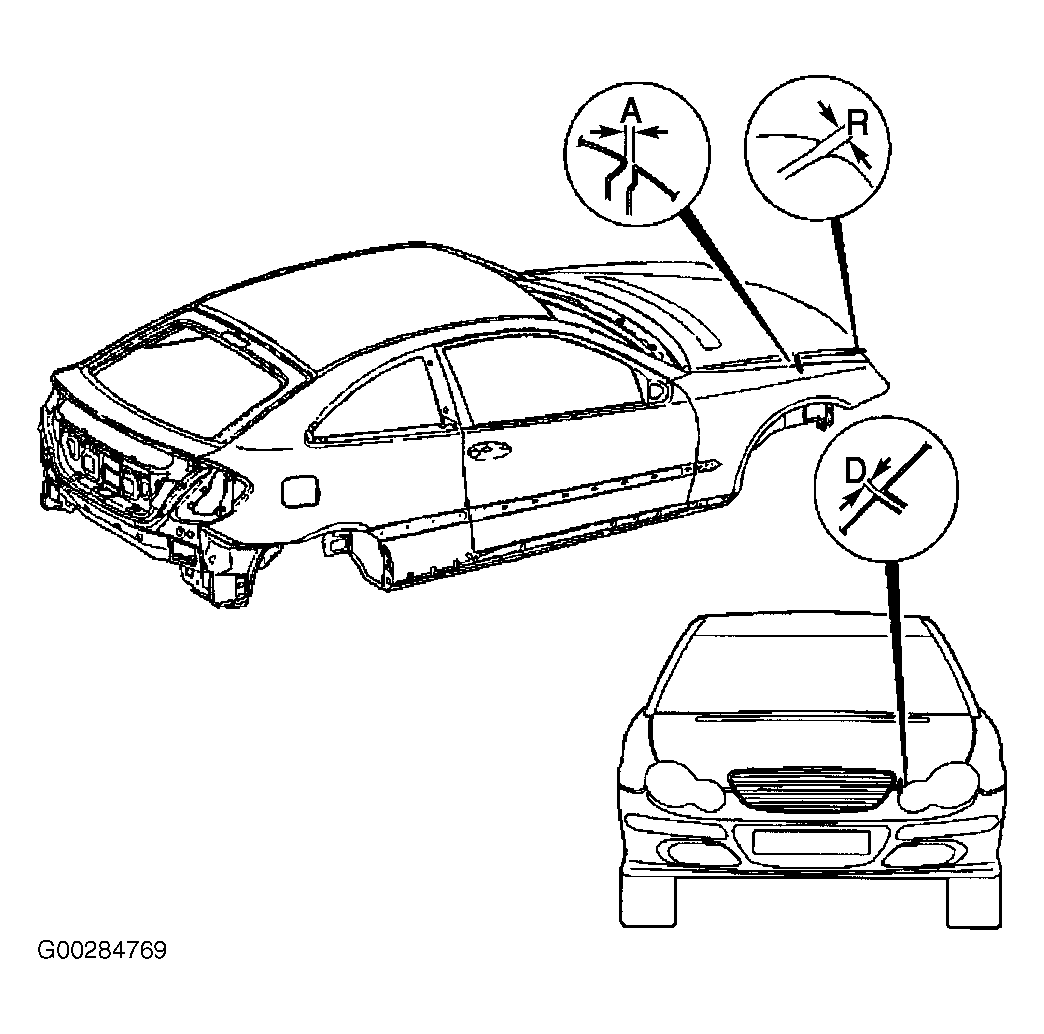

ADJUSTING HOOD GAP (C320 SPORT COUPE)
| Gap Dimension | Hood Gap | |||
|---|---|---|---|---|
| Hood-To-Fender | ||||
| Dimension "A" (1) | 2.6-4.6 mm | |||
| Hood-To-Bumper | ||||
| Dimension "D" | 5 mm | |||
| Hood-To-Headlamp | ||||
| Dimension "R" (1) | 3.5-5.5 mm | |||
|
||||
