Component Locations (210 Chassis Except 210.08/28)
WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2002 Mercedes-Benz E430, 2002 Mercedes-Benz E320, 2001 Mercedes-Benz E430, 2001 Mercedes-Benz E320, and 2000 Mercedes-Benz E430. However, it is still accessible from the selected car via links, so may be relevant.

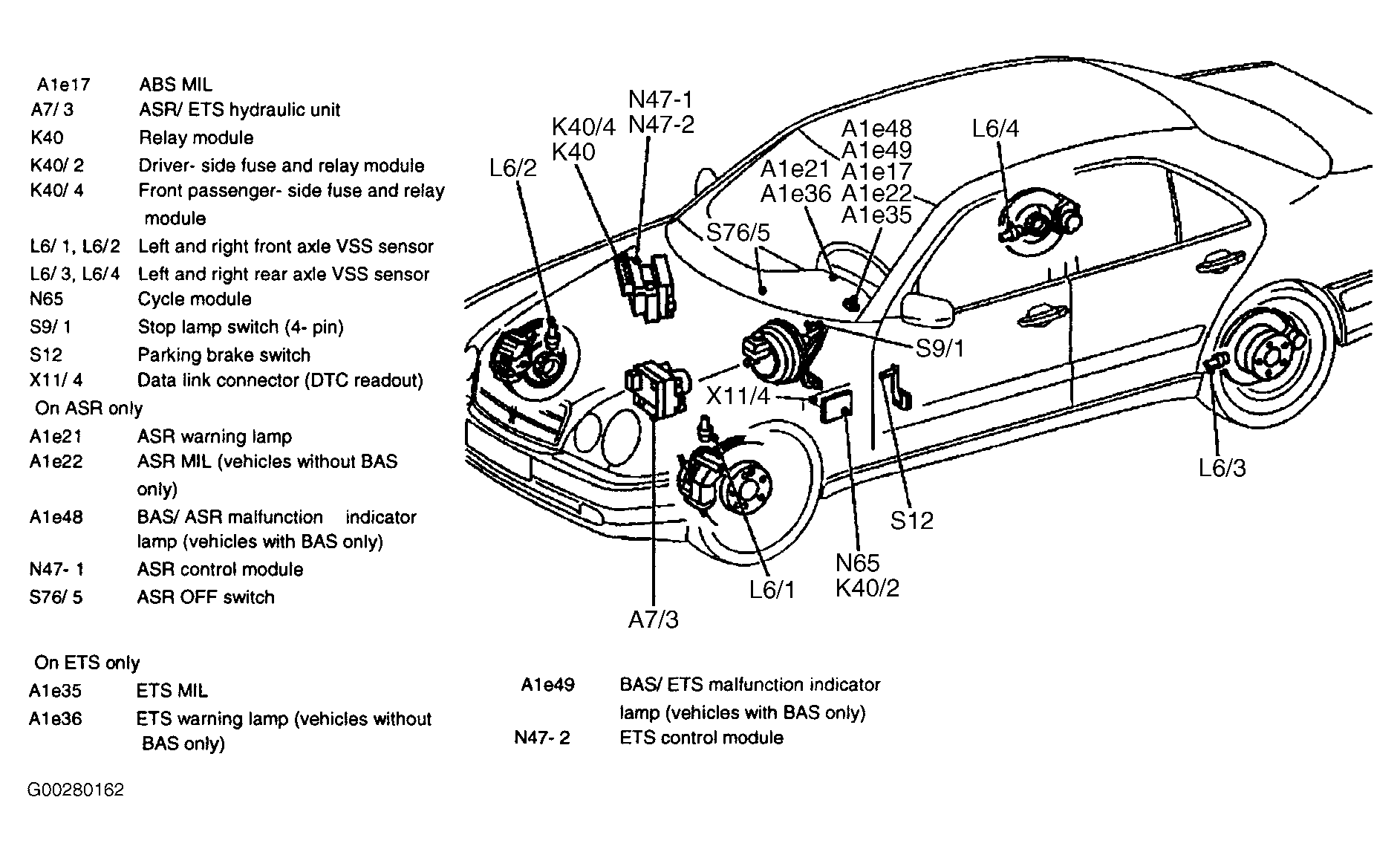

COMPONENT LOCATIONS (210 CHASSIS EXCEPT 210.08/28)
| Component | See |
|---|---|
| ABS MIL (A1e17) | Fig 1 |
| ASR Control Module (N47-1) | Fig 1 |
| ASR/ETS Hydraulic Unit (A7/3) | Fig 1 |
| ASR MIL (Vehicles Without BAS Only) (A1e22) | Fig 1 |
| ASR Off Switch (S76/5) | Fig 1 |
| ASR Warning Lamp (A1e21) | Fig 1 |
| BAS/ASR Malfunction Indicator Lamp (Vehicles With BAS Only) | Fig 1 |
| BAS/ETS Malfunction Indicator Lamp (Vehicles Without BAS Only) (A1e49) | Fig 1 |
| Cycle Module (N65) | Fig 1 |
| Data Link Connector (DTC Readout) (X11/4) | Fig 1 |
| Driver Side fuse & Relay Module (K40/2) | Fig 1 |
| ETS Control Module (N47-2) | Fig 1 |
| ETS MIL (A1e35) | Fig 1 |
| ETS Warning Lamp (Vehicles Without BAS Only) (A1e36) | Fig 1 |
| Front Passenger Side Fuse & Relay Module (K40/4) | Fig 1 |
| Left & Right Front Axle VSS Sensor (L6/1, L6/2) | Fig 1 |
| Left & Right Rear Axle VSS Sensor (L6/3, L6/4) | Fig 1 |
| Parking Brake Switch (S12) | Fig 1 |
| Relay Module (K40) | Fig 1 |
| Stop Lamp Switch (4 Pin) (S9/1) | Fig 1 |
