Component Locations (202 Chassis As Of 5/97)
WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2002 Mercedes-Benz E430, 2002 Mercedes-Benz E320, 2001 Mercedes-Benz E430, 2001 Mercedes-Benz E320, and 2000 Mercedes-Benz E430. However, it is still accessible from the selected car via links, so may be relevant.

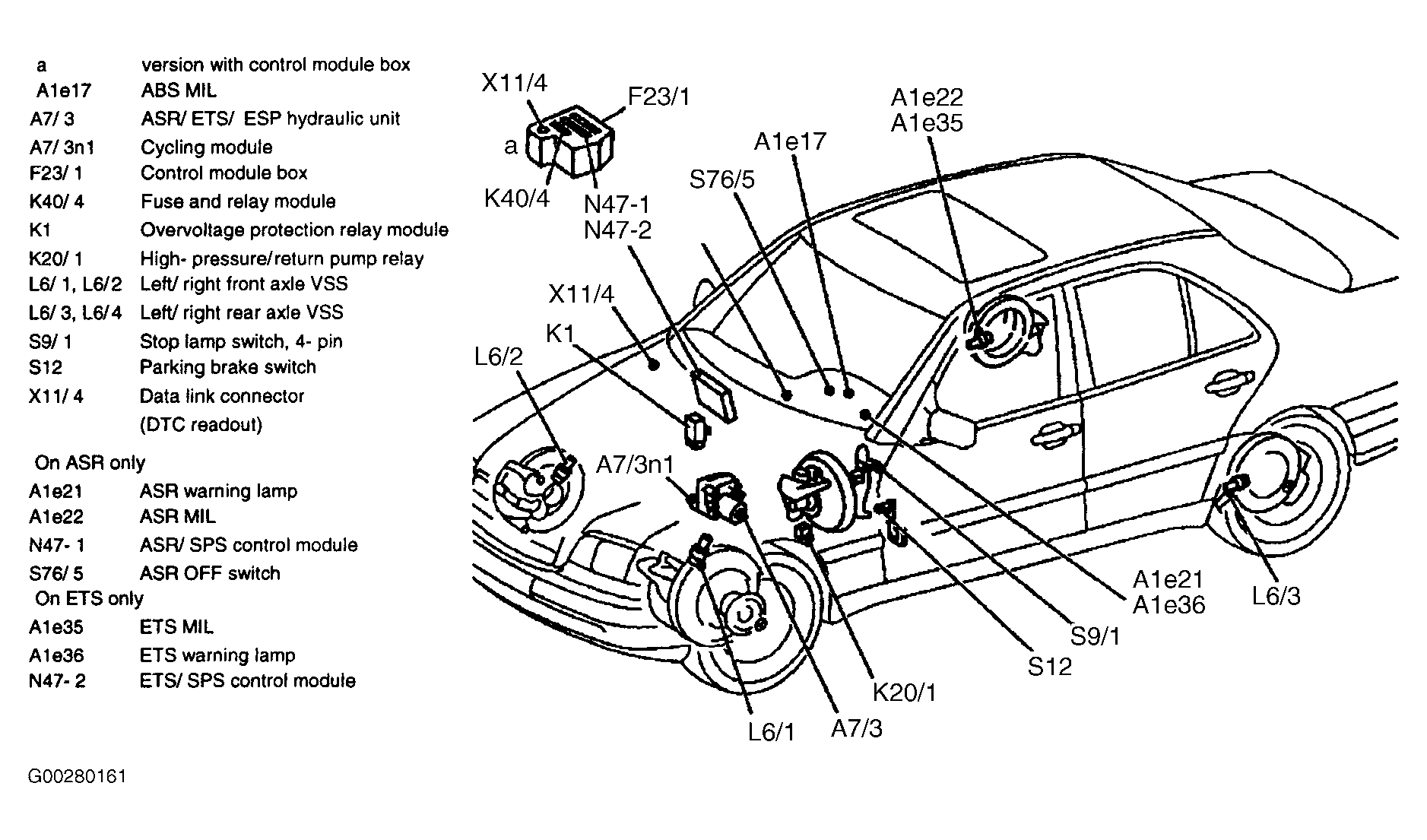

COMPONENT LOCATIONS (202 CHASSIS AS OF 5/97)
| Component | See |
|---|---|
| ABS MIL (A1e17) | Fig 1 |
| ASR/ETS/ESP Hydraulic Unit (A7/3) | Fig 1 |
| ASR MIL (A1e22) | Fig 1 |
| ASR Off Switch (S76/5) | Fig 1 |
| ASR/SPS Control Module (N47-1) | Fig 1 |
| ASR Warning Lamp (A1e21) | Fig 1 |
| Control Module Box (F23/1) | Fig 1 |
| Cycling Module (A7/3n1) | Fig 1 |
| Data Link Connector (DTC Readout) (X11/4) | Fig 1 |
| ETS MIL (A1e35) | Fig 1 |
| ETS/SPS Control Module (N47-2) | Fig 1 |
| ETS Warning Lamp (A1e36) | Fig 1 |
| Fuse & Relay Module (K40/4) | Fig 1 |
| High Pressure/Return Pump Relay (K20/1) | Fig 1 |
| Left/Right Front Axle VSS Sensor (L6/1, L6/2) | Fig 1 |
| Left/Right Rear Axle VSS Sensor (L6/3, L6/4) | Fig 1 |
| Overvoltage Protection Relay Module (K1) | Fig 1 |
| Parking Brake Switch (S12) | Fig 1 |
| Stop Lamp Switch (4 Pin) (S9/1) | Fig 1 |
