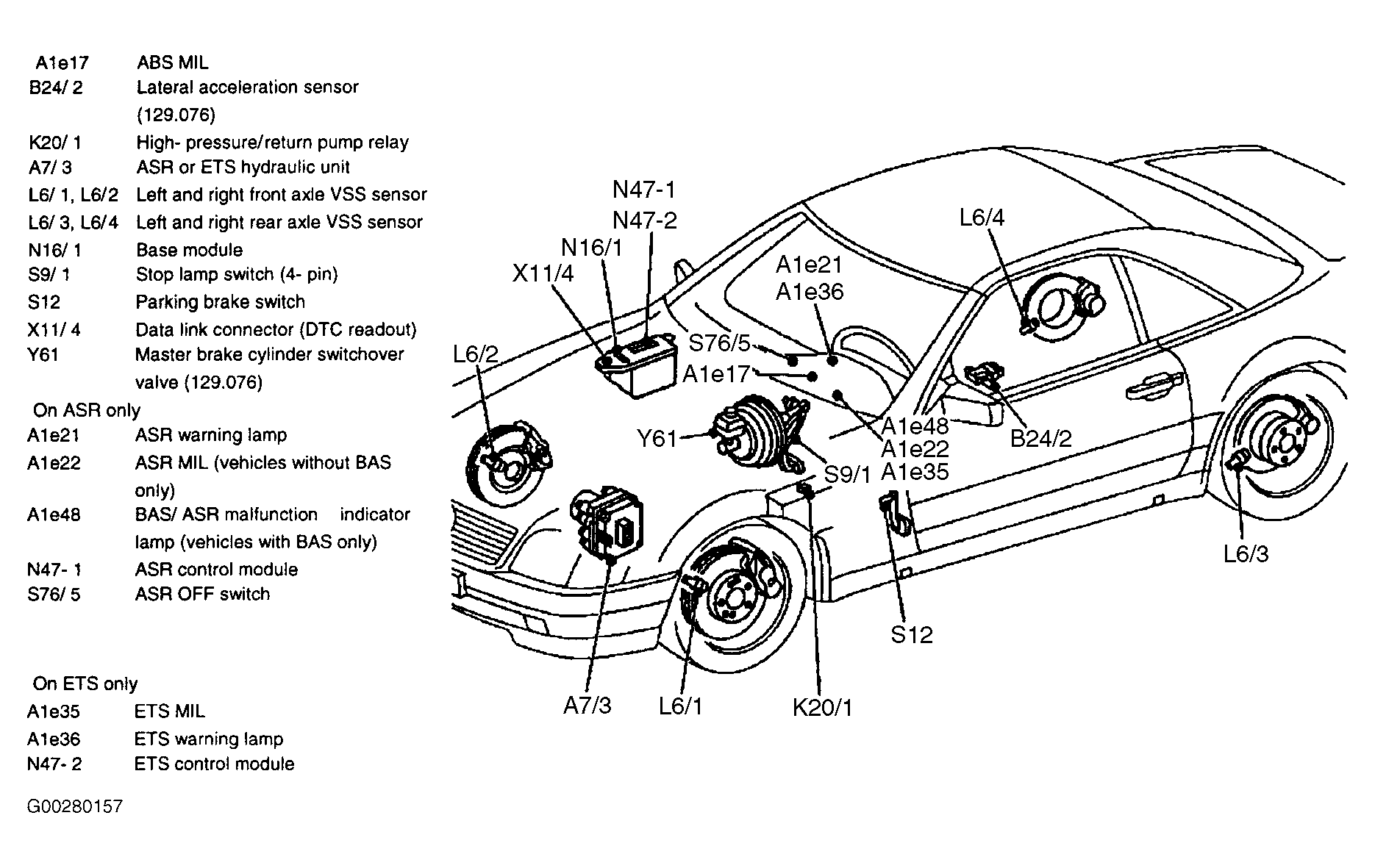

COMPONENT LOCATIONS (129 CHASSIS)
| Component | See |
|---|---|
| ABS MIL (A1e17) | Fig 1 |
| ASR Control Module (N47-1) | Fig 1 |
| ASR Off Switch (S76/5) | Fig 1 |
| ASR Or ETS Hydraulic Unit (A7/3) | Fig 1 |
| ASR MIL (Vehicles Without BAS Only) (A1e22) | Fig 1 |
| ASR Warning Lamp (A1e21) | Fig 1 |
| BAS/ASR Malfunction Indicator Lamp (Vehicles With BAS Only) (A1e48) | Fig 1 |
| Base Module (N16/1) | Fig 1 |
| Data Link Connector (DTC Readout) (X11/4) | Fig 1 |
| ETS MIL (A1e35) | Fig 1 |
| ETS Control Module (N47-2) | Fig 1 |
| ETS Warning Lamp (A1e36) | Fig 1 |
| High Pressure/Return Pump Relay (K20/1) | Fig 1 |
| Lateral Acceleration Sensor (129.076) (B24/2) | Fig 1 |
| Left & Right Front Axle VSS Sensor (L6/1, L6/2) | Fig 1 |
| Left & Right Rear Axle VSS Sensor (L6/3, L6/4) | Fig 1 |
| Master Brake Cylinder Switchover Valve (129.076) (Y61) | Fig 1 |
| Parking Brake Switch (S12) | Fig 1 |
| Stop Lamp Switch (4-Pin) (S9/1) | Fig 1 |
