Mercedes Benz
>>
2003
>>
CLK430
>>
Repair and Diagnosis
>>
Engine Performance
>>
Ignition System
>>
Mixture Formation -- 208 Chassis
>>
Self-Diagnostic System
>>
ME-SFI gasoline injection system - Testing electrical system - AD07.61-P-6000
>>
ME-SFI gasoline injection system, testing of electrical system - AD07.61-P-6000B
>>
ME-SFI control module, terminal 87 - ME-SFI gasoline injection system - Testing electrical system - AD07.61-P-6000-02B
ME-SFI control module, terminal 87 - ME-SFI gasoline injection system - Testing electrical system - AD07.61-P-6000-02B

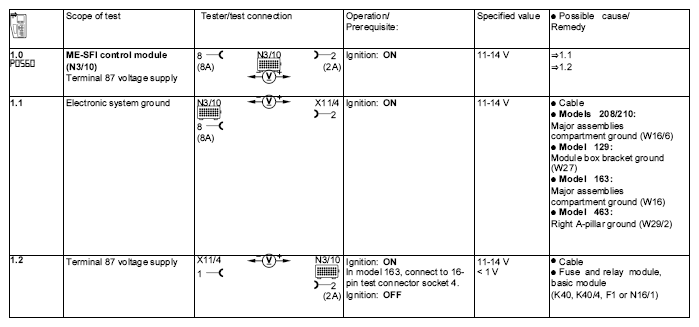

Fig 1: ME-SFI Control Module, Terminal 87 - ME-SFI Gasoline Injection System - Testing Electrical System
