Intake air temperature sensor - ME-SFI gasoline injection system - Testing electrical system - AD07.61-P-6000-05A

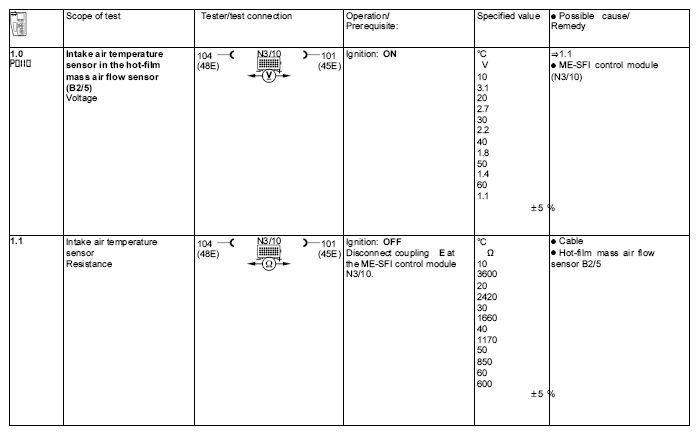

Fig 1: Intake Air Temperature Sensor - ME-SFI Gasoline Injection System - Testing Electrical System
G04606044
