Motor electronics (ME-SFI) fuel injection and ignition system control unit output signals - GF07.61-P-0001-07A

Shown on engine 112 in model 210

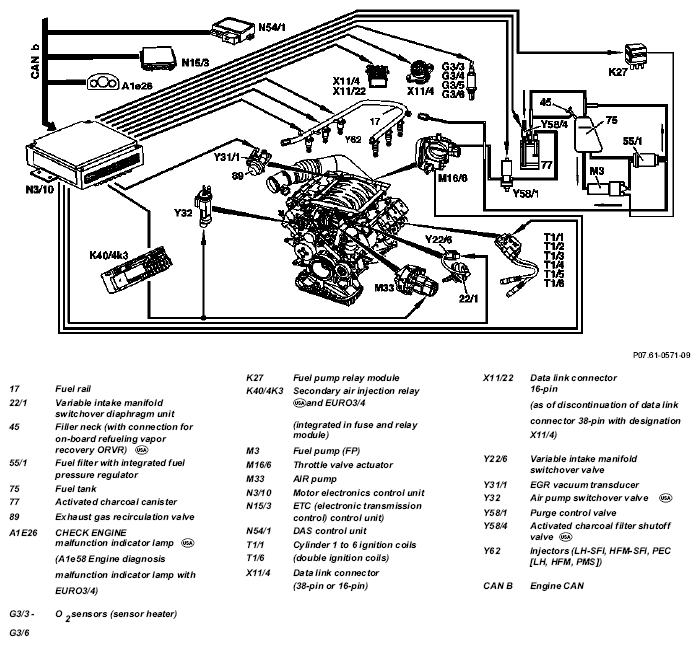

Fig 1: Identifying Motor Electronics Fuel Injection And Ignition System Control Unit Output Signals - Shown On Engine 112 In Model 210
G04605909
