Parktronic system (PTS), location of components - GF54.65-P-0001-02C
Model 208 with code 220a Parktronic system (PTS)

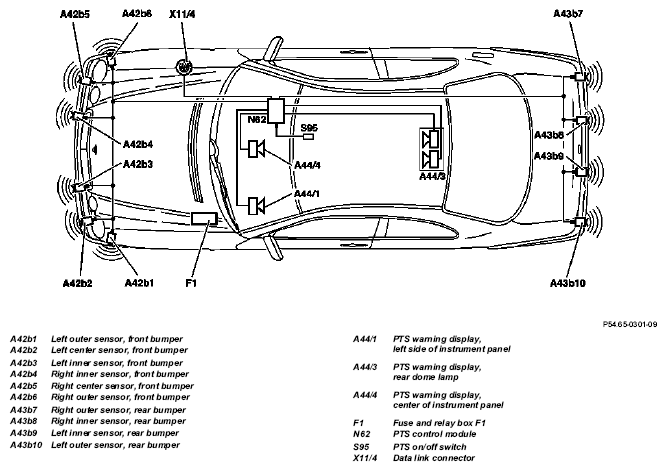

Fig 1: Identifying Parktronic System Components Location
