Symptom Index

WARNING: This page does not describe the selected car, but rather 76 other vehicles, including the 2002 Mercedes-Benz SL600, 2002 Mercedes-Benz SL500, 2002 Mercedes-Benz E55, 2002 Mercedes-Benz E430, and 2002 Mercedes-Benz E320. However, it is still accessible from the selected car via links, so may be relevant.

Use symptom index to determine which system tests to perform. See Fig 1.

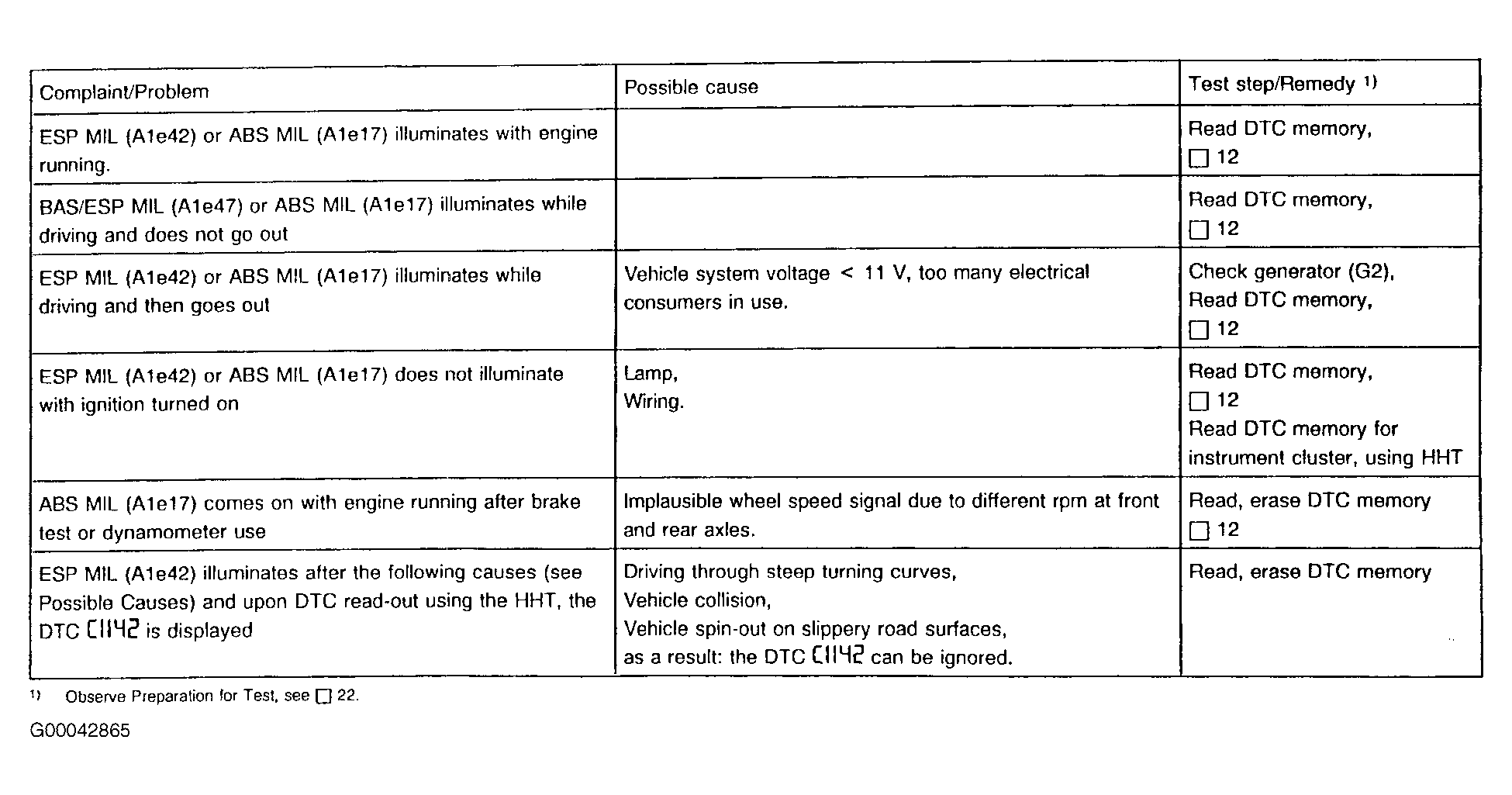

Fig 1: Identifying Symptom Index
G00042865Courtesy of DAIMLERCHRYSLER CORPORATION
