Test Preparation

WARNING: This page does not describe the selected car, but rather 76 other vehicles, including the 2002 Mercedes-Benz SL600, 2002 Mercedes-Benz SL500, 2002 Mercedes-Benz E55, 2002 Mercedes-Benz E430, and 2002 Mercedes-Benz E320. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure ignition is OFF.
  2. Disconnect ESP/SPS control module (N47-5).

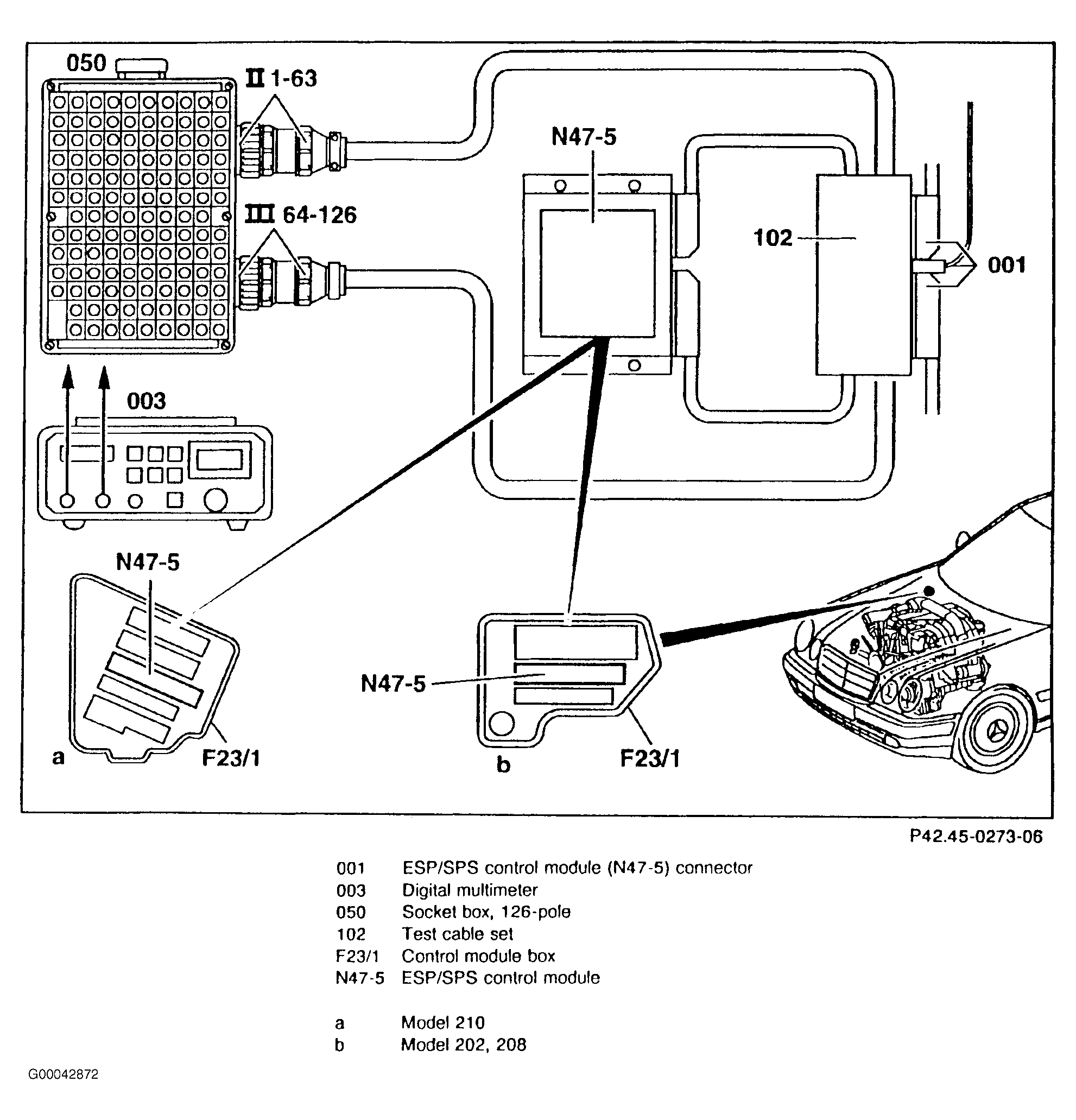

  3. Connect Socket Box and test cable using connection diagram. See Fig 1.
Fig 1: Identifying Connection Diagram
G00042872Courtesy of DAIMLERCHRYSLER CORPORATION
