Test Step 10.0-13.0

WARNING: This page does not describe the selected car, but rather 76 other vehicles, including the 2002 Mercedes-Benz SL600, 2002 Mercedes-Benz SL500, 2002 Mercedes-Benz E55, 2002 Mercedes-Benz E430, and 2002 Mercedes-Benz E320. However, it is still accessible from the selected car via links, so may be relevant.

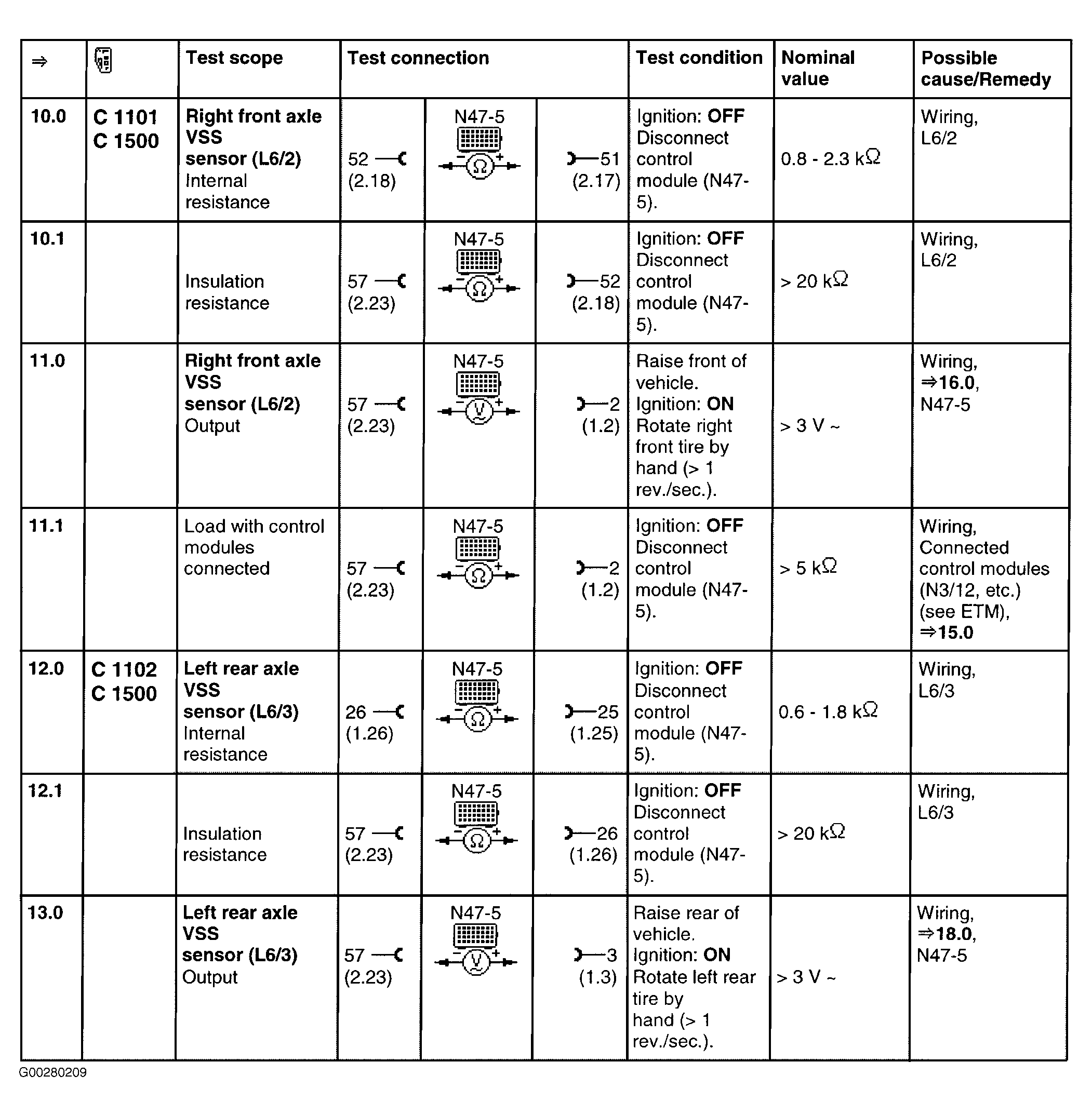

Fig 1: Identifying Brake Assist (BAS), Electronic Stability Program (ESP) & Speed Sensitive Power Steering (SPS) Electrical Tests Program (Steps 10.0-13.0)
G00280209Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
