Connector Identification

WARNING: This page does not describe the selected car, but rather 76 other vehicles, including the 2002 Mercedes-Benz SL600, 2002 Mercedes-Benz SL500, 2002 Mercedes-Benz E55, 2002 Mercedes-Benz E430, and 2002 Mercedes-Benz E320. However, it is still accessible from the selected car via links, so may be relevant.

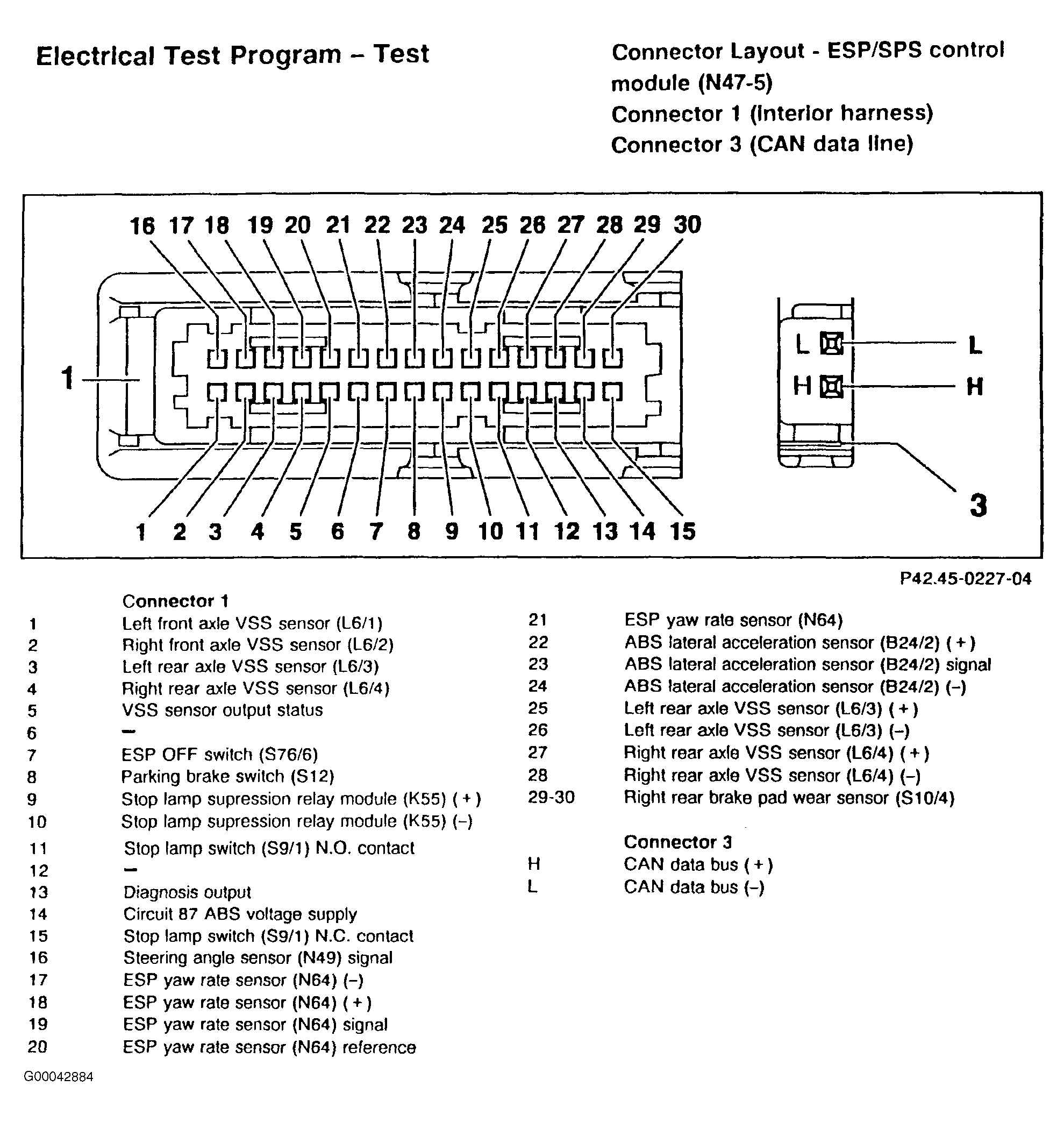

Fig 1: Identifying ESP/SPS Control Module (N4-5) Connector Terminal Pin Arrangement (1 Of 2)
G00042884Courtesy of DAIMLERCHRYSLER CORPORATION

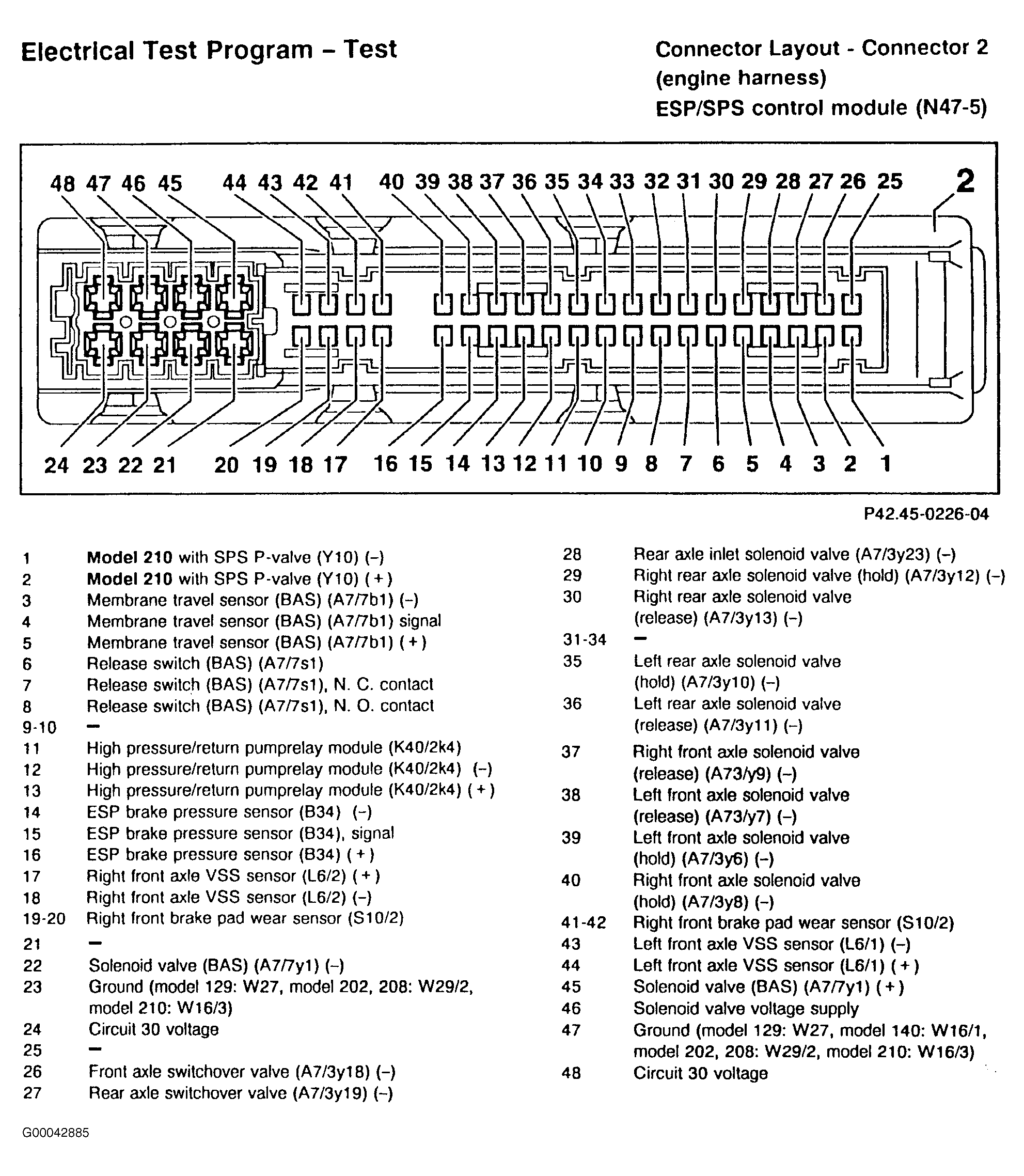

Fig 2: Identifying ESP/SPS Control Module (N4-5) Connector Terminal Pin Arrangement (2 Of 2)
G00042885Courtesy of DAIMLERCHRYSLER CORPORATION
