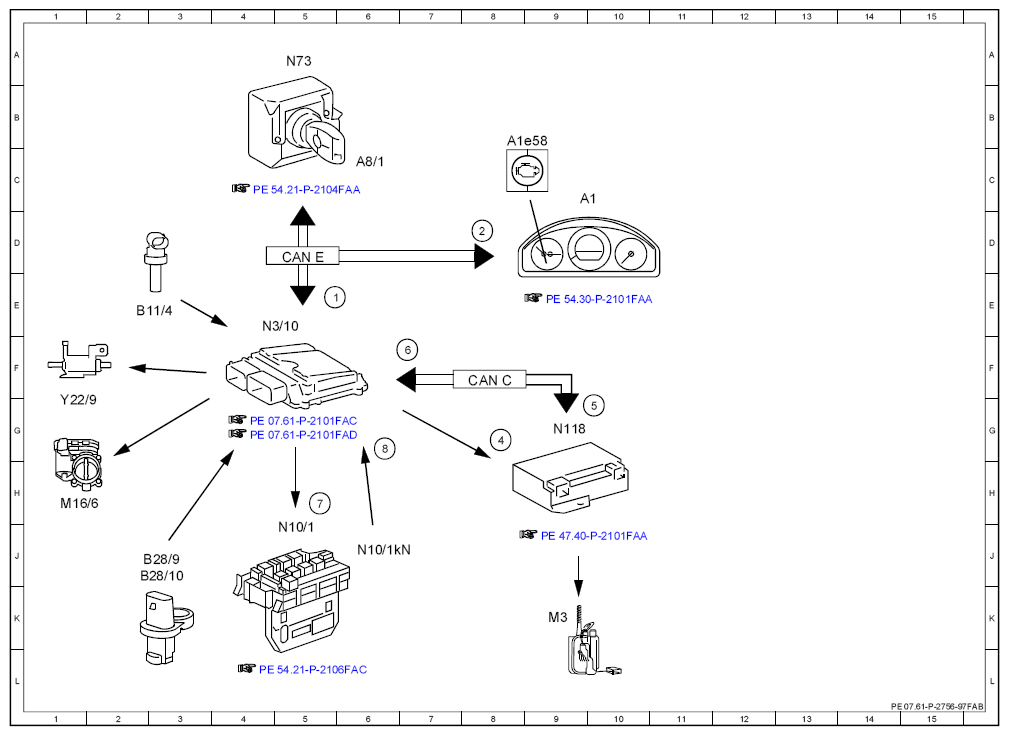

Electrical function schematic, ignition ON ME - PE07.61-P-2756-97FAB
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 50, status | 5E |
| 2 | Engine diagnosis indicator lamp, actuation | 8D |
| 4 | Fuel pump, request ON | 8G |
| 5 | Fuel pump, specified pressure request | 10G |
| 6 | Fuel pump control unit, status | 7F |
| 7 | Engine control, status ACTIVE | 5H |
| 8 | Circuit 87, status | 6G |
| A1 | Instrument cluster | 9C |
| A1e58 | Engine diagnosis indicator lamp | 8B |
| A8/1 | Transmitter key | 6C |
| B11/4 | Coolant temperature sensor | 2E |
| B28/10 | Right intake manifold tumble flap position sensor | 3J |
| B28/9 | Left intake manifold tumble flap position sensor | 3J |
| CAN C | Drive train CAN | 8F |
| CAN E | Chassis CAN | 5D |
| M16/6 | Throttle valve actuator | 1H |
| M3 | Fuel pump (FP) | 9K |
| N10/1 | Front SAM control unit with fuse and relay module | 5J |
| N10/1kN | Engine circuit 87 relay | 6J |
| N118 | Fuel pump control unit | 9G |
| N3/10 | ME-SFI [ME] control unit | 4E |
| N73 | Electronic ignition switch control unit | 5A |
| Y22/9 | Intake manifold tumble flap switchover valve | 1G |
