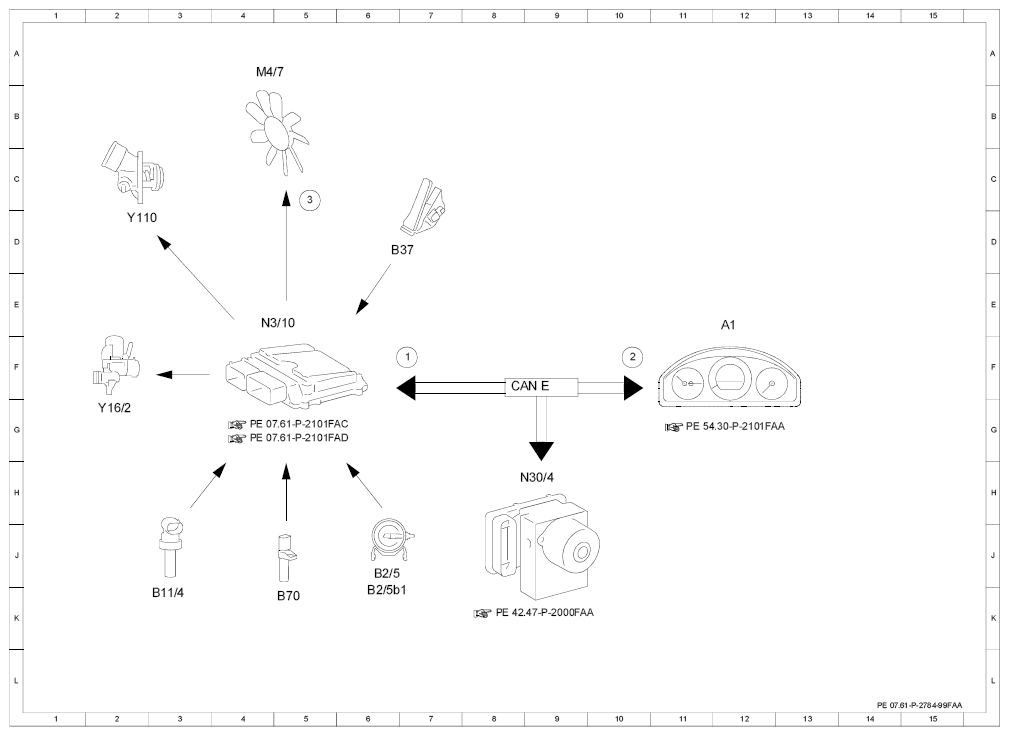

Electrical function schematic for engine coolant thermal management - PE07.61-P-2784-99FAA
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Vehicle speed, signal | 7F |
| 2 | Instrument cluster, message | 10F |
| 3 | Fan motor, specified rpm request | 5C |
| A1 | Instrument cluster | 12E |
| B11/4 | Coolant temperature sensor | 3K |
| B2/5 | Hot film mass air flow sensor | 6J |
| B2/5b1 | Intake air temperature sensor | 6K |
| B37 | Accelerator pedal sensor | 6D |
| B70 | Crankshaft Hall sensor | 5K |
| CAN E | Chassis CAN | 8F |
| M4/7 | Combustion engine and air conditioning with integrated control fan motor | 4A |
| N3/10 | ME-SFI [ME] control unit | 4E |
| N30/4 | Electronic Stability Program control unit | 8H |
| Y110 | Coolant thermostat | 2D |
| Y16/2 | Heating system shutoff valve | 2G |
