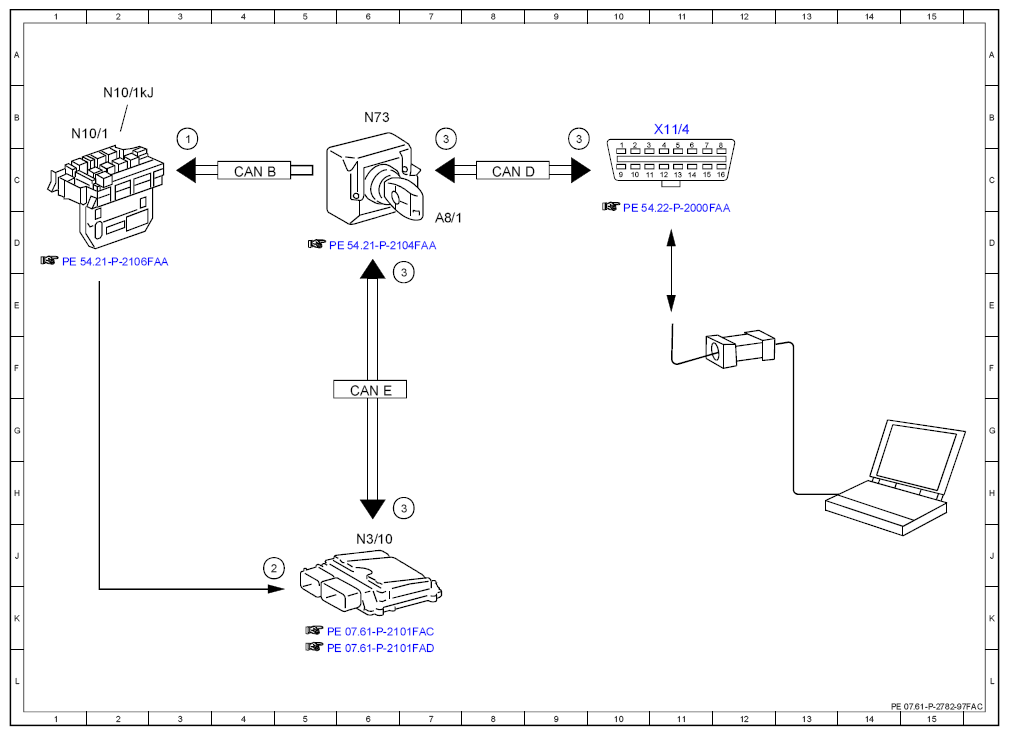

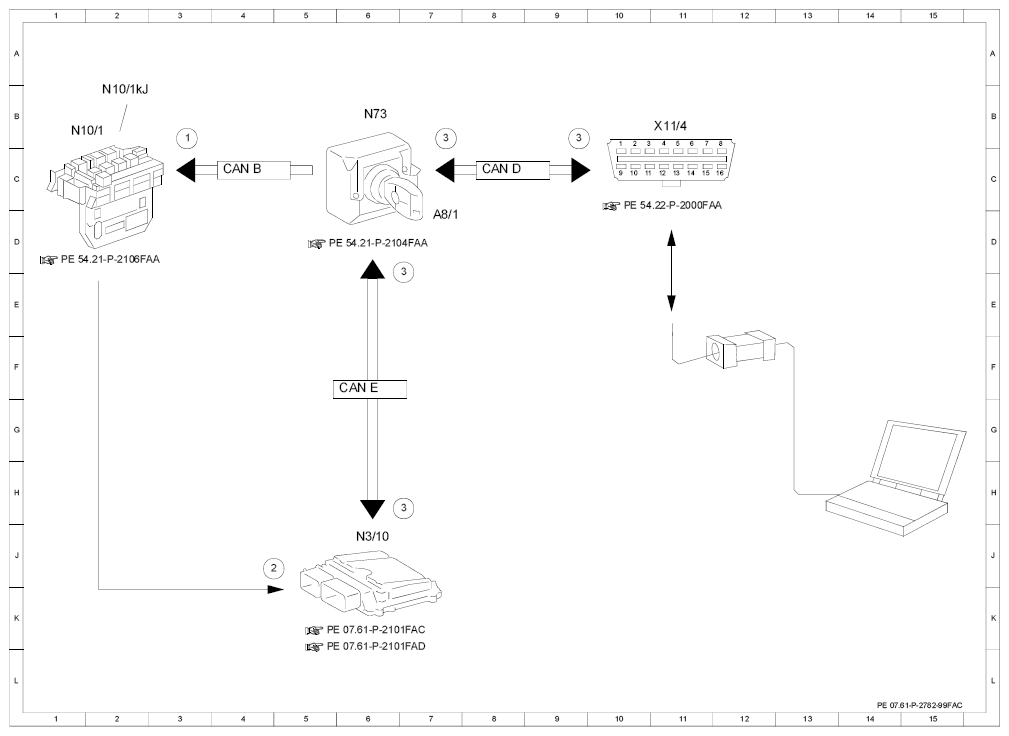

Electrical function schematic for correction programming - PE07.61-P-2782-97FAC
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status ON | 3B |
| 2 | Circuit 15, status | 4J |
| 3 | Correction programming, communication | 7H |
| 3 | Correction programming, communication | 7B |
| 3 | Correction programming, communication | 7E |
| 3 | Correction programming, communication | 9B |
| A8/1 | Transmitter key | 7D |
| CAN B | Interior CAN | 4C |
| CAN D | Diagnostic CAN | 8C |
| CAN E | Chassis CAN | 6F |
| N10/1 | Front SAM control unit with fuse and relay module | 1B |
| N10/1kJ | Circuit 15 relay | 2B |
| N3/10 | ME-SFI [ME] control unit | 6J |
| N73 | Electronic ignition switch control unit | 6B |
| X11/4 | Diagnostic connector | 11B |
