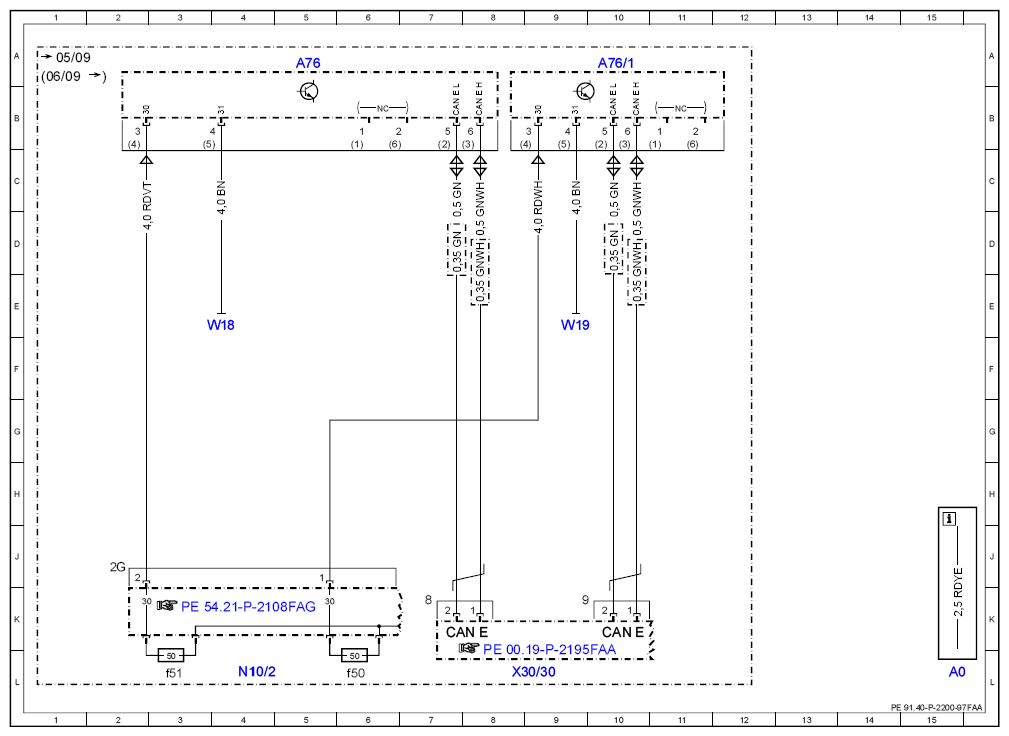

Wiring diagram, reversible emergency tensioning retractor - PE91.40-P-2200-97FAA
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A76 | Left front reversible emergency tensioning retractor | 5A |
| A76/1 | Right front reversible emergency tensioning retractor | 10A |
| CAN E | Chassis CAN | 7K |
| CAN E | Chassis CAN | 10K |
| N10/2 | Rear SAM control unit with fuse and relay module | 4L |
| N10/2f50 | Fuse 50 | 6L |
| N10/2f51 | Fuse 51 | 3L |
| W18 | Left front seat crossmember ground point | 4E |
| W19 | Right front seat crossmember ground point | 9E |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 8L |
