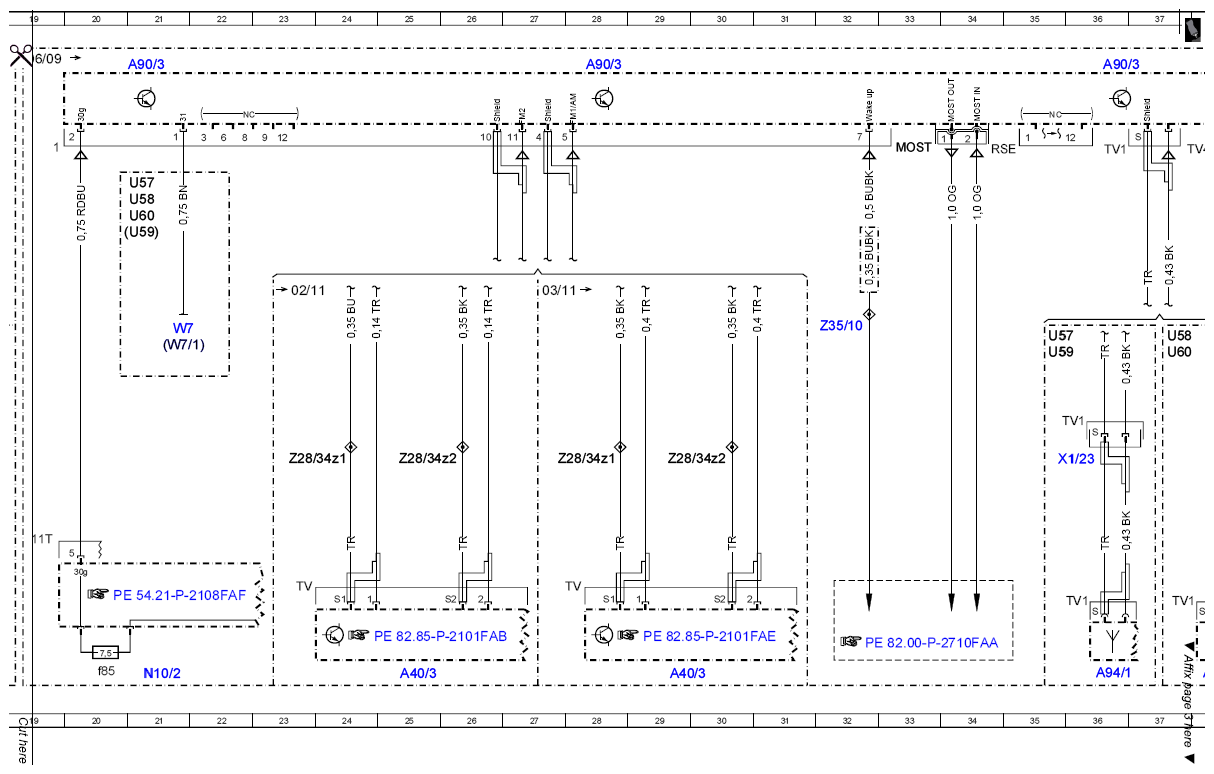

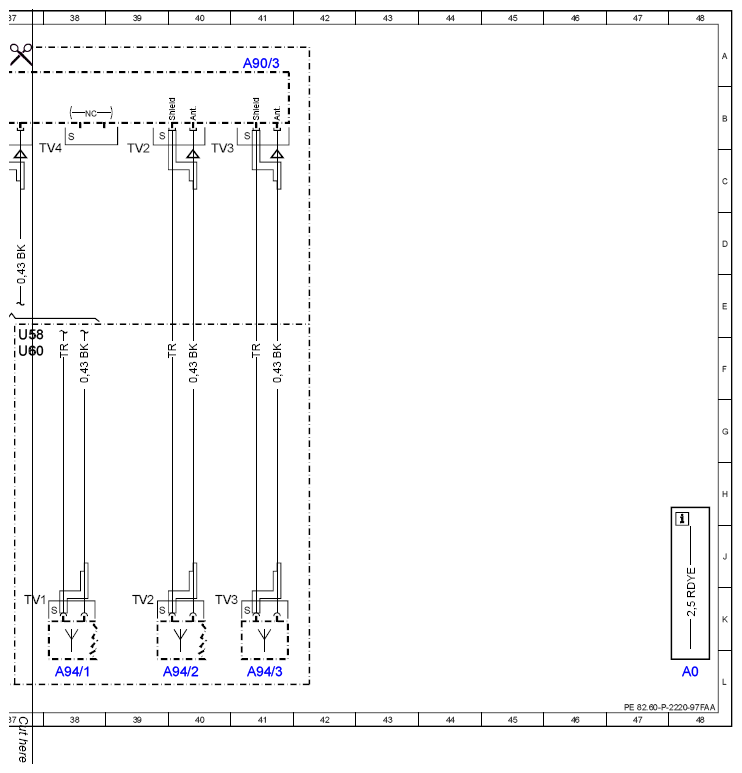

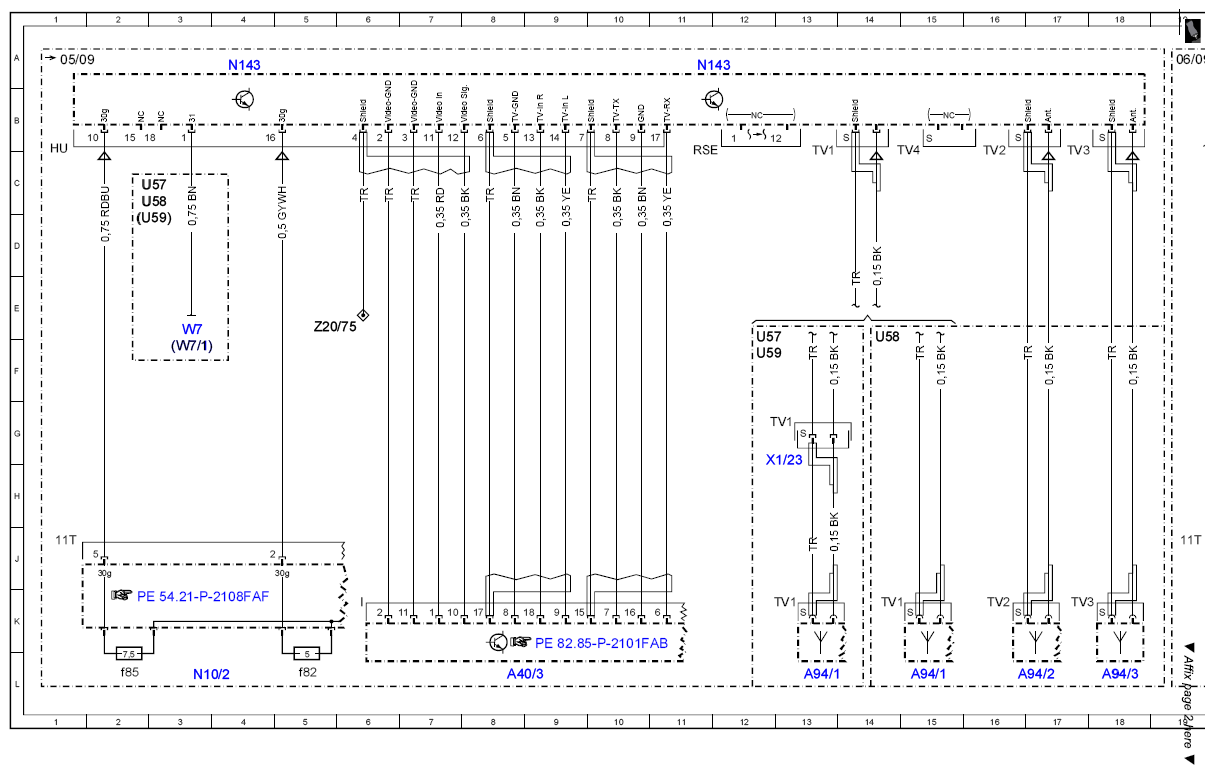

Wiring diagram of TV tuner - PE82.60-P-2220-97FAA
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, 2010 Mercedes-Benz C63, 2010 Mercedes-Benz C350, and 2009 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2 as of model year 2009
with CODE 498 (Japanese version)
with CODE 527 (COMAND APS with single DVD drive (with navigation)) /AEJ 08, control unit N143
MODEL 204.0/2 as of model year 2010 with CODE 498 (Japanese version) with COD
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 48L |
| A40/3 | COMAND control unit | 8L |
| A40/3 | COMAND control unit | 25L |
| A40/3 | COMAND control unit | 29L |
| A90/3 | TV digital tuner | 28A |
| A90/3 | TV digital tuner | 21A |
| A90/3 | TV digital tuner | 36A |
| A90/3 | TV digital tuner | 41A |
| A94/1 | TV 1 and DAB band III antenna | 13L |
| A94/1 | TV 1 and DAB band III antenna | 15L |
| A94/1 | TV 1 and DAB band III antenna | 36L |
| A94/1 | TV 1 and DAB band III antenna | 38L |
| A94/2 | TV 2 and KEYLESS GO antenna amplifier | 17L |
| A94/2 | TV 2 and KEYLESS GO antenna amplifier | 40L |
| A94/3 | TV 3 antenna amplifier | 18L |
| A94/3 | TV 3 antenna amplifier | 41L |
| MOST | Media Oriented System Transport | 33C |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2 | Rear SAM control unit with fuse and relay module | 21L |
| N10/2f82 | Fuse 82 | 5L |
| N10/2f85 | Fuse 85 | 2L |
| N10/2f85 | Fuse 85 | 20L |
| N143 | TV tuner control unit | 4A |
| N143 | TV tuner control unit | 11A |
| U57 | Valid for model 204.2 | 12F |
| U57 | Valid for model 204.2 | 2C |
| U57 | Valid for model 204.2 | 21C |
| U57 | Valid for model 204.2 | 35F |
| U58 | Valid for model 204.0 | 14F |
| U58 | Valid for model 204.0 | 2C |
| U58 | Valid for model 204.0 | 21C |
| U58 | Valid for model 204.0 | 37F |
| U59 | Valid for model 204.9 | 2D |
| U59 | Valid for model 204.9 | 12F |
| U59 | Valid for model 204.9 | 20D |
| U59 | Valid for model 204.9 | 35F |
| U60 | Valid for model 204.3 | 21D |
| U60 | Valid for model 204.3 | 37F |
| W7 | Right wheelhouse trunk ground point | 3E |
| W7 | Right wheelhouse trunk ground point | 21E |
| W7/1 | Right taillamp trunk ground point | 3F |
| W7/1 | Right taillamp trunk ground point | 21F |
| X1/23 | TV antenna 1 electrical connector | 13H |
| X1/23 | TV antenna 1 electrical connector | 36H |
| Z20/75 | Screening end connector sleeve | 5E |
| Z28/34z1 | TV tuner shielding connector sleeve | 24G |
| Z28/34z1 | TV tuner shielding connector sleeve | 28G |
| Z28/34z2 | TV tuner shielding connector sleeve | 25G |
| Z28/34z2 | TV tuner shielding connector sleeve | 30G |
| Z35/10 | MOST wake-up signal connector sleeve | 32E |
