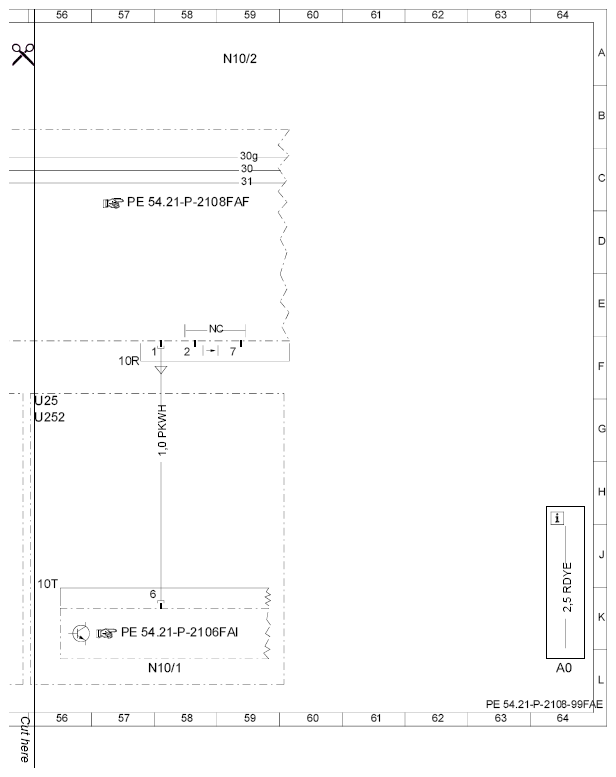

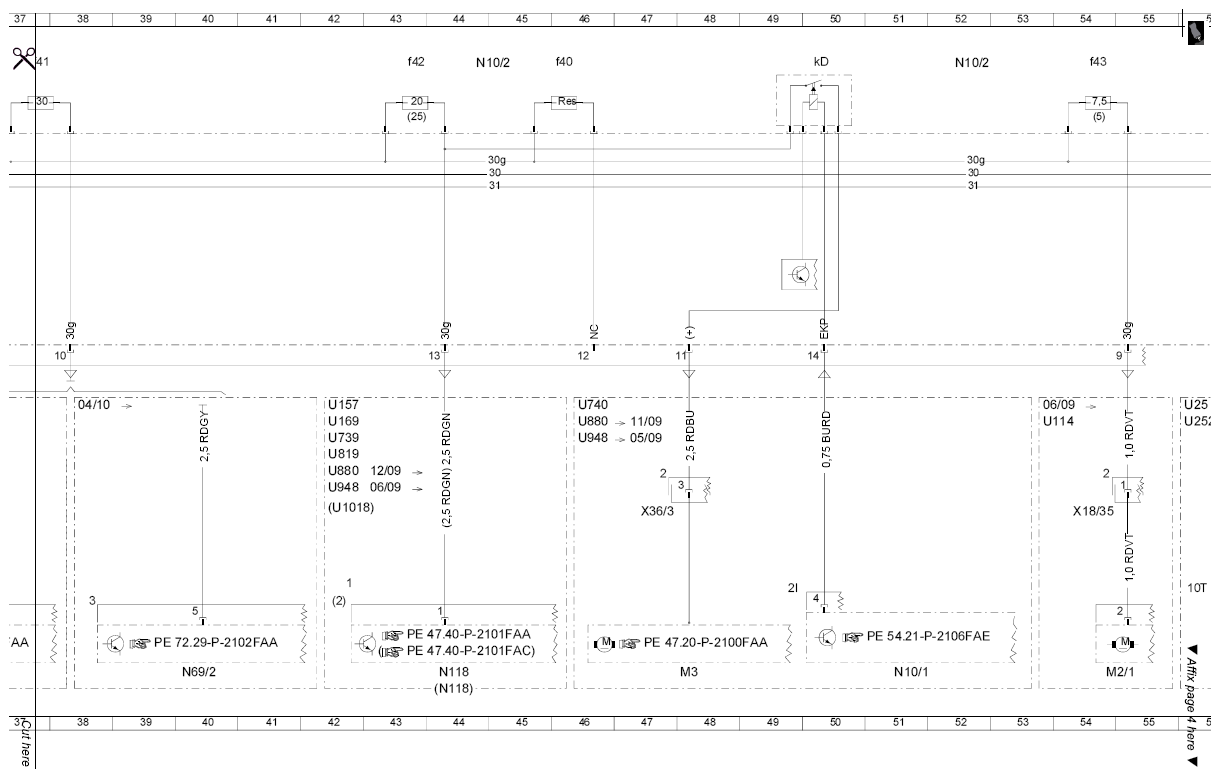

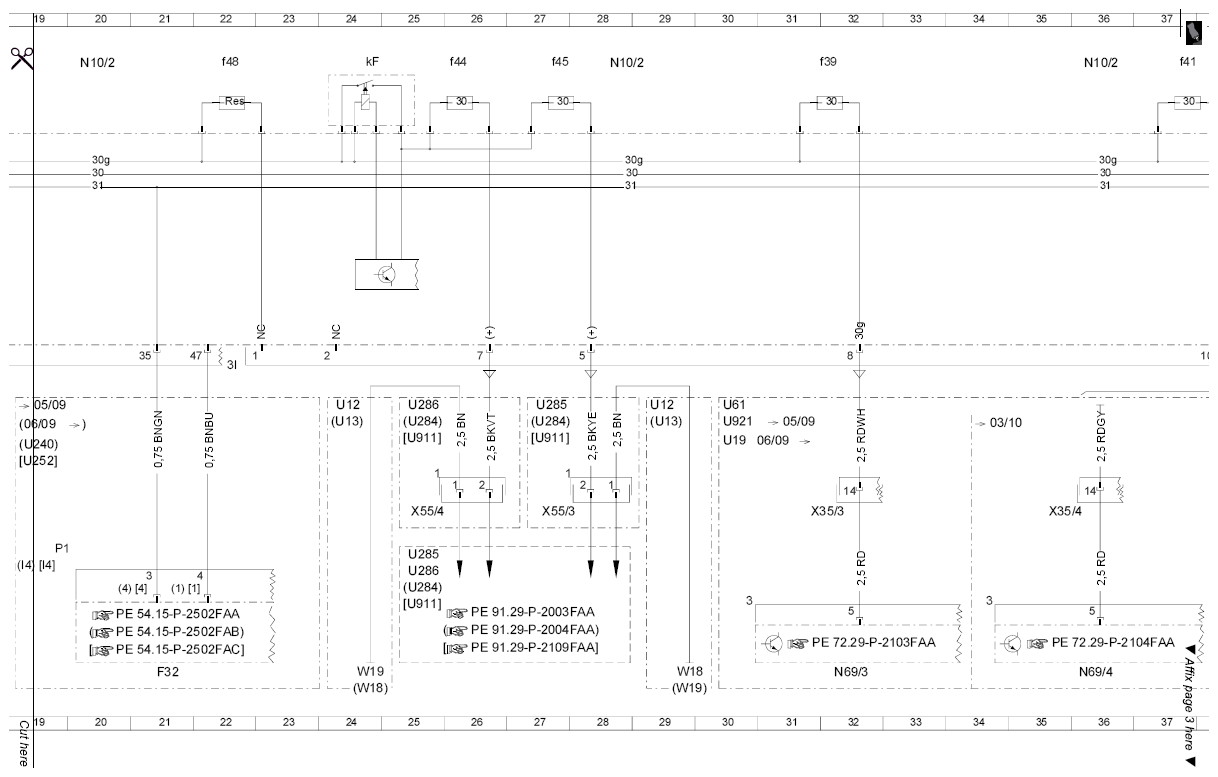

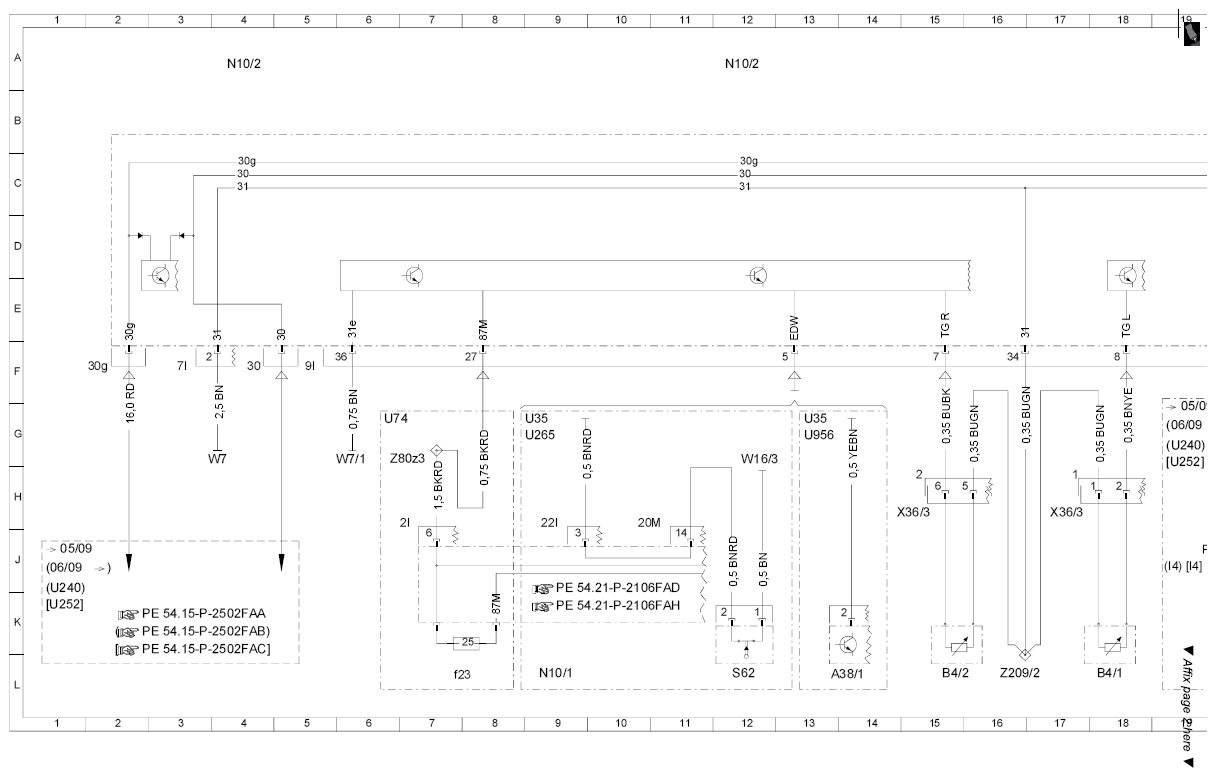

Wiring diagram for rear SAM control unit with fuse and relay module (N10/2) - PE54.21-P-2108-99FAE
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2/3/9 Sheet 5
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 56L |
| B4/1 | Left fuel level indicator sensor | 16L |
| B4/2 | Right fuel level indicator sensor | 14L |
| F32 | Front electrical prefuse box | 3L |
| F32 | Front electrical prefuse box | 19L |
| F32f106 | Prefuse 106 | 1K |
| F32f90 | Prefuse 90 | 2K |
| M3 | Fuel pump (FP) | 41L |
| N10/1 | Front SAM control module with fuse and relay module | 8L |
| N10/1 | Front SAM control module with fuse and relay module | 45L |
| N10/1f23 | Fuse 23 | 6L |
| N10/2 | Rear SAM control module with fuse and relay module | 4A |
| N10/2 | Rear SAM control module with fuse and relay module | 12A |
| N10/2 | Rear SAM control module with fuse and relay module | 19A |
| N10/2 | Rear SAM control module with fuse and relay module | 28A |
| N10/2 | Rear SAM control module with fuse and relay module | 36A |
| N10/2 | Rear SAM control module with fuse and relay module | 44A |
| N10/2f39 | Fuse 39 | 29A |
| N10/2f40 | Fuse 40 | 38A |
| N10/2f41 | Fuse 41 | 33A |
| N10/2f42 | Fuse 42 | 36A |
| N10/2f43 | Fuse 43 | 39A |
| N10/2f44 | Fuse 44 | 23A |
| N10/2f45 | Fuse 45 | 25A |
| N10/2f48 | Fuse 48 | 20A |
| N10/2kD | Fuel pump relay module | 43A |
| N10/2kF | Seat adjustment relay | 22A |
| N118 | Fuel pump control module | 37L |
| N3/10 | ME-SFI [ME] control module | 53L |
| N3/9 | CDI control module | 49L |
| N69/3 | Left rear door control unit | 29L |
| N69/4 | Right rear door control unit | 33L |
| S62 | Engine hood anti-theft alarm system switch | 11L |
| U12 | Valid for left-hand steering | 21G |
| U12 | Valid for left-hand steering | 26G |
| U13 | Valid for right-hand steering | 21G |
| U13 | Valid for right-hand steering | 27G |
| U284 | Valid for fully electric seat adjustment | 23K |
| U284 | Valid for fully electric seat adjustment | 23G |
| U284 | Valid for fully electric seat adjustment | 25G |
| U285 | Valid for partially electric driver seat adjustment | 23J |
| U285 | Valid for partially electric driver seat adjustment | 25G |
| U286 | Valid for partially electric front passenger seat adjustment | 23K |
| U286 | Valid for partially electric front passenger seat adjustment | 23G |
| U35 | Valid for anti-theft alarm system | 8G |
| U739 | Valid for gasoline engine 271 | 51G |
| U74 | Valid for diesel vehicles | 6G |
| U74 | Valid for diesel vehicles | 39G |
| U740 | Valid for diesel engine 646 | 47G |
| U75 | Valid for gasoline engines | 36G |
| U819 | Valid for gasoline engine 272 | 51G |
| U880 | Valid for diesel engine 642 | 47G |
| W16/3 | Left major assembly compartment ground point | 12H |
| W18 | Left front seat crossmember ground point | 22L |
| W18 | Left front seat crossmember ground point | 27L |
| W19 | Right front seat crossmember ground point | 22L |
| W19 | Right front seat crossmember ground point | 27L |
| W7 | Right wheelhouse trunk ground point | 3H |
| W7/1 | Right taillamp trunk ground point | 13L |
| X35/3 | Left rear door electrical connector | 29H |
| X35/4 | Right rear door electrical connector | 33H |
| X36/3 | Fuel pump harness electrical connector | 13H |
| X36/3 | Fuel pump harness electrical connector | 16H |
| X36/3 | Fuel pump harness electrical connector | 40H |
| X55/3 | Driver seat contacting strip | 25H |
| X55/4 | Front passenger seat contacting strip | 23H |
| Z209/2 | Fuel pump control unit connector sleeve | 15L |
| Z80 | Cross section reduction connector sleeve | 6H |
