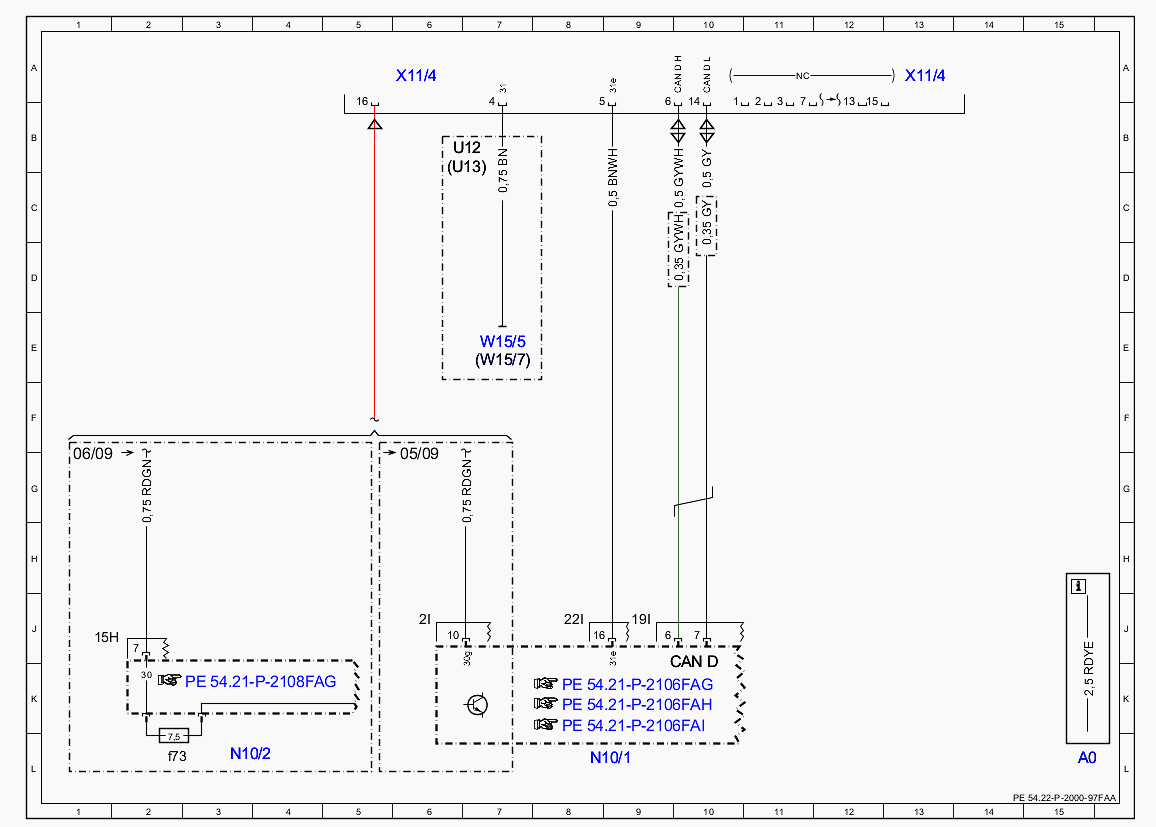

Wiring diagram for data link connector/diagnostic socket - PE54.22-P-2000-97FAA
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2/3/9 Test connector X11/4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| CAN D | Diagnostic CAN | 10K |
| N10/1 | Front SAM control unit with fuse and relay module | 8L |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2f73 | Fuse 73 | 2L |
| U12 | Valid for left-hand drive vehicles | 6B |
| W15/5 | Left front footwell ground point | 7E |
| W15/7 | Right front footwell ground point | 7E |
| X11/4 | Diagnostic connector | 6A |
| X11/4 | Diagnostic connector | 13A |
