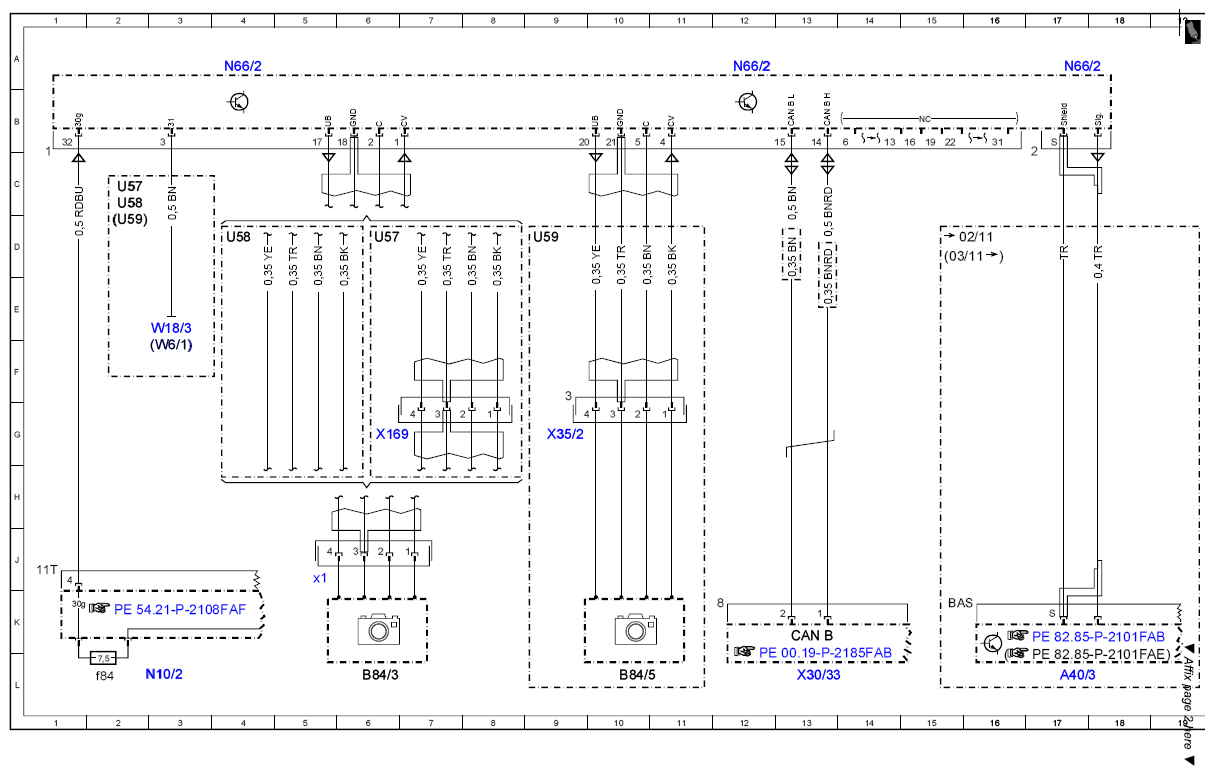

Wiring diagram for backup camera control unit - PE54.65-P-2102-97FAA
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2/3/9 with CODE 218 (Rear view camera) with CODE 498 (Japanese version) Control unit N66/2
| Code: | Designation: | Position: |
|---|---|---|

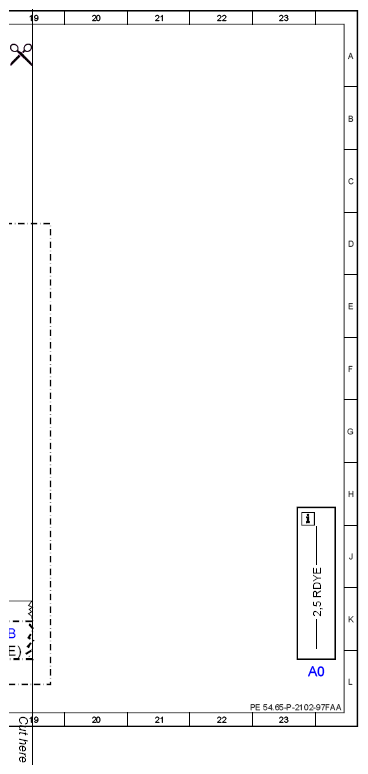

| A0 | Color code key | 23L |
| A40/3 | COMAND control unit | 17L |
| B84/3 | Backup camera | 6L |
| B84/3x1 | Backup camera electrical connector | 5J |
| B84/5 | Passenger-side outside mirror camera | 10L |
| CAN B | Interior CAN | 13K |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2f84 | Fuse 84 | 2L |
| N66/2 | Backup camera control unit | 12A |
| N66/2 | Backup camera control unit | 4A |
| N66/2 | Backup camera control unit | 17A |
| U57 | Valid for model 204.2 | 2C |
| U57 | Valid for model 204.2 | 6D |
| U58 | Valid for model 204.0 | 2C |
| U58 | Valid for model 204.0 | 4D |
| U59 | Valid for model 204.9 | 2D |
| U59 | Valid for model 204.9 | 9D |
| W18/3 | Left front seat crossmember ground point 2 | 3E |
| W6/1 | Left taillamp trunk ground point | 3F |
| X169 | Backup camera electrical connector | 6G |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 13L |
| X35/2 | Right front door electrical connector | 9G |
