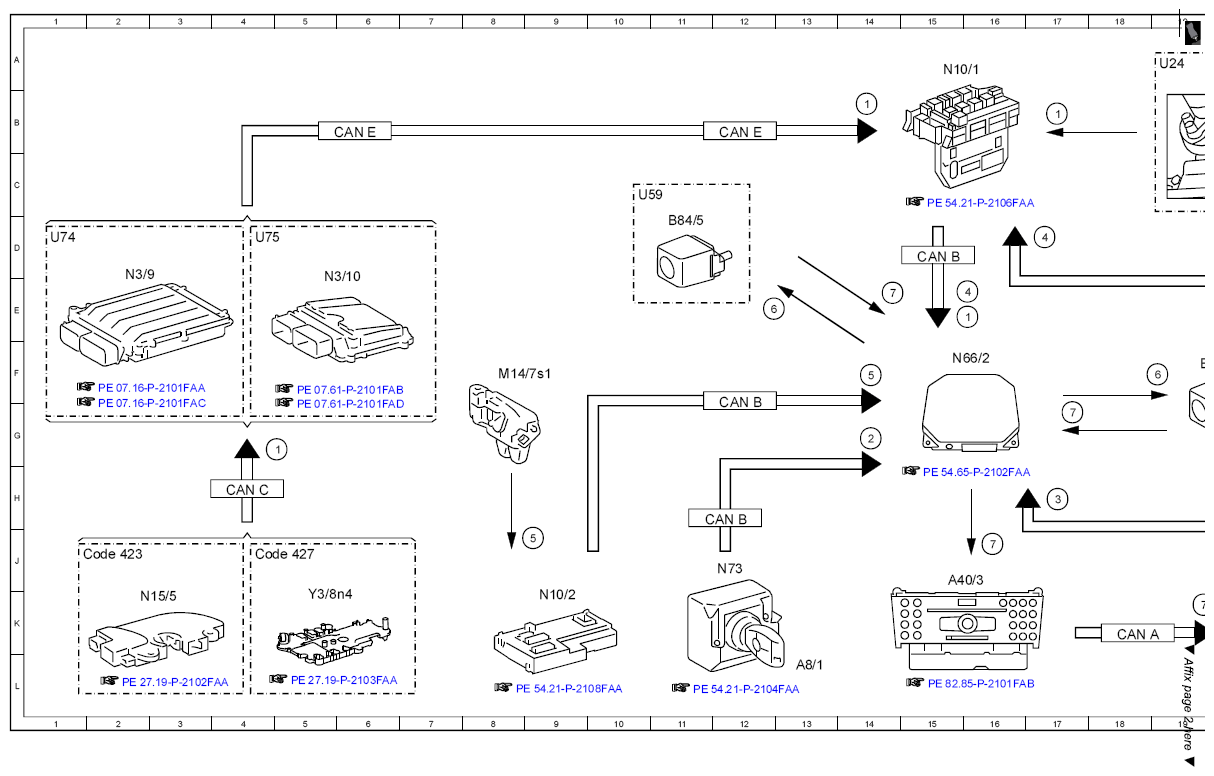

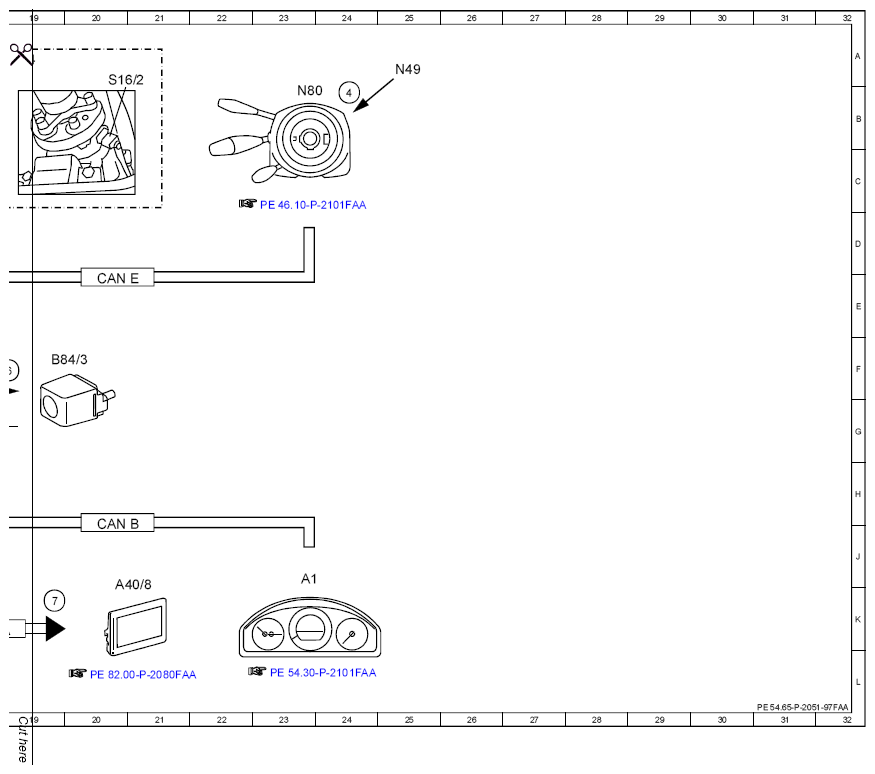

Electrical function schematic, reversing camera - PE54.65-P-2051-97FAA
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0 /2 with CODE (218) Backup camera with CODE (498) Japan version as of Model Year 2009 /AEJ 08
MODEL 204.3 with CODE (218) Backup camera with CODE (498) Japan version
MODEL 204.9 up to 31.5.12 with CODE (218) Backup camera
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Reverse gear, status | 5G |
| 1 | Reverse gear, status | 16E |
| 1 | Reverse gear, status | 14B |
| 1 | Reverse gear, status | 17B |
| 2 | Circuit 15, status | 14G |
| 3 | Backup camera function, status | 17H |
| 4 | Steering angle sensor, signal | 16E |
| 4 | Steering angle sensor, signal | 17D |
| 4 | Steering angle sensor, signal | 24B |
| 5 | Trunk lid rotary tumbler switch, status | 14F |
| 5 | Trunk lid rotary tumbler switch, status | 9J |
| 6 | Backup camera, actuation | 12E |
| 6 | Backup camera, actuation | 19F |
| 7 | Backup camera, signal | 16J |
| 7 | Backup camera, signal | 14E |
| 7 | Backup camera, signal | 19K |
| 7 | Backup camera, signal | 17G |
| A1 | Instrument cluster | 23J |
| A40/3 | COMAND control unit | 15J |
| A40/8 | Audio/COMAND display | 20K |
| A8/1 | Transmitter key | 13L |
| B84/3 | Backup camera | 19F |
| B84/5 | Passenger-side outside mirror camera | 11D |
| CAN A | Telematics CAN | 18K |
| CAN B | Interior CAN | 12H |
| CAN B | Interior CAN | 12G |
| CAN B | Interior CAN | 20J |
| CAN B | Interior CAN | 15D |
| CAN C | Drive train CAN | 4H |
| CAN E | Chassis CAN | 6B |
| CAN E | Chassis CAN | 12B |
| CAN E | Chassis CAN | 21E |
| Code 423 | 5-speed automatic transmission | 2J |
| Code 427 | 7-speed automatic transmission | 4J |
| M14/7s1 | Trunk lid rotary tumbler switch | 8F |
| N10/1 | Front SAM control unit with fuse and relay module | 15A |
| N10/2 | Rear SAM control unit with fuse and relay module | 9K |
| N15/5 | Electronic selector lever module control unit | 2K |
| N3/10 | ME-SFI [ME] control unit | 5E |
| N3/9 | CDI control unit | 2E |
| N49 | Steering angle sensor | 25A |
| N66/2 | Backup camera control unit | 15F |
| N73 | Electronic ignition switch control unit | 12J |
| N80 | Steering column module control unit | 23B |
| S16/2 | Backup lamp switch | 20A |
| U24 | Valid for manual transmission | 19A |
| U59 | Valid for model 204.9 | 10C |
| U74 | Valid for diesel engines | 1D |
| U75 | Valid for gasoline engines | 4D |
| Y3/8n4 | Fully integrated transmission control unit | 5K |
