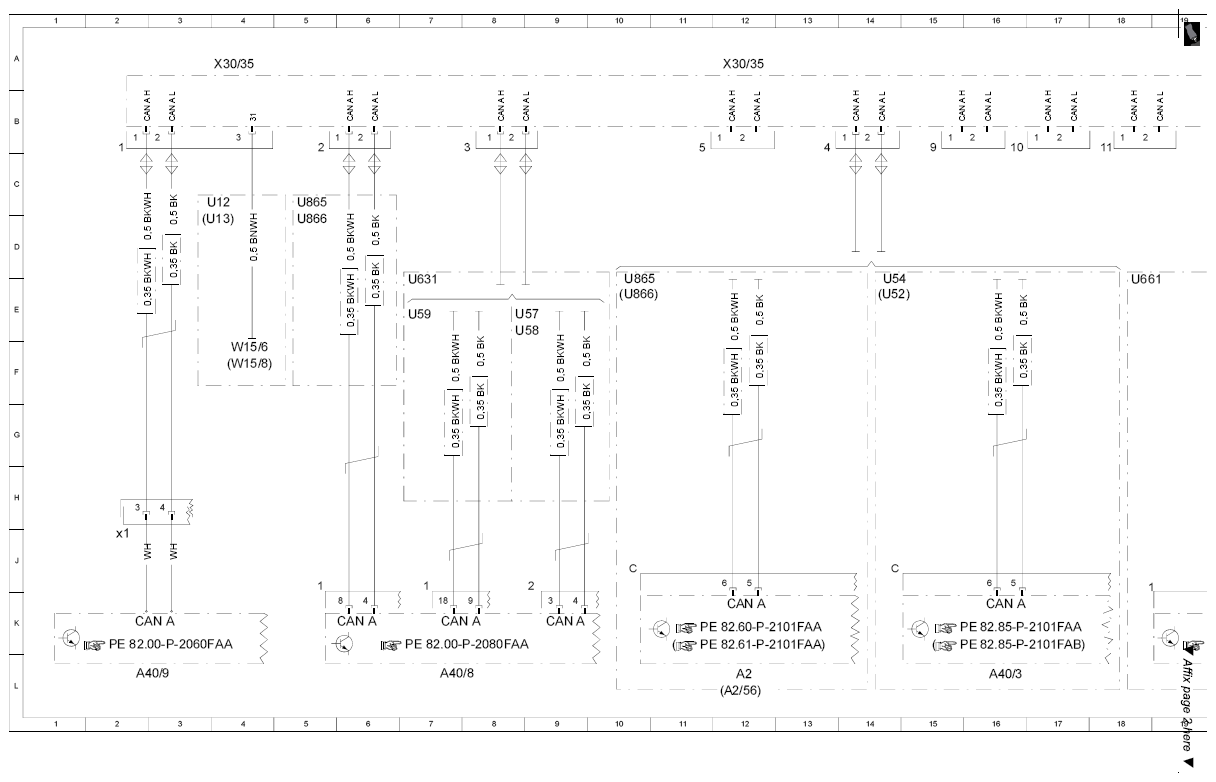

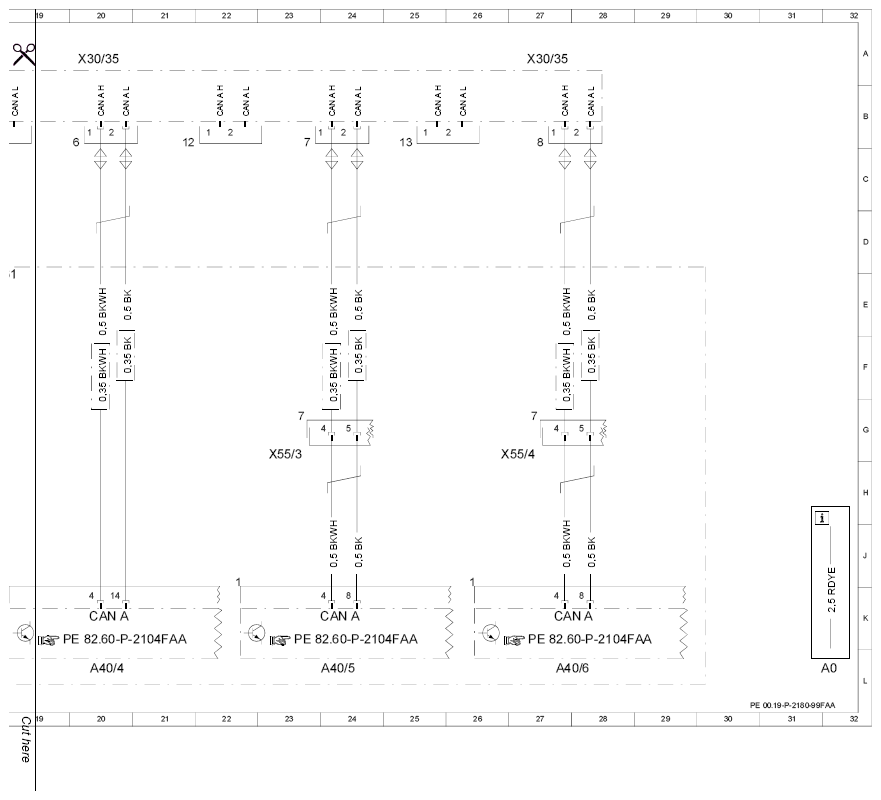

Wiring diagram of telematics CAN - PE00.19-P-2180-99FAA
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 23L |
| A2 | Radio | 10L |
| A2/56 | Radio with auto pilot system | 10L |
| A40/3 | COMAND control unit | 14L |
| A40/8 | Audio/COMAND display | 6L |
| A40/9 | Audio/COMAND control panel | 2L |
| CAN A | Telematics CAN | 2K |
| CAN A | Telematics CAN | 6K |
| CAN A | Telematics CAN | 10K |
| CAN A | Telematics CAN | 14K |
| U12 | Valid for left-hand steering | 3C |
| U13 | Valid for right-hand steering | 3C |
| U52 | Valid for Japan | 13F |
| U54 | Valid for all except Japan | 13E |
| U631 | Valid for COMAND | 8E |
| U865 | Valid for Audio 20 radio | 5E |
| U865 | Valid for Audio 20 radio | 6E |
| U865 | Valid for Audio 20 radio | 9E |
| U866 | Valid for Audio 50 | 5E |
| U866 | Valid for Audio 50 | 6E |
| U866 | Valid for Audio 50 | 9F |
| W15/6 | Ground point (right front footwell CAN) | 4E |
| W15/8 | Ground point (right front footwell CAN) | 4F |
| X30/35 | Telematics CAN voltage distributor electrical connector | 4A |
| X30/35 | Telematics CAN voltage distributor electrical connector | 12A |
| X30/35 | Telematics CAN voltage distributor electrical connector | 20A |
