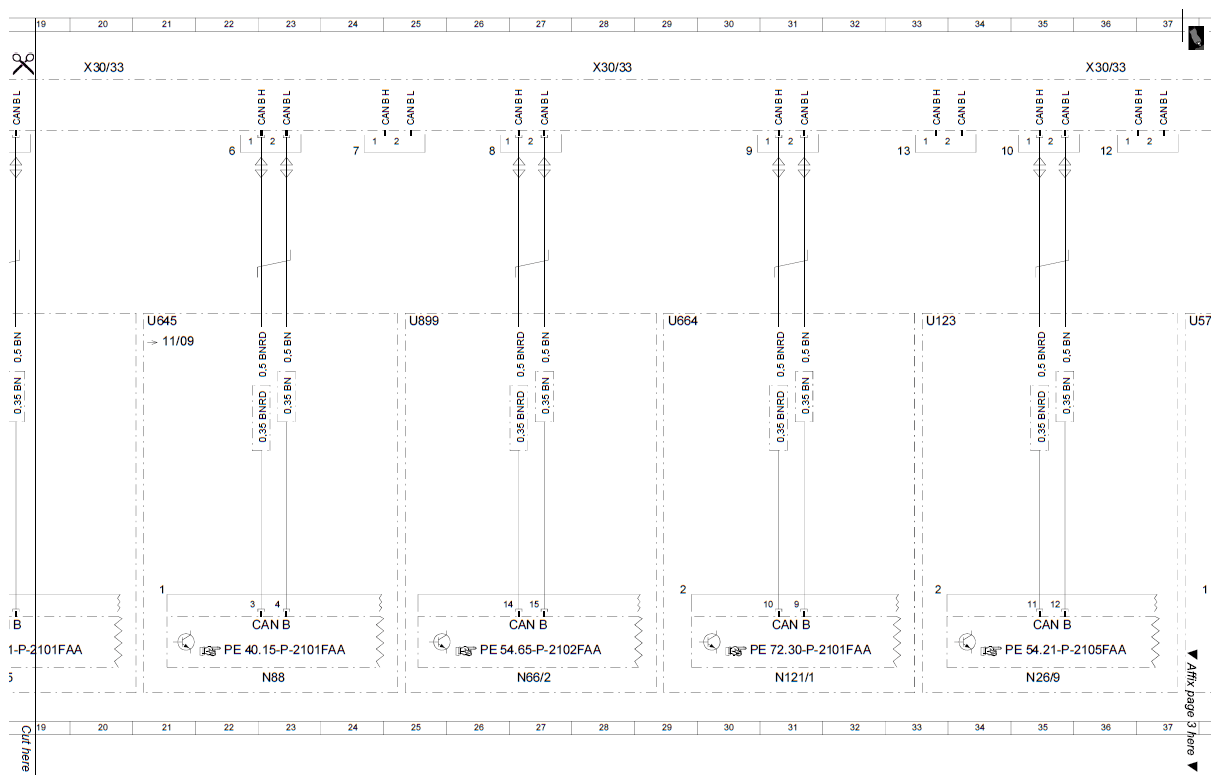

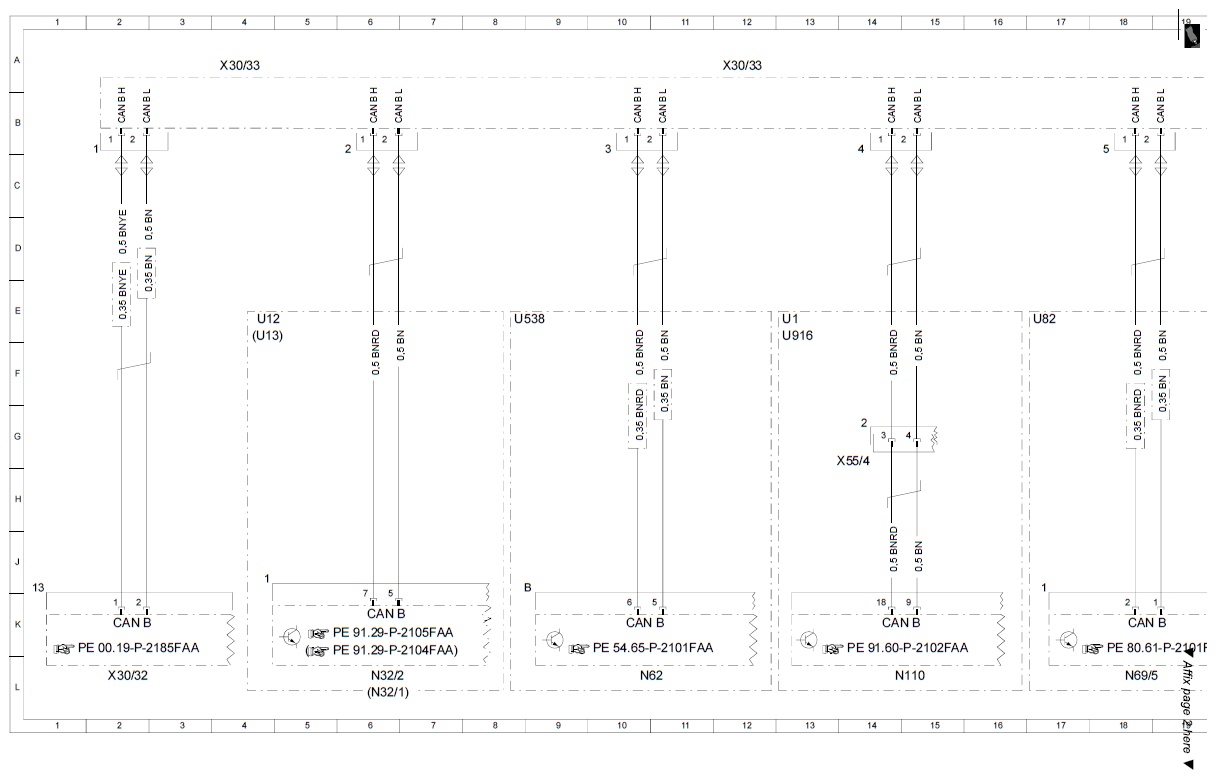

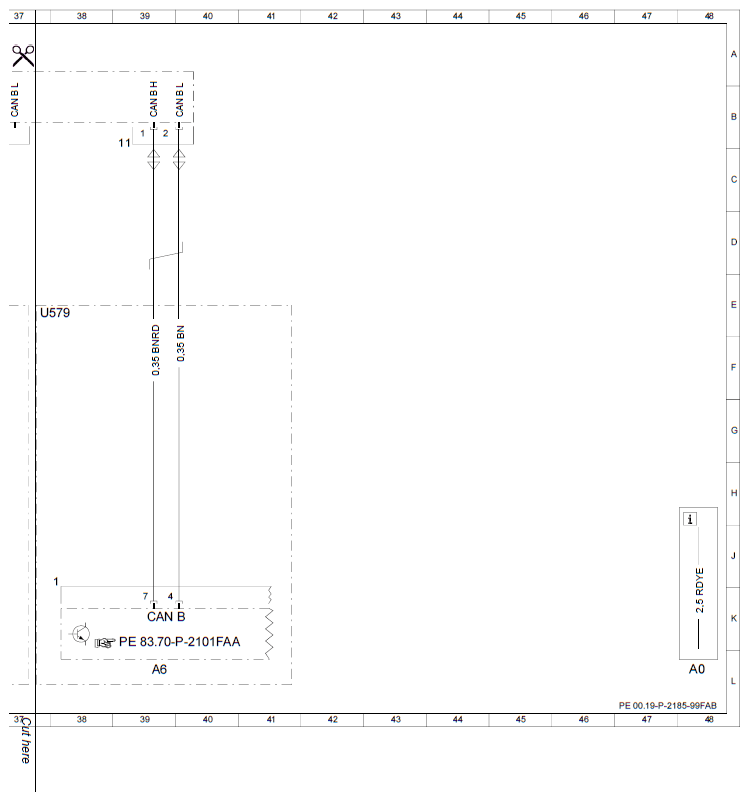

Wiring diagram of interior CAN - PE00.19-P-2185-99FAB
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 40L |
| CAN B | Interior CAN | 2K |
| CAN B | Interior CAN | 6K |
| CAN B | Interior CAN | 10K |
| CAN B | Interior CAN | 14K |
| CAN B | Interior CAN | 18K |
| CAN B | Interior CAN | 22K |
| CAN B | Interior CAN | 26K |
| CAN B | Interior CAN | 30K |
| CAN B | Interior CAN | 34K |
| N110 | Weight Sensing System (WSS) control unit | 14L |
| N121/1 | Tailgate control unit | 30L |
| N26/9 | Special-purpose vehicle multifunction control unit | 34L |
| N32/1 | Driver seat control unit | 6L |
| N32/2 | Front passenger seat control unit | 6L |
| N62 | PARKTRONIC control unit | 10L |
| N66/2 | Reverse camera control module | 27L |
| N69/5 | KEYLESS GO control unit | 18L |
| N88 | Tire pressure monitor control unit | 22L |
| U1 | Valid for USA | 13E |
| U12 | Valid for left-hand steering | 4E |
| U123 | Valid for taxi electrical system | 33E |
| U13 | Valid for right-hand steering | 4F |
| U538 | Valid for PARKTRONIC | 8E |
| U645 | Valid for tire pressure monitor | 21E |
| U82 | Valid for KEYLESS GO | 17E |
| U899 | Valid for backup camera | 25E |
| U916 | Valid for weight sensing system (WSS) | 13F |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 2L |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 4A |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 12A |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 20A |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 28A |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 36A |
| X55/4 | Front passenger seat contacting strip | 13H |
