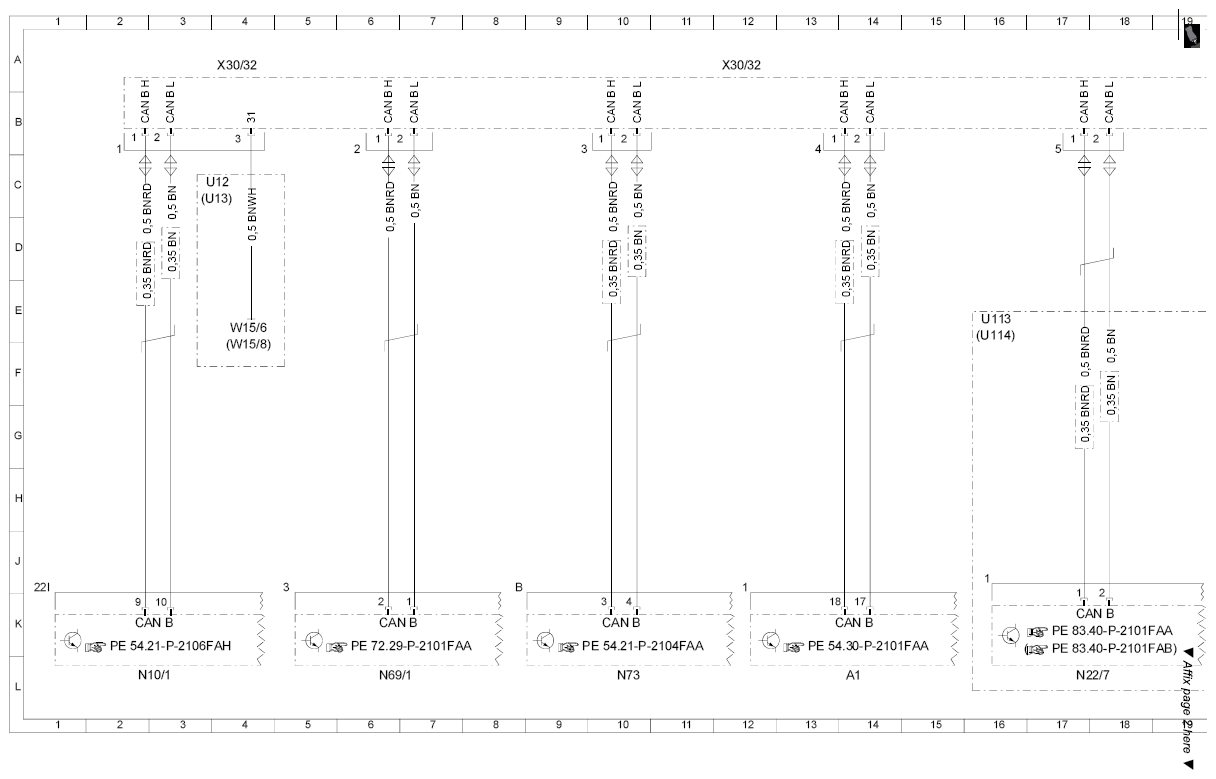

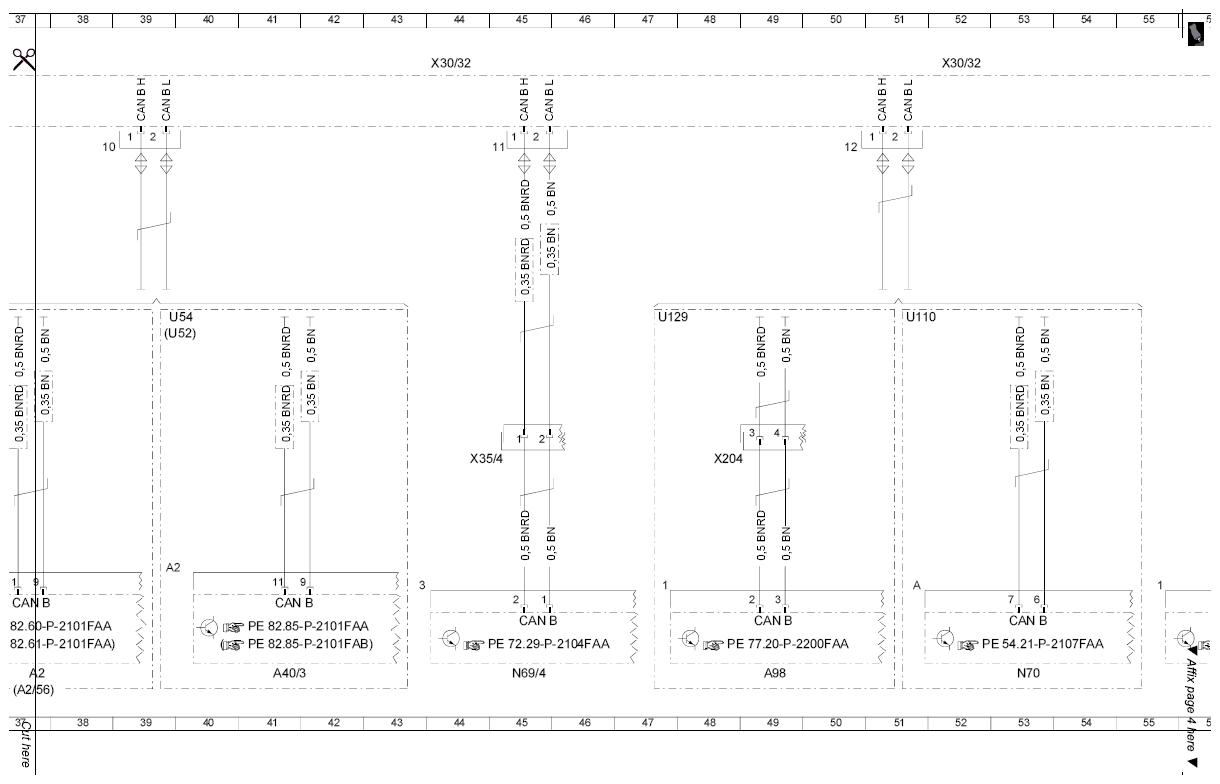

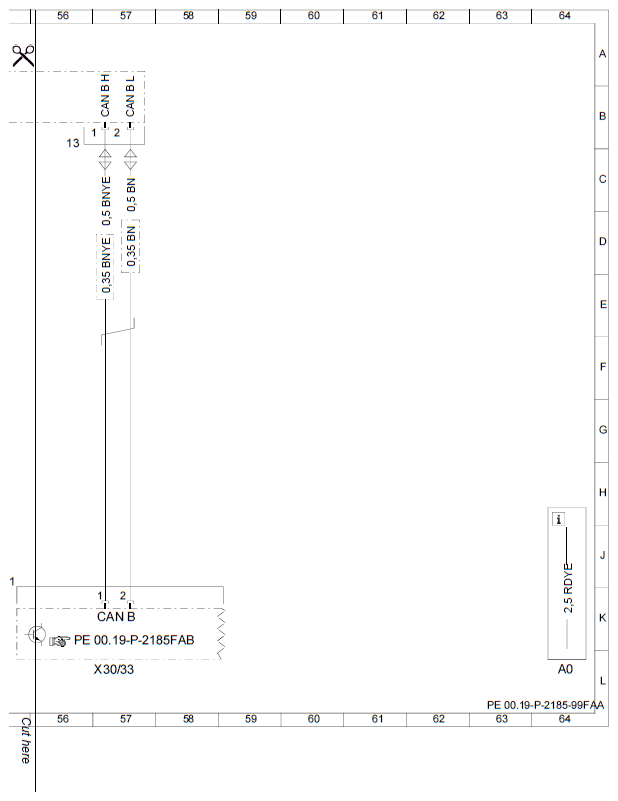

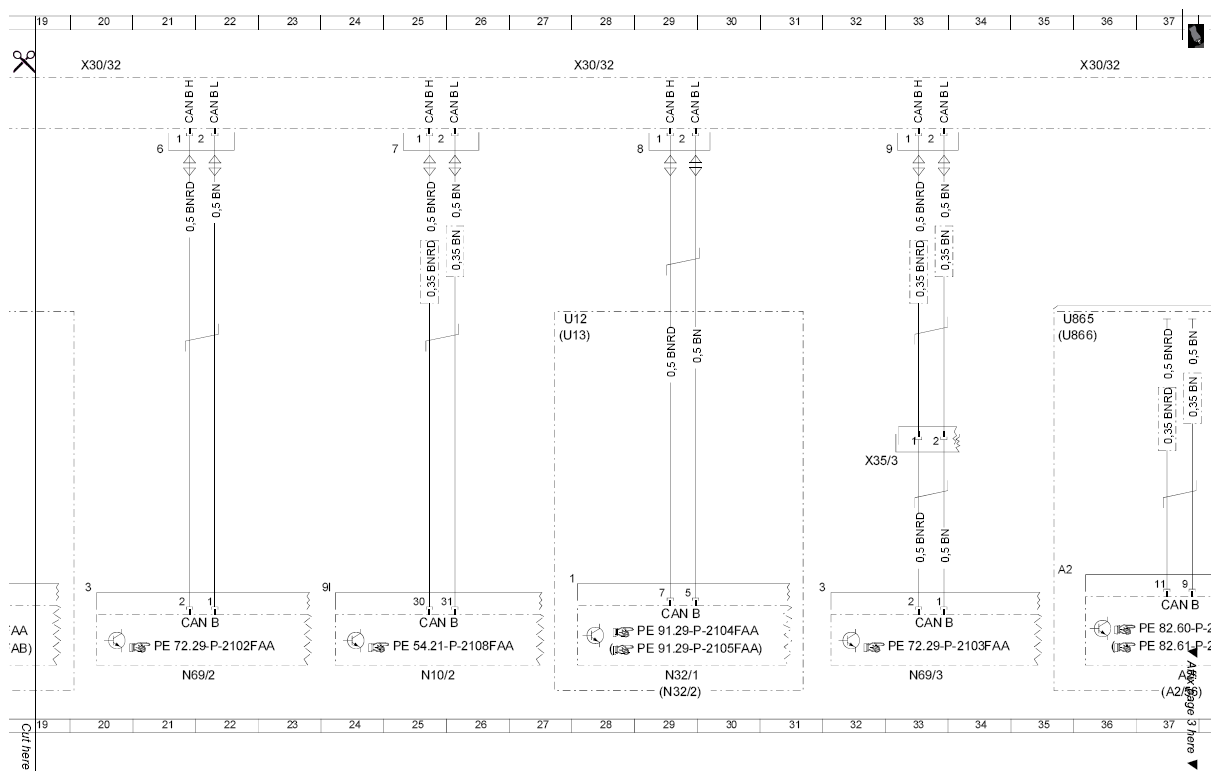

Wiring diagram of interior CAN - PE00.19-P-2185-99FAA
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 64L |
| A1 | Instrument cluster | 14L |
| A2 | Radio | 37L |
| A2/56 | Radio with auto pilot system | 37L |
| A40/3 | COMAND control unit | 41L |
| A98 | Panoramic sliding roof control module | 49L |
| CAN B | Interior CAN | 2K |
| CAN B | Interior CAN | 6K |
| CAN B | Interior CAN | 10K |
| CAN B | Interior CAN | 13K |
| CAN B | Interior CAN | 17K |
| CAN B | Interior CAN | 21K |
| CAN B | Interior CAN | 25K |
| CAN B | Interior CAN | 29K |
| CAN B | Interior CAN | 33K |
| CAN B | Interior CAN | 37K |
| CAN B | Interior CAN | 41K |
| CAN B | Interior CAN | 45K |
| CAN B | Interior CAN | 49K |
| CAN B | Interior CAN | 53K |
| CAN B | Interior CAN | 56K |
| N10/1 | Front SAM control module with fuse and relay module | 2L |
| N10/2 | Rear SAM control module with fuse and relay module | 25L |
| N22/7 | Automatic air conditioning control and operating unit | 17L |
| N32/1 | Driver seat control unit | 29L |
| N32/2 | Front passenger seat control unit | 29L |
| N69/1 | Left front door control unit | 6L |
| N69/2 | Right front door control unit | 21L |
| N69/3 | Left rear door control unit | 33L |
| N69/4 | Right rear door control unit | 45L |
| N70 | Overhead control panel control module | 53L |
| N73 | Electronic ignition switch control unit | 10L |
| U110 | Valid for overhead control panel with CAN | 51E |
| U113 | Valid for 2-zone THERMATIC | 16E |
| U114 | Valid for 3-zone THERMOTRONIC | 16F |
| U12 | Valid for left-hand steering | 3C |
| U12 | Valid for left-hand steering | 27E |
| U129 | Valid for panoramic sliding roof | 47E |
| U13 | Valid for right-hand steering | 3C |
| U13 | Valid for right-hand steering | 27F |
| U52 | Valid for Japan | 39F |
| U54 | Valid for all except Japan | 39E |
| U865 | Valid for Audio 20 radio | 35E |
| U866 | Valid for Audio 50 | 35F |
| W15/6 | Ground point (right front footwell CAN) | 4E |
| W15/8 | Ground point (right front footwell CAN) | 4F |
| X204 | Panoramic sliding roof electrical connector | 48H |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 4A |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 12A |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 20A |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 27A |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 36A |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 44A |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 52A |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 56L |
| X35/3 | Left rear door electrical connector | 32E |
| X35/4 | Right rear door electrical connector | 44E |
