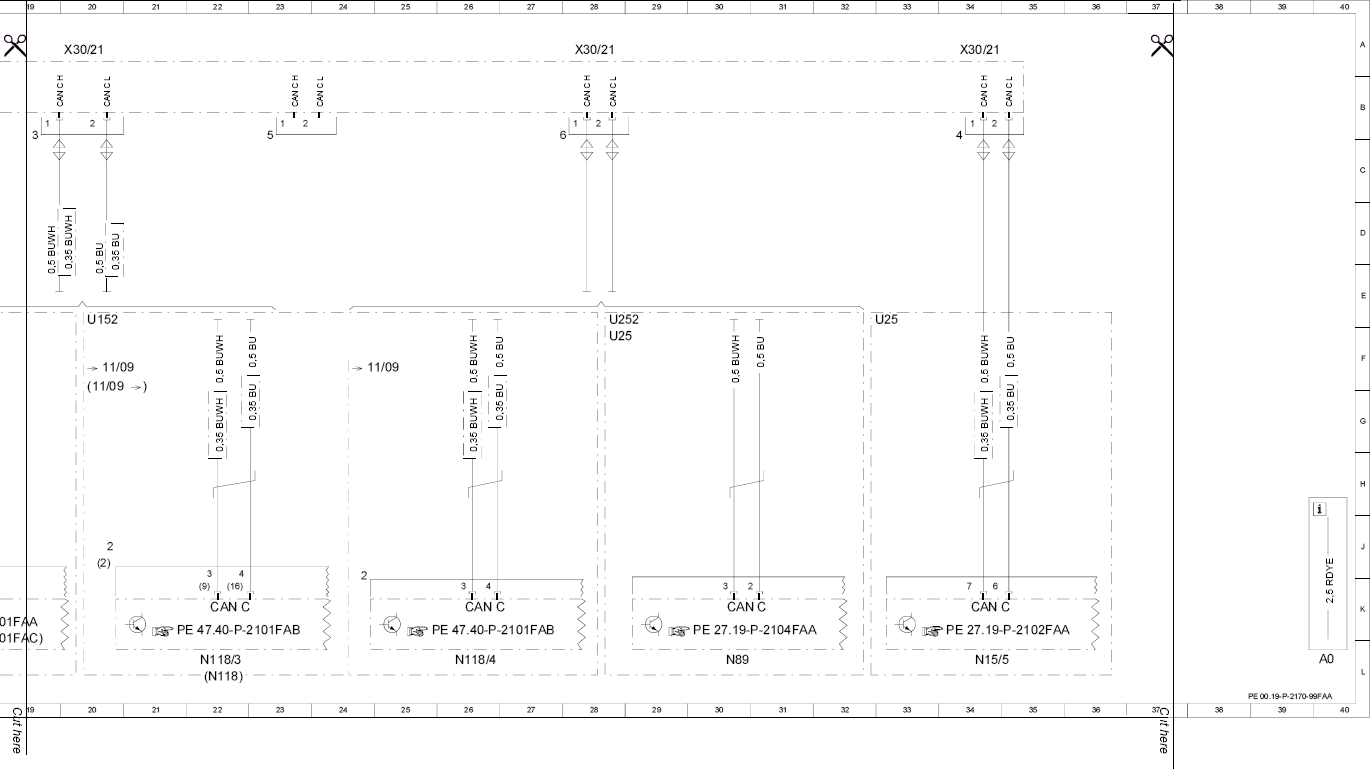

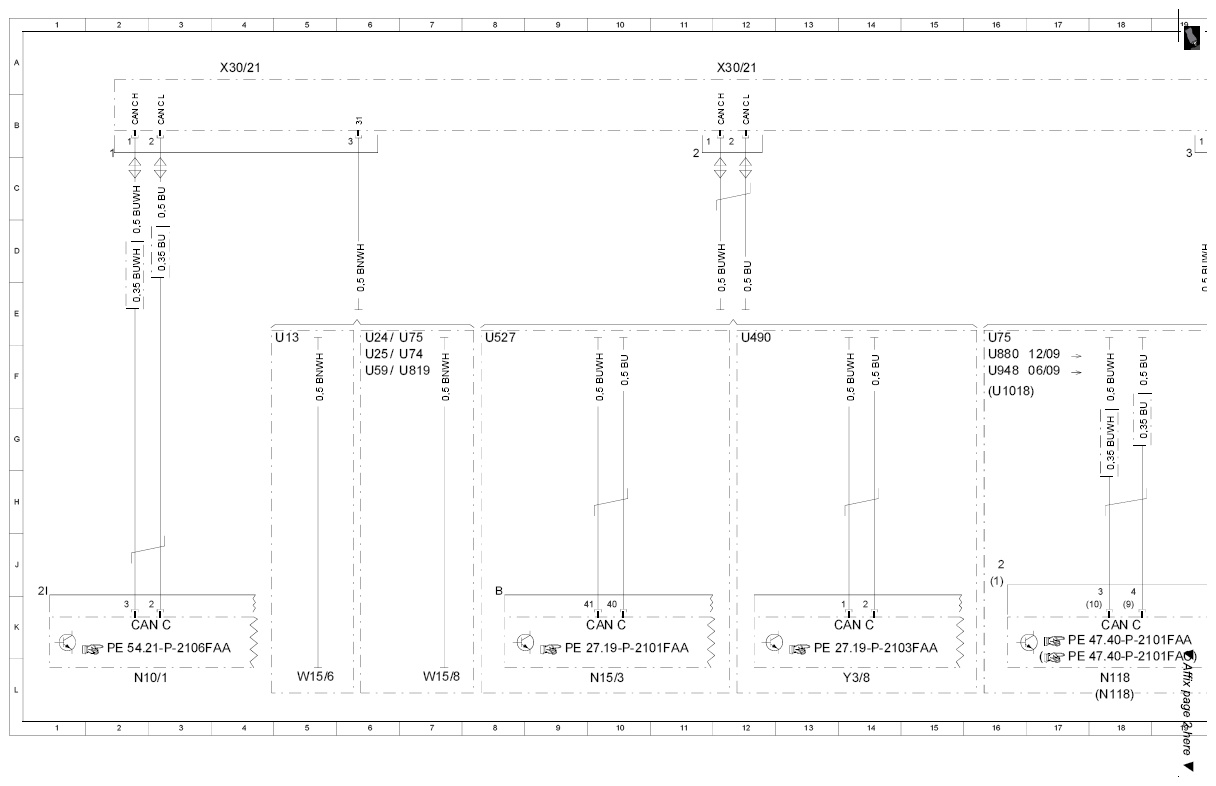

Wiring diagram of drive train CAN - PE00.19-P-2170-99FAA
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 23A |
| CAN C | Drive train CAN | 2K |
| CAN C | Drive train CAN | 9K |
| CAN C | Drive train CAN | 13K |
| CAN C | Drive train CAN | 17K |
| CAN C | Drive train CAN | 21K |
| N10/1 | Front SAM control module with fuse and relay module | 2L |
| N118 | Fuel pump control module | 18L |
| N15/3 | Electronic transmission control unit | 9L |
| N15/5 | Electronic selector lever module control module | 21L |
| U13 | Valid for right-hand steering | 4F |
| U24 | Valid for manual transmission | 6F |
| U25 | Valid for automatic transmission | 6F |
| U25 | Valid for automatic transmission | 20F |
| U490 | Valid for 7-speed automatic transmission | 12F |
| U527 | Valid for electronic transmission control | 8F |
| U74 | Valid for diesel vehicles | 7F |
| U75 | Valid for gasoline engines | 7F |
| U75 | Valid for gasoline engines | 16F |
| W15/6 | Ground point (right front footwell CAN) | 5L |
| W15/8 | Ground point (right front footwell CAN) | 7L |
| X30/21 | Drive train CAN voltage distributor electrical connector | 4A |
| X30/21 | Drive train CAN voltage distributor electrical connector | 12A |
| X30/21 | Drive train CAN voltage distributor electrical connector | 20A |
| Y3/8 | Fully integrated transmission control unit | 14L |
