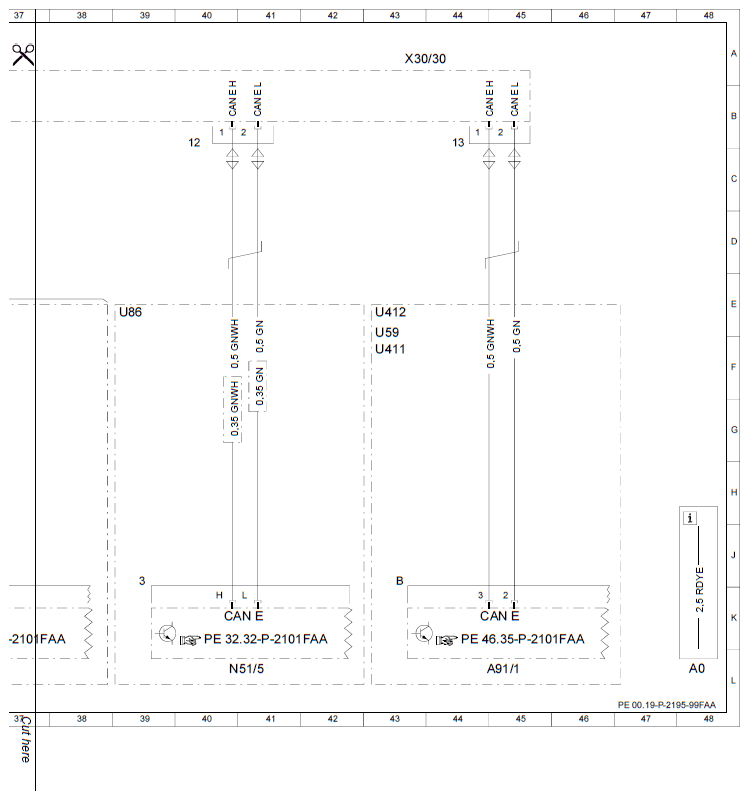

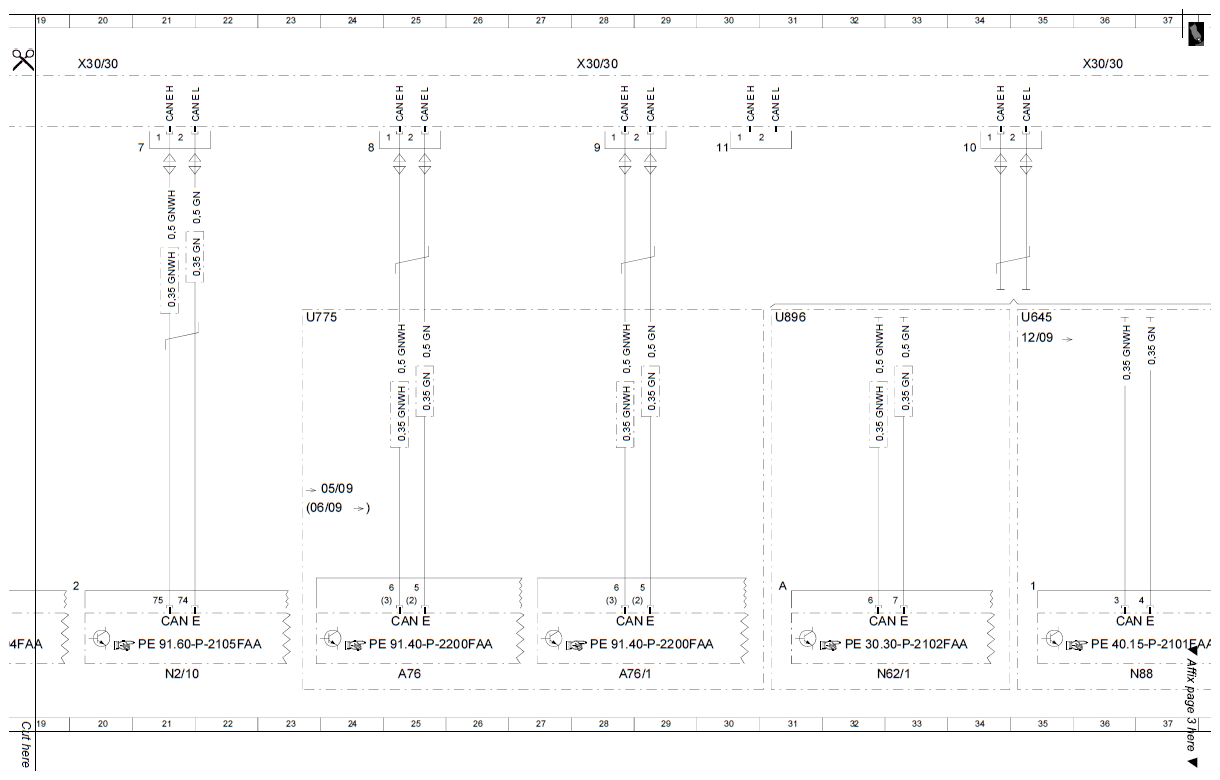

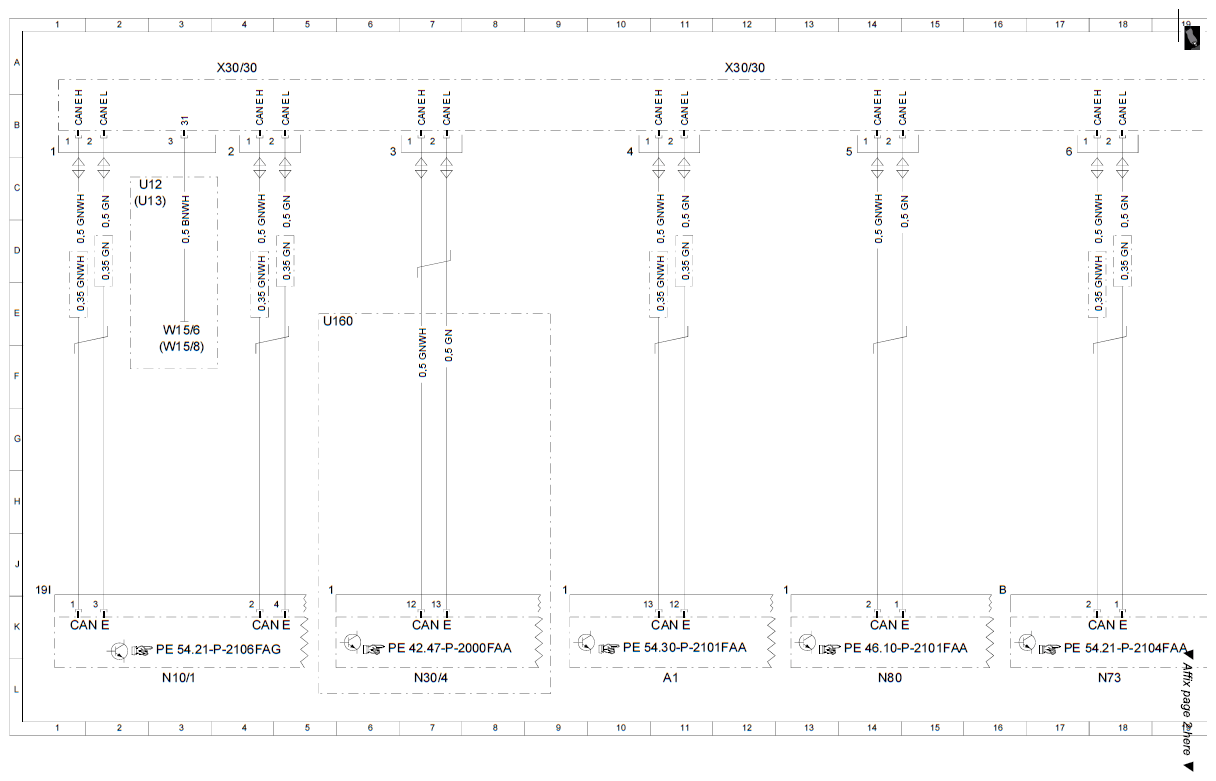

Wiring diagram of chassis CAN - PE00.19-P-2195-99FAA
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 40L |
| A1 | Instrument cluster | 11L |
| A76 | Left front reversible emergency tensioning retractor | 25L |
| A76/1 | Right front reversible emergency tensioning retractor | 28L |
| CAN E | Chassis CAN | 1K |
| CAN E | Chassis CAN | 4K |
| CAN E | Chassis CAN | 7K |
| CAN E | Chassis CAN | 10K |
| CAN E | Chassis CAN | 14K |
| CAN E | Chassis CAN | 17K |
| CAN E | Chassis CAN | 21K |
| CAN E | Chassis CAN | 25K |
| CAN E | Chassis CAN | 28K |
| CAN E | Chassis CAN | 32K |
| CAN E | Chassis CAN | 36K |
| N10/1 | Front SAM control module with fuse and relay module | 3L |
| N2/10 | Supplemental restraint system control unit | 21L |
| N30/4 | Electronic Stability Program control unit | 7L |
| N51/5 | Adaptive damping system control unit | 36L |
| N62/1 | Radar sensors control unit | 32L |
| N73 | Electronic ignition switch control unit | 18L |
| N80 | Steering column module control unit | 14L |
| U12 | Valid for left-hand steering | 2C |
| U13 | Valid for right-hand steering | 2C |
| U160 | Valid for ESP without adaptive damping system | 5E |
| U775 | Valid for emergency tensioning retractor | 23E |
| U86 | Valid for adaptive damping system and ESP | 35E |
| U896 | Valid for City Assist System | 31E |
| W15/6 | Ground point (right front footwell CAN) | 3E |
| W15/8 | Ground point (right front footwell CAN) | 3F |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 4A |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 12A |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 20A |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 28A |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 36A |
