Seam sealing following repair, detachable body components - AR97.10-P-4000-04Q
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

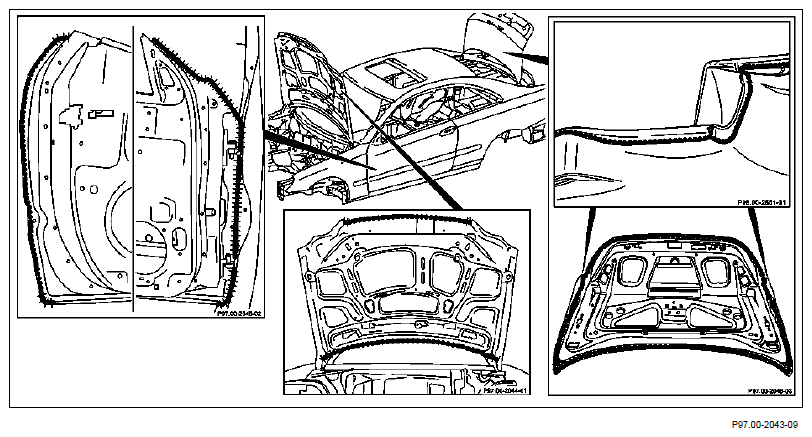

Engine hood/doors/trunk lid area
- Seal spot welds of area to be repaired with seam sealant
Insert plastic plugs and grommets with sealing compound. Keep sealant out of threads on weld nuts and threaded bolts by masking or covering with cardboard sleeves. Also keep sealant out of drain openings and contact surfaces for axle mounts, washers or attachment parts.
It is necessary to seal accessible spot weld flanges on both sides.
If accessible only from one side, seal corresponding surface only.
Observe standard sealing work!
