Remove/install fanfare horns - AR54.35-P-1555Q

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 209

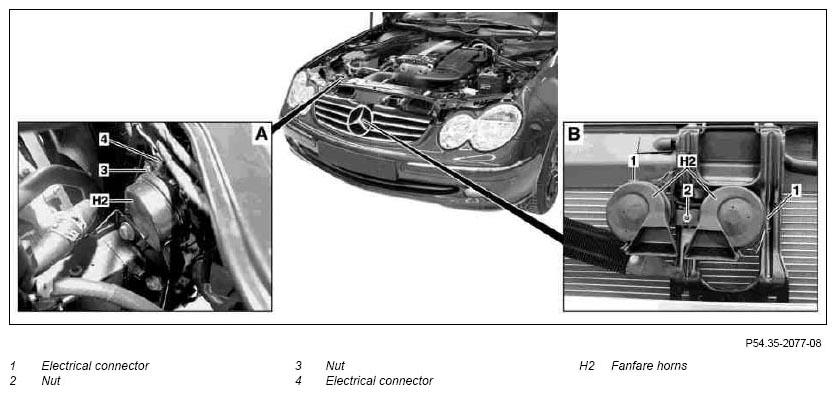

Fig 1: Identifying Fanfare Horns Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

20.1.04

"Disconnect/connect battery ground line" removed

	Remove/install
1	Remove radiator trim
2.1	Disconnect electrical connectors (1), unscrew nut (2) and remove both fanfare horns (H2) (picture B)	On vehicles without code 219 Distronic (DTR) and without code P98 Black Series
2.2	Disconnect electrical connector (4), unscrew nut (3) and remove fanfare horns (H2) (picture A)	On vehicles with code 219 Distronic (DTR)
2.3	Disconnect electrical connectors (1, 4), unscrew nuts (2, 3) and remove fanfare horns (H2)	On vehicles with code P98 Black Series On vehicles with code P98 one fanfare horn is located in the engine compartment (picture A) and one fanfare horn is located on the reinforcement upstream of the radiator (picture B).
3	Install in the reverse order
4	Carry out function check
