Prepare new rear fender part - AR63.50-P-1400-03CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

MODIFICATION NOTES

26.1.09

Modification to repair method

Operation steps 6, 7, 8,

Scribe separation line along rear fender (1) with metal needle template (area A).
When replacing C-pillar, separation line or cut (area A) is not required.

Position metal needle template on Y-markings (arrows).
Cut rear fender (1) at separation point (area A).
Remove section from rear fender (1).

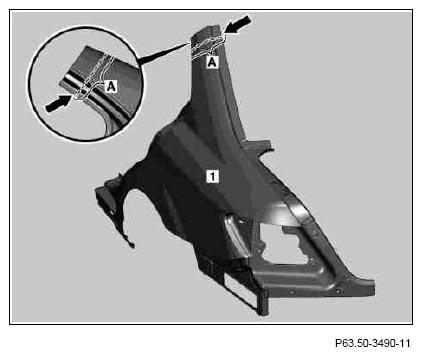

Fig 1: Locating Rear Fender Separation Line
Courtesy of MERCEDES-BENZ USA

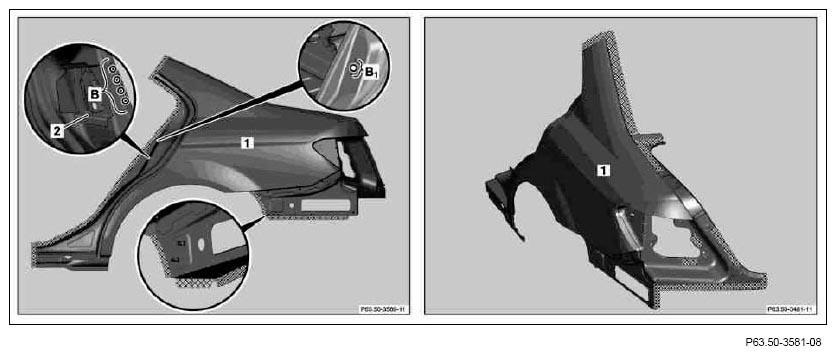

Fig 2: Identifying Rear Fender Mating Surfaces & Spot Welds
Courtesy of MERCEDES-BENZ USA
Grind mating surfaces on rear fender (1) down to bare metal in the crosshatched areas.
Grind spot weld flanges down to bare metal on both sides.
Coat insides of spot welding flange on rear fender (1) with zinc dust paint.
Cut out spot welds on lock striker bracket (2) (area B).
Drill through spot weld on lock striker bracket (2) (area B₁ ).
Remove locking eye bracket (2).
