Remove contacts from sensor laminated contact coupling - AR00.19-P-0120-02B

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying SLK 2.8 Blade (220 589 01 99 62)

Courtesy of MERCEDES-BENZ USA

Unfasten secondary release on version with locking bar

1. Using a suitable tool, push tabs of locking bar (1) in direction of arrow out of locked position.
   Fig 5: Pushing Tabs Of Locking Bar

   Courtesy of MERCEDES-BENZ USA

   Unfasten secondary release on version with locking slider

2. Using a suitable tool, move locking slider (3) in direction shown by arrow.
   Fig 6: Moving Locking Slider

   Courtesy of MERCEDES-BENZ USA

   Unfasten secondary release on version with locking striker

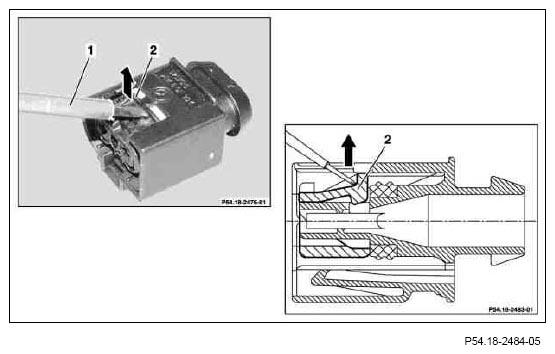

3. Using a suitable tool (1), press open the locking bar (2) in direction of arrow.

   The seal may be damaged if the tool (1) is inserted too far. Prying up the locking striker (2) beyond the stop may destroy the locking striker (2).

   The locking striker (2) remains unlocked when the female contacts are unpinned.

   Fig 7: Pressing Open Locking Bar

   Courtesy of MERCEDES-BENZ USA

   Unpin female contacts from coupling

4. Insert blade holder with clamping pliers and SLK 2.8 blade from front side though openings at contact cavity of coupling (1).

   This results in the spring shackles (2) being compressed.

5. A slight tug on the corresponding cable will remove the female contact from the coupling.

   Rocking the contact pin back and forth, thus making use of the full housing tolerance, may help to unpin the contact.

   Fig 8: Removing Female Contact From Coupling

   Courtesy of MERCEDES-BENZ USA
