Remove contacts from mini laminated contact plug - AR00.19-P-0120-27A

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying MQS Blade (220 589 01 99 60)

Courtesy of MERCEDES-BENZ USA

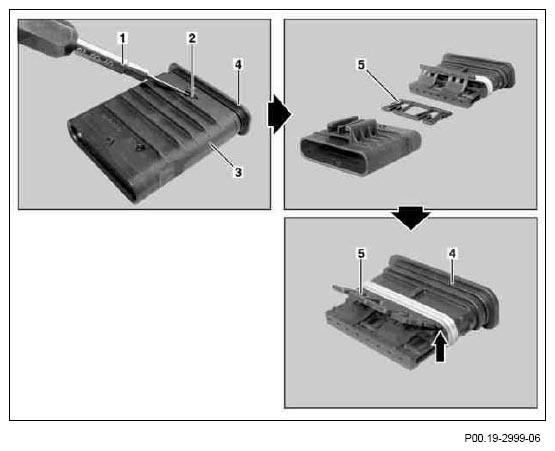

Unfasten secondary release on version with retainer housing

Using a suitable tool (1), pry the clutch housing (3) from the main housing (2) in direction shown by arrow.
During assembly, make sure that the gasket (4) is not damaged. Otherwise, water entering the connector may lead to contact problems.

Fig 5: Prying Clutch Housing From Main Housing
Courtesy of MERCEDES-BENZ USA

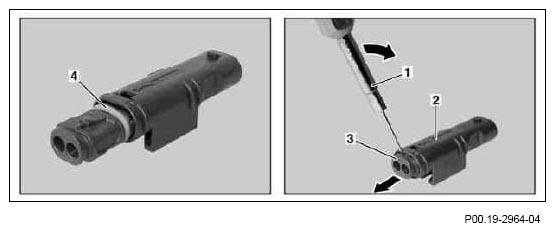

Unfasten secondary release on version with cap
Using a suitable tool (1), pry up lock tab (2) for cap (3).
Slowly pull the plug housing (4) from the cap (3) in direction shown by arrow.
The retaining clamp (5) is under tension due to the lock tab.
Before installing the cap (3), center the retaining clamp (5) in the groove and hold it down.

Fig 6: Pulling Plug Housing From Cap
Courtesy of MERCEDES-BENZ USA

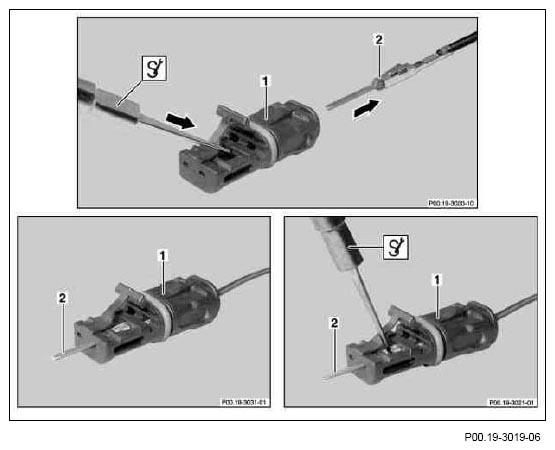

Unpin contact pins from the connector
Attach blade holder with clamping pliers and MQS blade from above through opening in exposed connector housing (1) at spring shackle of contact pin (2).
Press the spring shackle on the contact pin (2) down and slide the contact pin (2) out of the contact cavity of the connector housing (1). Tug the corresponding cable at the same time to assist the removal procedure.

Fig 7: Sliding Contact Pin Out Of Contact Cavity Of Connector Housing
Courtesy of MERCEDES-BENZ USA
