Remove contacts from micro quadlock system connector - AR00.19-P-0120-03A

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying MQS Blade (220 589 01 99 60)

Courtesy of MERCEDES-BENZ USA

Unfasten secondary release on version with retaining cap

Press lock tab of cap (1) out of connector housing (2).
Detach cap (1) from connector housing (2) in direction of arrow while holding down catch tab.

Fig 5: Pressing Lock Tab Of Cap Out Of Connector Housing
Courtesy of MERCEDES-BENZ USA

Unfasten secondary release on version with 2nd contact retainer
Open contact retainer using a suitable tool and lift in direction of arrow.

Fig 6: Opening Contact Retainer
Courtesy of MERCEDES-BENZ USA

Unfasten secondary release on version with retaining cap at Junior Power Timer connector (shown on Junior Power Timer/micro quadlock system connector)
Using a suitable tool, pry up the lock tab on the retaining cap (6).
Move retaining cap (6) in direction of arrow up to the stop.

Fig 7: Moving Retaining Cap
Courtesy of MERCEDES-BENZ USA

Unpin contact pins from the connector
Attach blade holder with clamping pliers and MQS blade from above through opening (arrow) in exposed connector housing (1) at spring shackle of contact pin (2).
Press down the spring shackle of the male contact (2) and push the male contact (2) out of the contact cavity of the connector housing (1). Tug the corresponding cable at the same time to assist the removal procedure.

Fig 8: Attaching Blade Holder
Courtesy of MERCEDES-BENZ USA

Unpin contact pins from connector with 2nd contact retainer

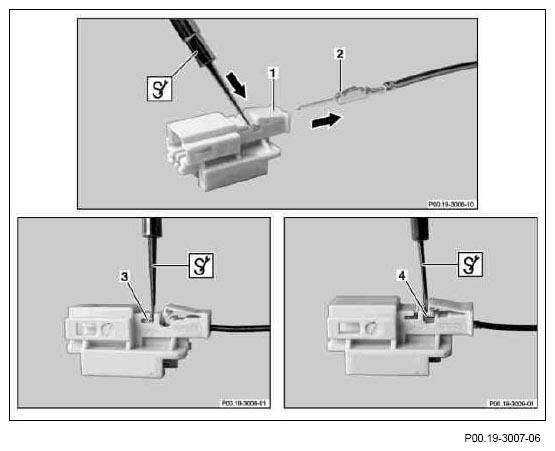

Attach blade holder with clamping pliers and MQS blade from above through opening (3) of pin housing (1) at spring shackle of contact pin (2).
Press down spring shackle and pull male contact (2) all the way out of contact cavity of pin housing (1). Carry out the same work step in the opening (4). Tug the corresponding cable at the same time to assist the unpinning procedure.

Fig 9: Pulling Male Contact Out Of Contact Cavity Of Pin Housing
Courtesy of MERCEDES-BENZ USA
