Remove contacts from 2.5 plug round plug contact - AR00.19-P-0120-16A

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Unlocking Device With RK 2.5 Ejector (220 589 01 99 30)

Courtesy of MERCEDES-BENZ USA

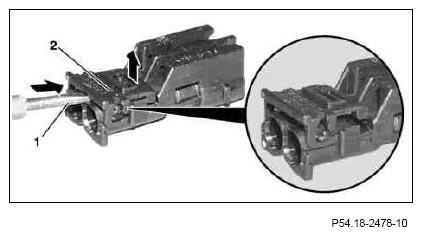

Unfasten secondary release on version with slide

Using a suitable tool (1), push the slide valve (2) out of the last detent in direction shown by arrow.

Fig 4: Pushing Slide Valve Out Of Last Detent
Courtesy of MERCEDES-BENZ USA

Unfasten secondary release on version with contact retainer
Using a suitable tool (1), open the contact retainer (2).

Fig 5: Opening Contact Retainer
Courtesy of MERCEDES-BENZ USA

Unfasten secondary release on version with secondary retainer
Using a suitable tool, slide the secondary retainer (1) to the pre-locking position.

Fig 6: Sliding Secondary Retainer To Pre-Locking Position
Courtesy of MERCEDES-BENZ USA

Unfasten secondary release on version with lock tab
Using a suitable tool, slide the lock tab to the pre-locking position.

Fig 7: Sliding Lock Tab To Pre-Locking Position
Courtesy of MERCEDES-BENZ USA

Unpin contact pins from the connector
Insert release tool with RK 2.5 ejector from front side into contact cavity of connector (1).
In this step, the sleeve (4) of the release tool compresses the spring shackles on the contact-pin (2).
Press contact pin (2) from its seat in housing using plunger (3) on release tool with RK 2.5 ejector against spring force of tool.

Fig 8: Removing Contact Pin From Connector
Courtesy of MERCEDES-BENZ USA
Gently pull the respective line to remove the contact pin (2) from the connector (1).
