Location and assignment of line and plug connectors, trunk, right - GF00.19-P-1000-07FAA

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

Model 204

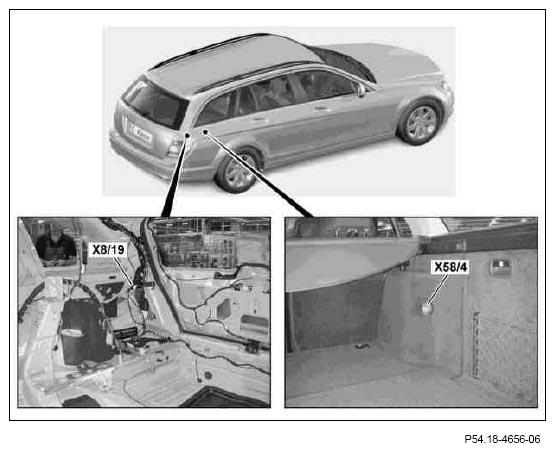

Fig 1: Locating Trunk Line And Plug Connectors - Right (1 Of 4)

Courtesy of MERCEDES-BENZ USA

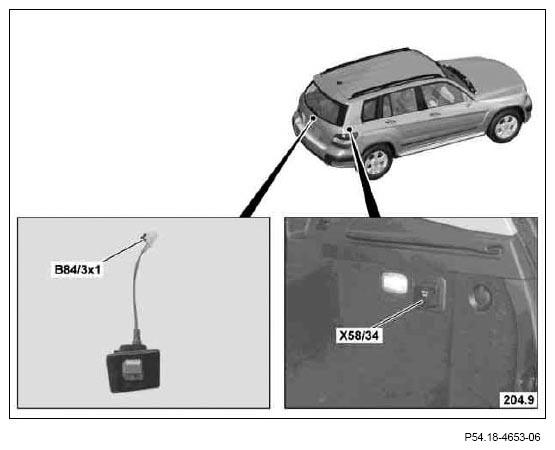

Fig 2: Locating Trunk Line And Plug Connectors - Right (2 Of 4)

Courtesy of MERCEDES-BENZ USA

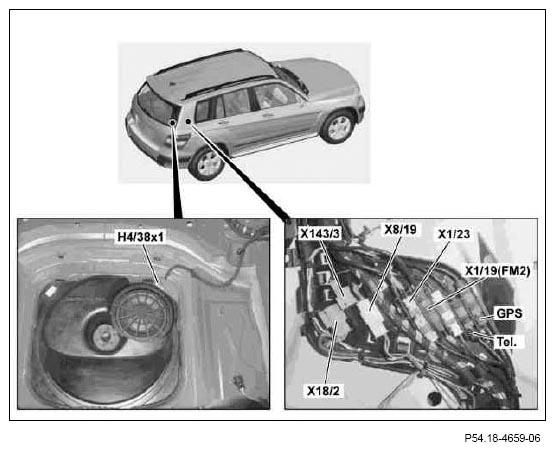

Fig 3: Locating Trunk Line And Plug Connectors - Right (3 Of 4)

Courtesy of MERCEDES-BENZ USA

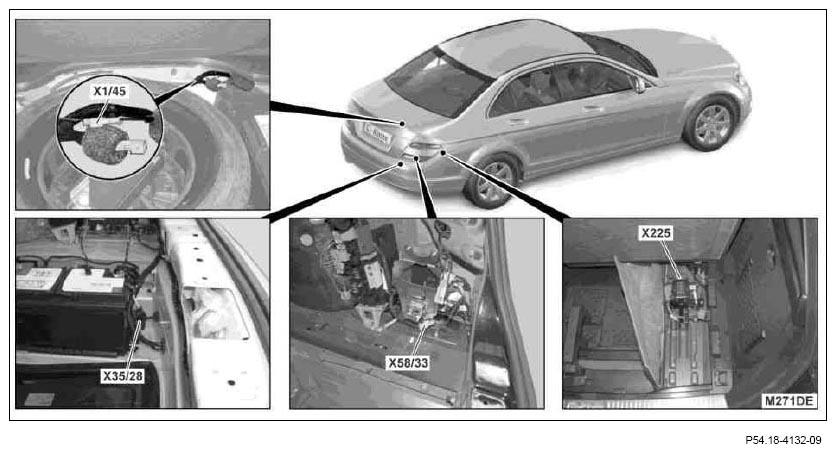

Fig 4: Locating Trunk Line And Plug Connectors - Right (4 Of 4)

Courtesy of MERCEDES-BENZ USA
