Location and assignment of Z connector sleeves (cable connections in wiring harness) - interior left - GF00.19-P-3000-04FAA

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

Model 204

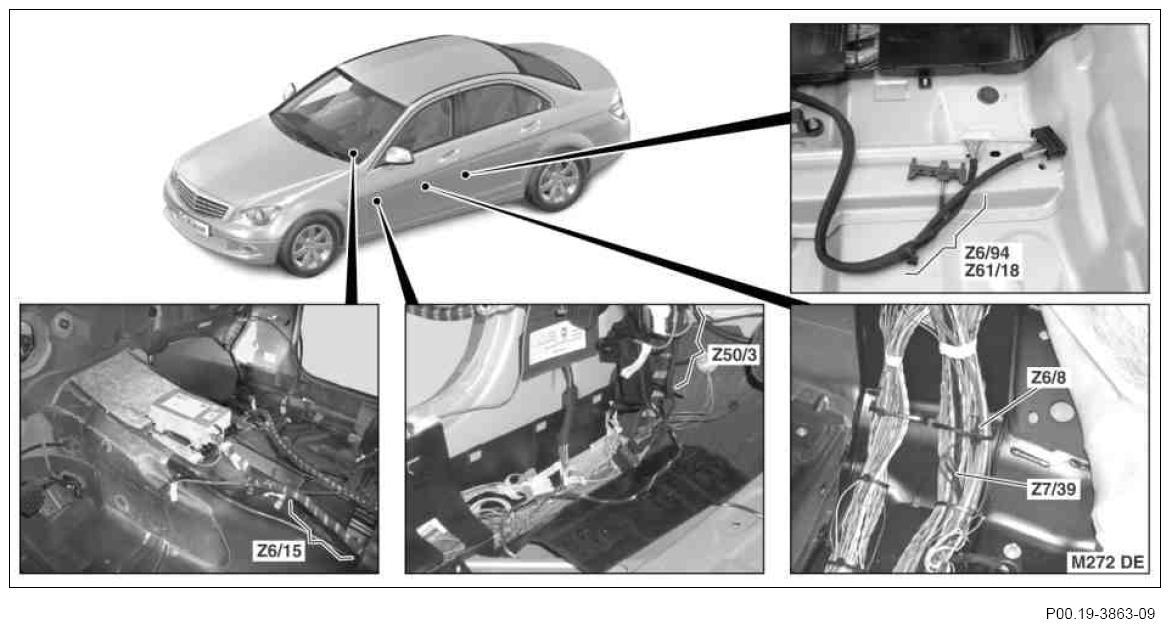

Fig 1: Locating Interior Z Connector Sleeves - Left (1 Of 3)
G07673029Courtesy of MERCEDES-BENZ USA

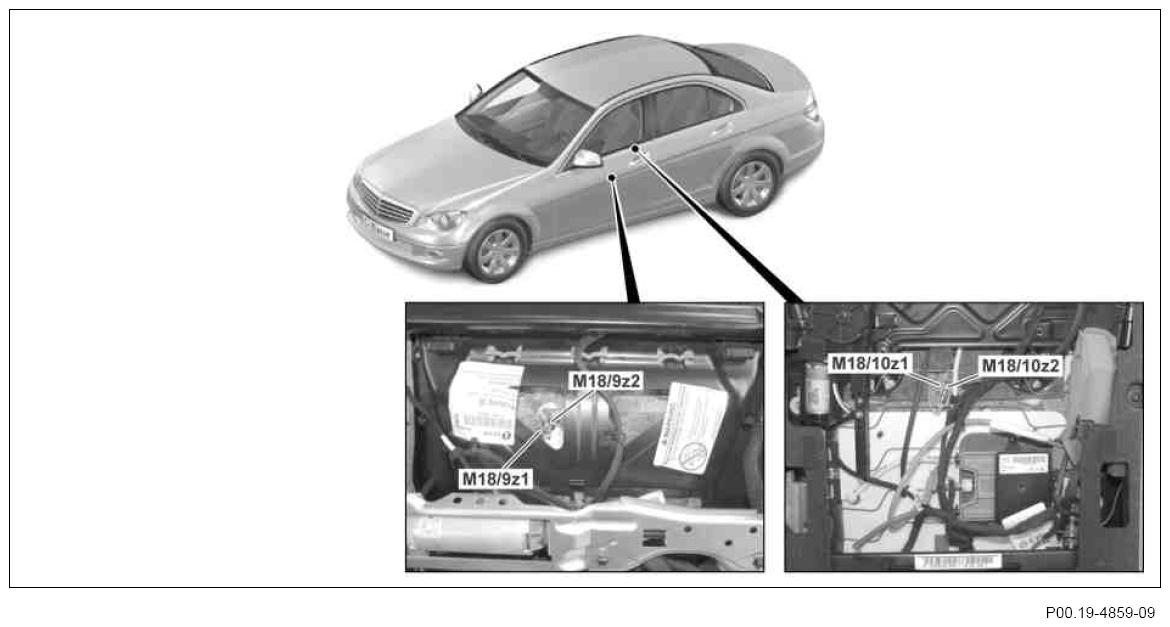

Fig 2: Locating Interior Z Connector Sleeves - Left (2 Of 3)
G07673030Courtesy of MERCEDES-BENZ USA

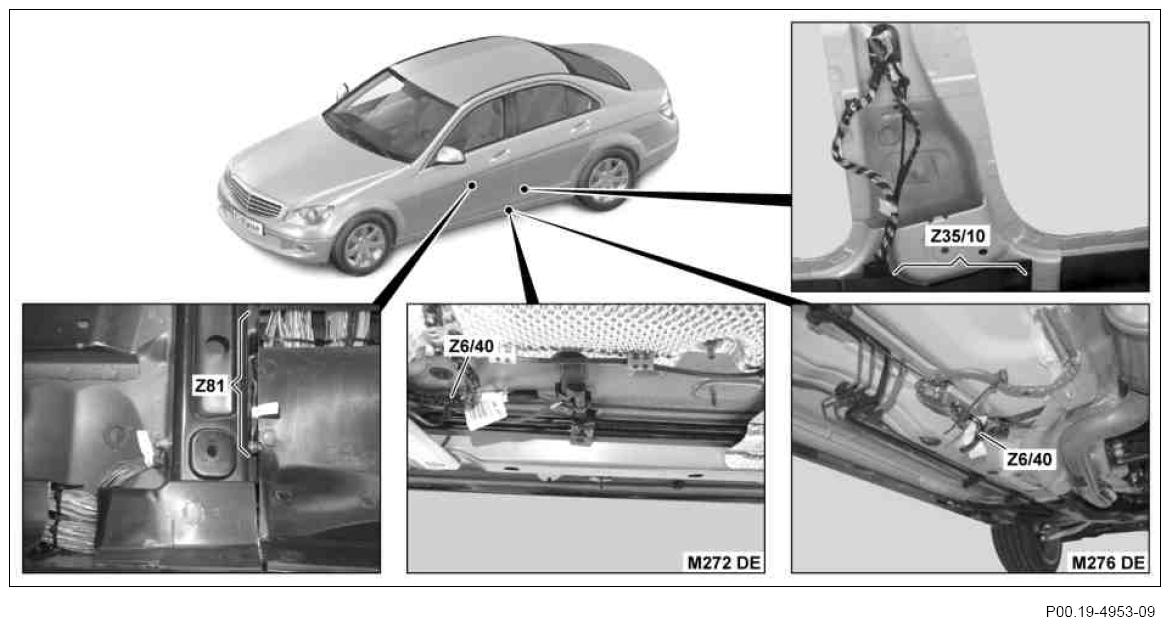

Fig 3: Locating Interior Z Connector Sleeves - Left (3 Of 3)
G07673031Courtesy of MERCEDES-BENZ USA
