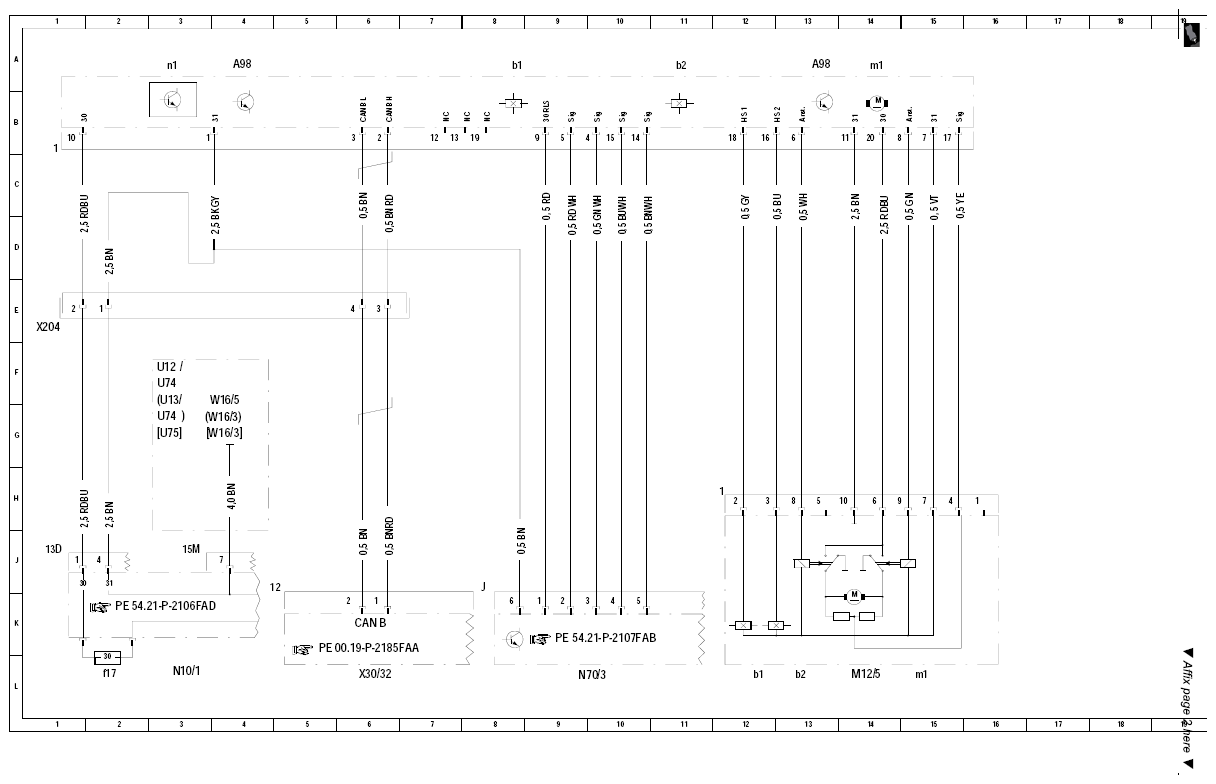

Electric wiring diagram for panoramic sliding roof - PE77.20-P-2200-99FAA
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|

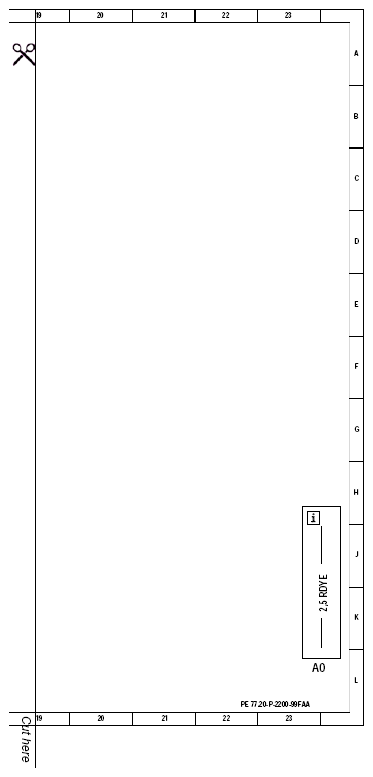

| A0 | Explanation of color codes | 23 L |
| A98 | Panoramic sliding roof control module | 4 A |
| A98 | Panoramic sliding roof control module | 13 A |
| A98b1 | Hall sensor 1, panoramic sliding roof | 8 A |
| A98b2 | Hall sensor 2, panoramic sliding roof | 11 A |
| A98m1 | Panoramic sliding roof motor | 14 A |
| A98n1 | Panoramic sliding roof control unit | 3 A |
| CAN B | Interior CAN | 6 K |
| M12/5 | Panoramic sliding roof roller sun blind drive unit | 14 L |
| M12/5b1 | Hall sensor 1, panoramic sliding roof roller sun blind | 12 L |
| M12/5b2 | Hall sensor 2, panoramic sliding roof roller sun blind | 13 L |
| M12/5m1 | Panoramic sliding roof roller sun blind motor | 14 L |
| N10/1 | Front SAM control module with fuse and relay module | 3 L |
| N10/1f17 | Fuse 17 | 1 L |
| N70/3 | Overhead control panel electronics | 9 L |
| U12 | Valid for left-hand steering | 3 F |
| U13 | Valid for right-hand steering | 3 G |
| U74 | Valid for diesel vehicles | 3 G |
| U74 | Valid for diesel vehicles | 3 F |
| U75 | Valid for gasoline engines | 3 G |
| W16/3 | Left major assembly compartment ground point | 3 G |
| W16/5 | Left major assembly compartment electronics ground point | 3 G |
| X204 | Panoramic sliding roof electrical connector | 1 E |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 6 L |
