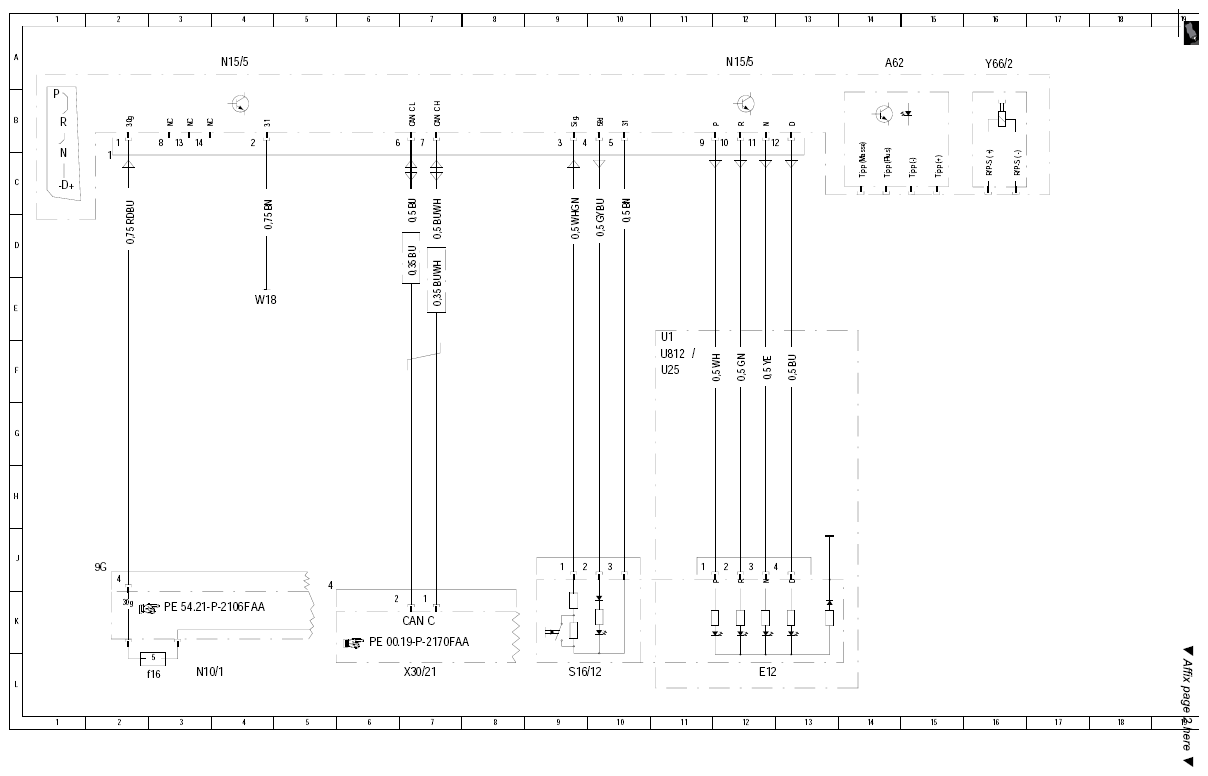

Wiring diagram for electronic selector lever module control unit - PE27.19-P-2102-99FAA
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|

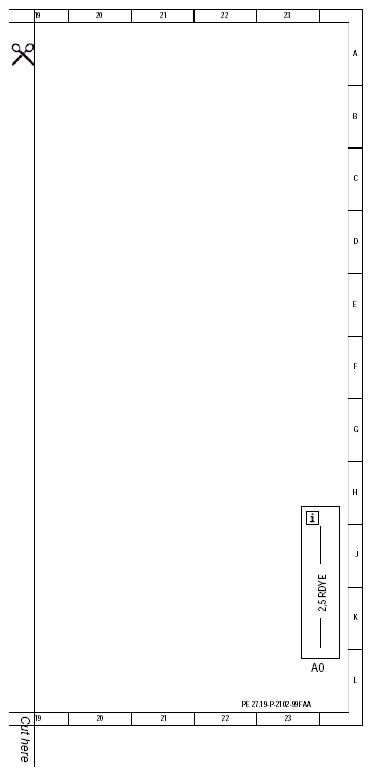

| A0 | Explanation of color codes | 23 L |
| A62 | Gear display sensor | 14 A |
| CAN C | Drive train CAN | 7 K |
| E12 | Shift gate symbol illumination | 12 L |
| N10/1 | Front SAM control module with fuse and relay module | 3 L |
| N10/1f16 | Fuse 16 | 2 L |
| N15/5 | Electronic selector lever module control module | 4 A |
| N15/5 | Electronic selector lever module control module | 12 A |
| S16/12 | Automatic transmission mode button | 9 L |
| U1 | Valid for USA | 11 F |
| W18 | Left front seat crossmember ground point | 4 E |
| X30/21 | Drive train CAN voltage distributor electrical connector | 7 L |
| Y66/2 | Selector lever positions R and P locking solenoid | 16 A |
