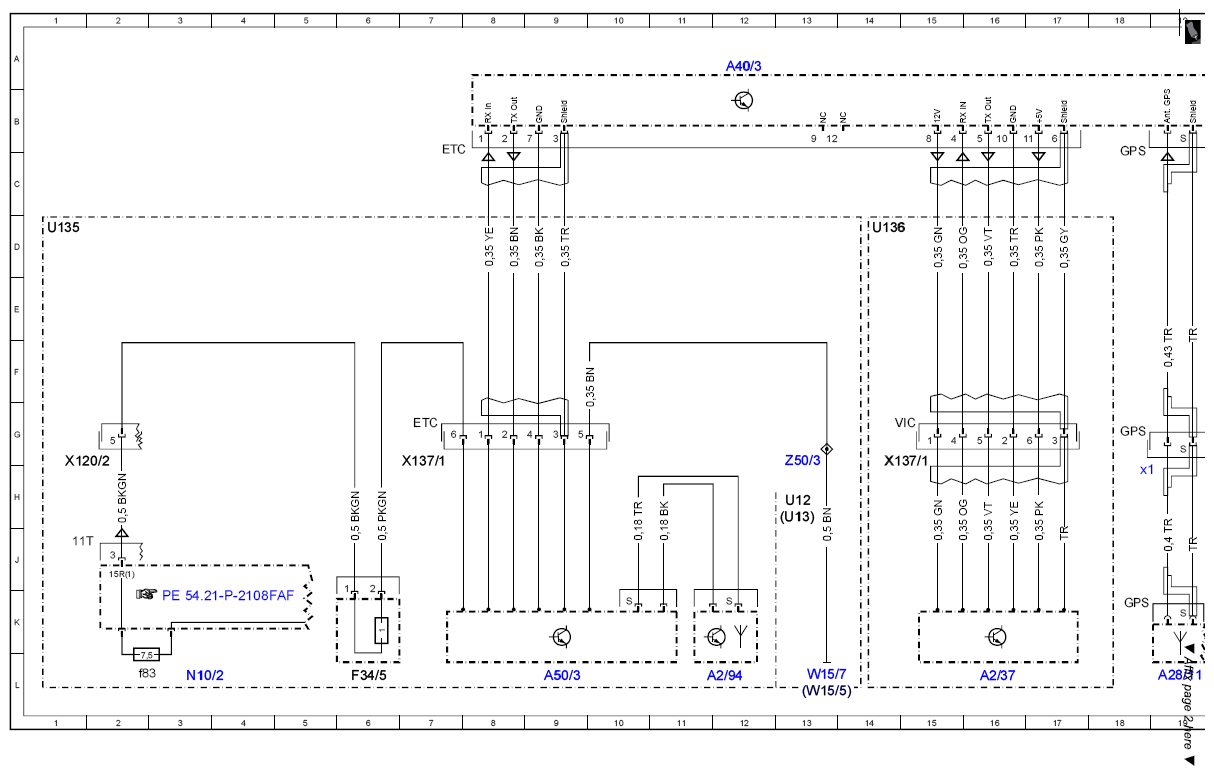

Cockpit Management and Data System (COMAND) control unit wiring diagram - PE82.85-P-2101-97FAF
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 23L |
| A2/37 | VICS control unit | 16L |
| A2/94 | Electronic toll collection (ETC) antenna | 12L |
| A28/11 | Multifunction antenna | 19L |
| A28/11x1 | Multifunction antenna electrical connector | 18H |
| A40/3 | COMAND control unit | 12A |
| A40/3 | COMAND control unit | 20A |
| A50/3 | Electronic Toll Collection control unit | 9L |
| F34/5 | Electronic Toll Collection preinstallation electrical fuse | 6L |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2f83 | Fuse 83 | 2L |
| U12 | Valid for left-hand drive vehicles | 13H |
| U13 | Valid for right-hand drive vehicles | 13H |
| U135 | Valid for Electronic Toll Collection | 1D |
| U136 | Valid for Vehicle Information and Communication System (VICS) | 14D |
| W15/5 | Left front footwell ground point | 13L |
| W15/7 | Right front footwell ground point | 13L |
| X120/2 | External fan electrical connector, frame floor assembly/cockpit | 2H |
| X137/1 | VICS and Electronic Toll Collection power supply electrical connector | 7H |
| X137/1 | VICS and Electronic Toll Collection power supply electrical connector | 15H |
| Z50/3 | Circuit 31 instrument panel connector sleeve | 13G |
