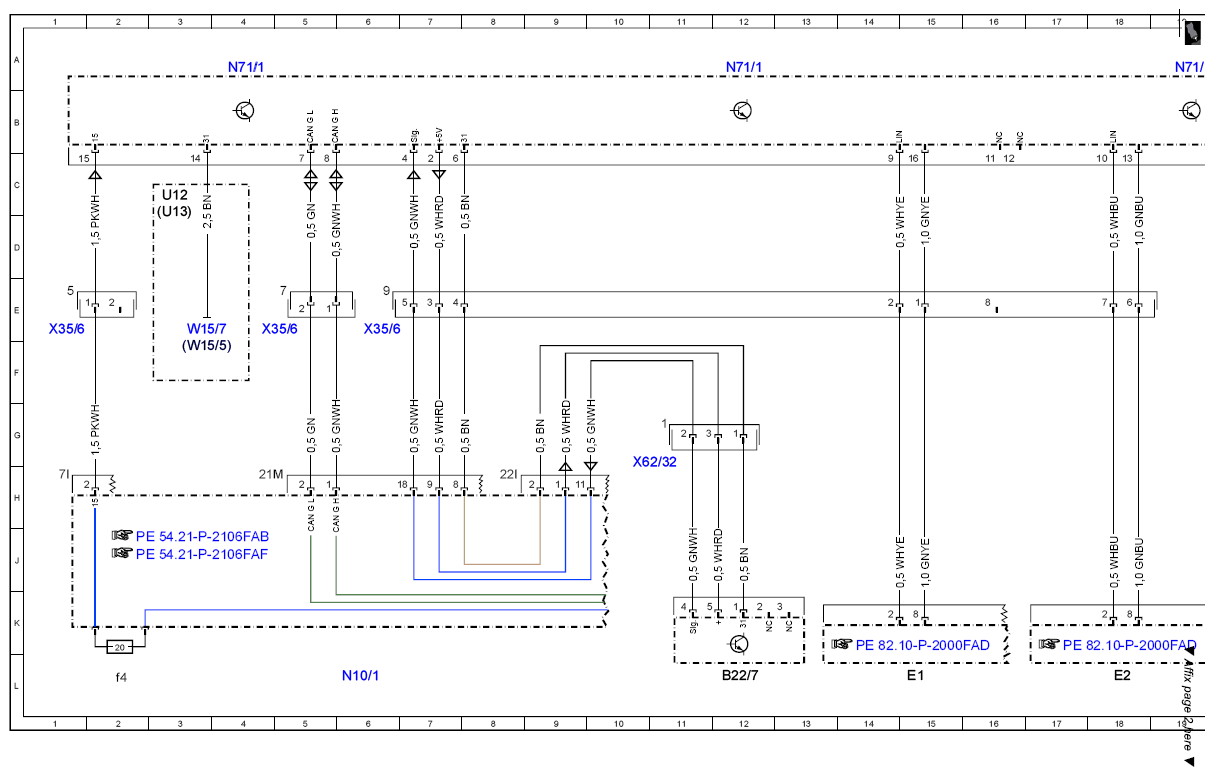

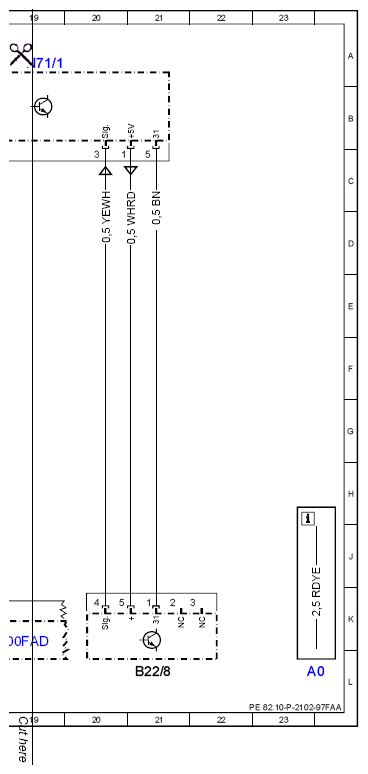

Wiring diagram for headlamp control unit - PE82.10-P-2102-97FAA
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 23L |
| B22/7 | Left rear level sensor | 12L |
| B22/8 | Left front level sensor | 21L |
| E1 | Left front lamp unit | 15L |
| E2 | Right front lamp unit | 18L |
| N10/1 | Front SAM control unit with fuse and relay module | 6L |
| N10/1f4 | Fuse 4 | 2L |
| N71/1 | Headlamp control unit | 4A |
| N71/1 | Headlamp control unit | 12A |
| N71/1 | Headlamp control unit | 19A |
| U12 | Valid for left-hand drive vehicles | 3C |
| U13 | Valid for right-hand drive vehicles | 3D |
| W15/5 | Left front footwell ground point | 3F |
| W15/7 | Right front footwell ground point | 3E |
| X35/6 | Instrument panel and module box electrical connector | 1E |
| X35/6 | Instrument panel and module box electrical connector | 6E |
| X35/6 | Instrument panel and module box electrical connector | 5E |
| X62/32 | Rear axle electrical connector, left distributor | 11H |
