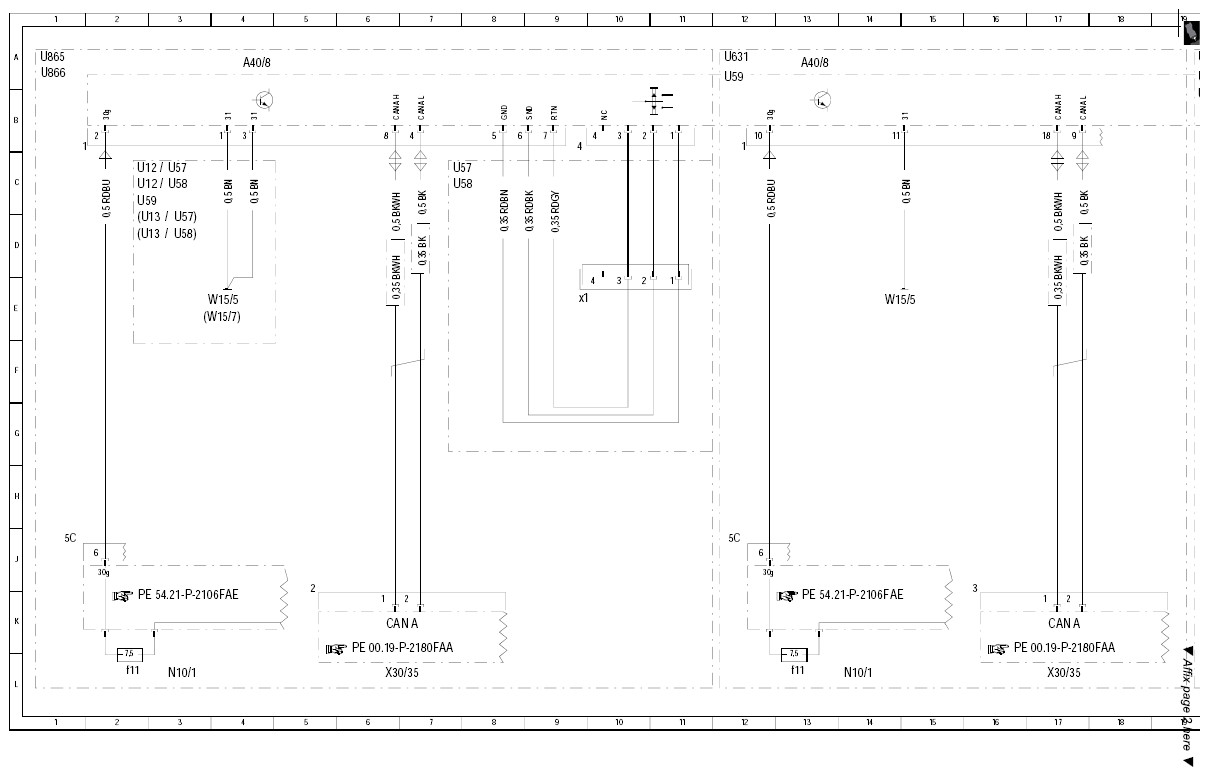

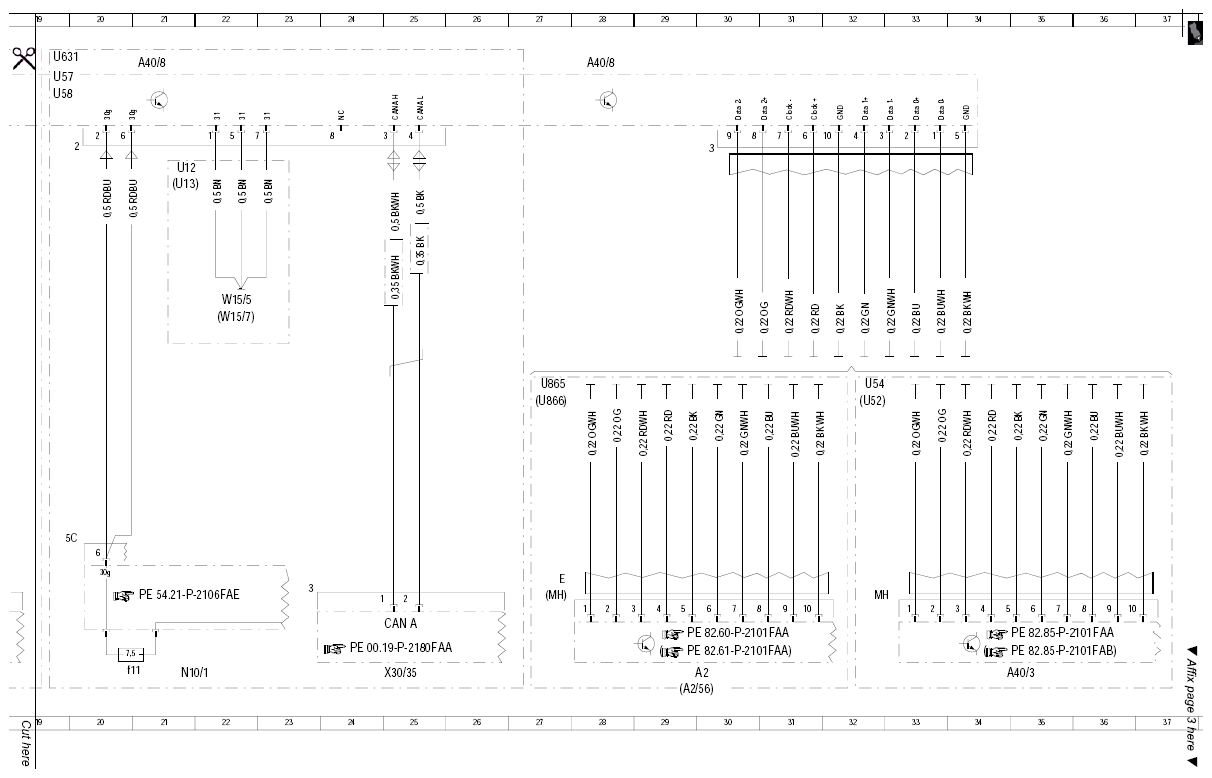

Wiring diagram for Audio/COMAND display - PE82.00-P-2080-99FAA
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|

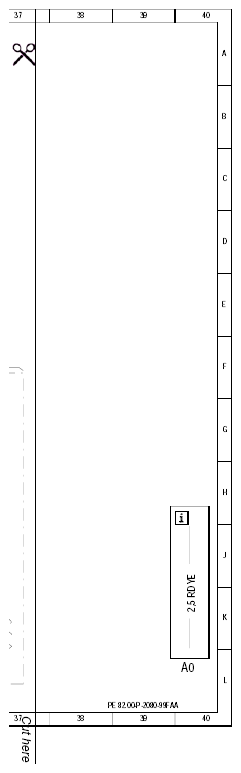

| A0 | Explanation of color codes | 31 L |
| A2 | Radio | 21 L |
| A2/56 | Radio with auto pilot system | 21 L |
| A40/3 | COMAND control unit | 26 L |
| A40/8 | Audio/COMAND display | 4 A |
| A40/8 | Audio/COMAND display | 12 A |
| A40/8 | Audio/COMAND display | 20 A |
| A40/8x1 | Audio/COMAND display electrical connector | 8 E |
| CAN A | Telematics CAN | 6 K |
| CAN A | Telematics CAN | 16 K |
| N10/1 | Front SAM control module with fuse and relay module | 3 L |
| N10/1 | Front SAM control module with fuse and relay module | 13 L |
| N10/1f11 | Fuse 11 | 2 L |
| N10/1f11 | Fuse 11 | 12 L |
| U12 | Valid for left-hand steering | 3 C |
| U12 | Valid for left-hand steering | 13 C |
| U13 | Valid for right-hand steering | 3 C |
| U13 | Valid for right-hand steering | 13 C |
| U52 | Valid for Japan | 24 G |
| U54 | Valid for all except Japan | 24 F |
| U631 | Valid for COMAND | 11 A |
| U865 | Valid for Audio 20 radio | 1 A |
| U865 | Valid for Audio 20 radio | 19 F |
| U866 | Valid for Audio 50 | 1 A |
| U866 | Valid for Audio 50 | 19 G |
| W15/5 | Left front footwell ground point | 3 E |
| W15/5 | Left front footwell ground point | 14 E |
| W15/7 | Right front footwell ground point | 3 E |
| W15/7 | Right front footwell ground point | 14 E |
| X30/35 | Telematics CAN voltage distributor electrical connector | 6 L |
| X30/35 | Telematics CAN voltage distributor electrical connector | 16 L |
