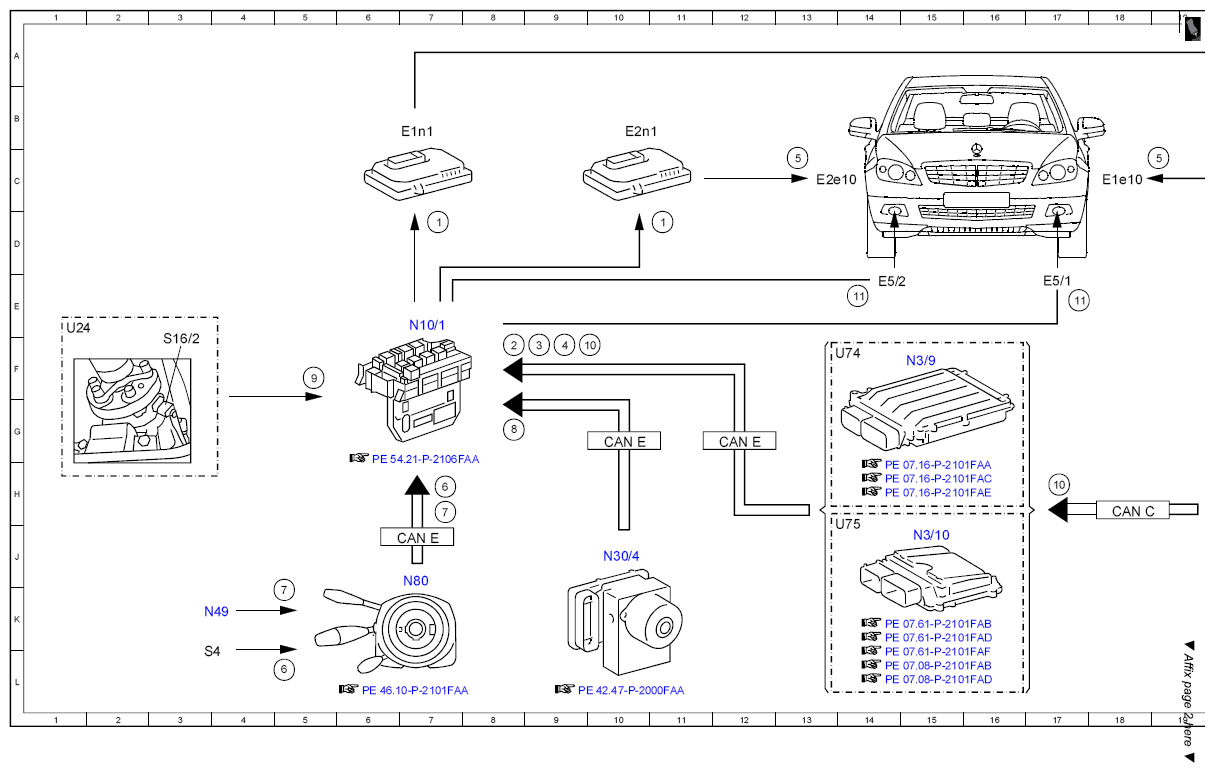

Electrical function schematic for cornering illumination - PE82.10-P-2061-97FAB
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Low beams, request | 7D |
| 1 | Low beams, request | 11D |
| 10 | Selector lever position, status | 17H |
| 10 | Selector lever position, status | 9F |
| 11 | Front fog lamps, actuation | 14E |
| 11 | Front fog lamps, actuation | 17E |
| 2 | Engine speed, signal | 8F |
| 3 | Circuit 61, status | 9F |
| 4 | "PT_Rdy", signal | 9F |
| 5 | Xenon bulb with integrated ignition module, actuation | 13C |
| 5 | Xenon bulb with integrated ignition module, actuation | 19C |
| 6 | Combination switch, status | 5L |
| 6 | Combination switch, status | 7H |
| 7 | Steering angle, signal | 5K |
| 7 | Steering angle, signal | 7H |
| 8 | Wheel speed, signal | 8G |
| 9 | Backup lamp switch, status | 5F |
| CAN C | Drive train CAN | 18H |
| CAN E | Chassis CAN | 7J |
| CAN E | Chassis CAN | 12G |
| CAN E | Chassis CAN | 10G |
| Code 423 | 5-speed automatic transmission | 20G |
| Code 427 | 7-speed automatic transmission | 20H |
| E1e10 | Left xenon bulb with integrated ignition module | 18C |
| E1n1 | Left xenon lamp control unit | 7B |
| E2e10 | Right xenon bulb with integrated ignition module | 13C |
| E2n1 | Right xenon light control unit | 10B |
| E5/1 | Left fog lamp | 17E |
| E5/2 | Right fog lamp | 14E |
| N10/1 | Front SAM control unit with fuse and relay module | 7E |
| N15/5 | Electronic selector lever module control unit | 21H |
| N3/10 | ME-SFI [ME] control unit | 15J |
| N3/9 | CDI control unit | 15F |
| N30/4 | Electronic Stability Program control unit | 10J |
| N49 | Steering angle sensor | 3K |
| N80 | Steering column module control unit | 7J |
| S16/2 | Backup lamp switch | 3F |
| S4 | Combination switch | 3L |
| U24 | Valid for manual transmission | 1E |
| U74 | Valid for diesel engines | 13F |
| U75 | Valid for gasoline engines | 13J |
