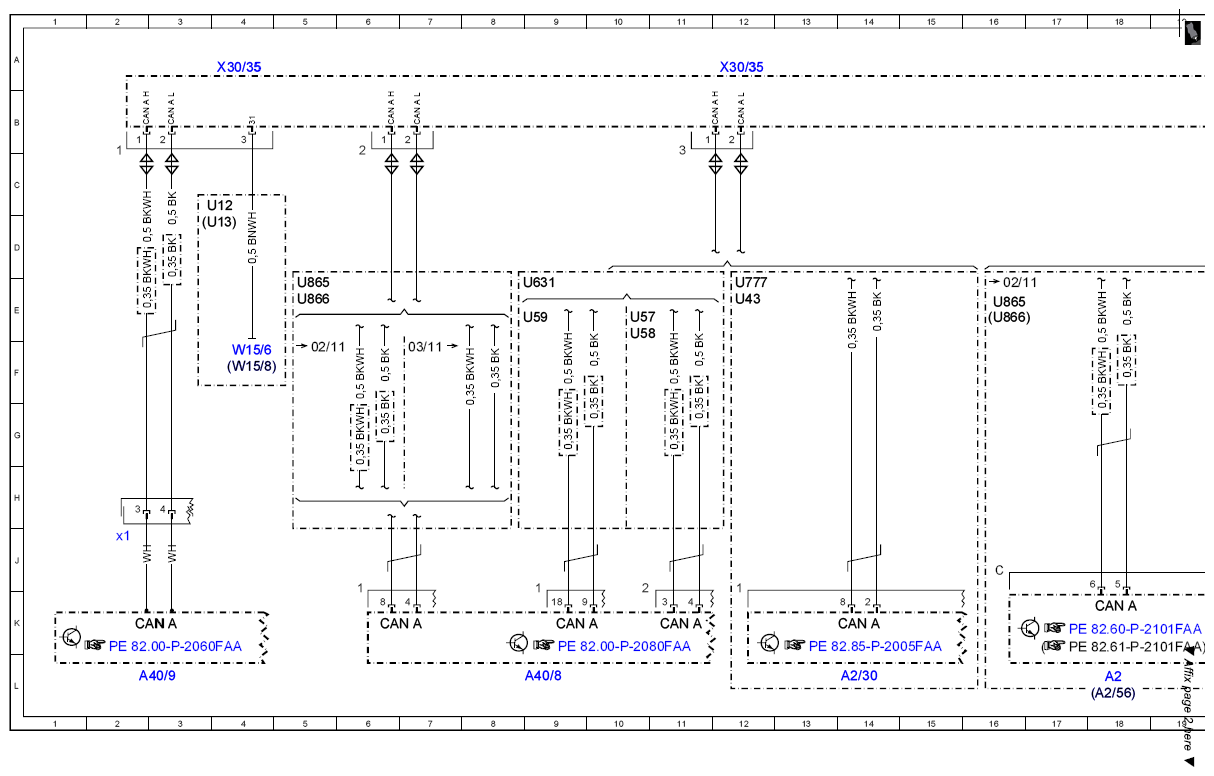

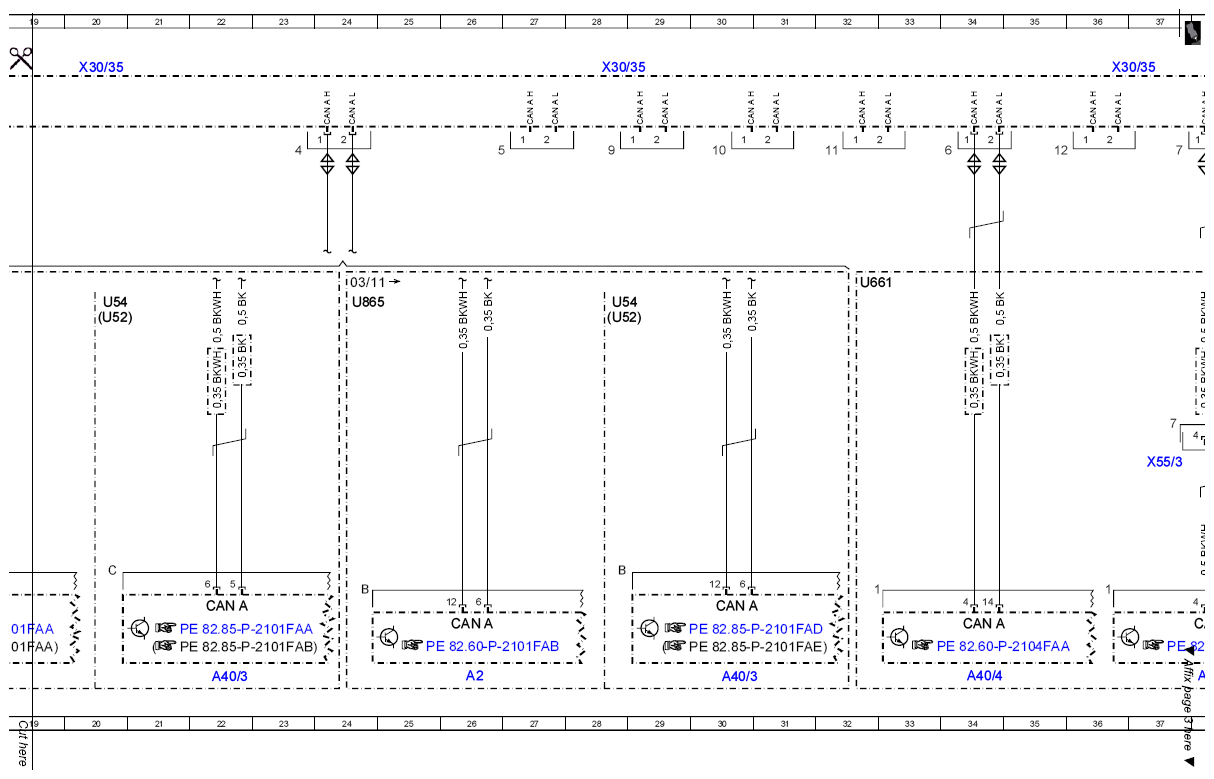

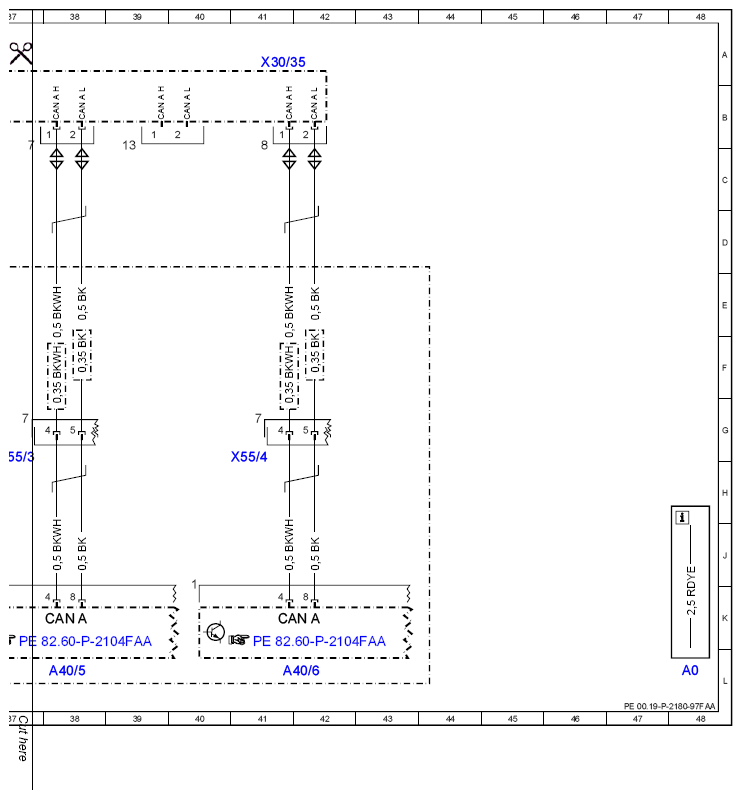

Wiring diagram of telematics CAN - PE00.19-P-2180-97FAA
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 48L |
| A2 | Radio | 18L |
| A2 | Radio | 26L |
| A2/30 | Navigation module | 14L |
| A2/56 | Radio with auto pilot system | 18L |
| A40/3 | COMAND control unit | 22L |
| A40/3 | COMAND control unit | 30L |
| A40/4 | DVD player | 34L |
| A40/5 | Left rear display | 38L |
| A40/6 | Right rear display | 41L |
| A40/8 | Audio/COMAND display | 9L |
| A40/9 | Audio/COMAND control panel | 3L |
| A40/9x1 | Audio/COMAND control panel electrical connector | 2J |
| CAN A | Telematics CAN | 6K |
| CAN A | Telematics CAN | 9K |
| CAN A | Telematics CAN | 11K |
| CAN A | Telematics CAN | 41K |
| CAN A | Telematics CAN | 34K |
| CAN A | Telematics CAN | 38K |
| CAN A | Telematics CAN | 2K |
| CAN A | Telematics CAN | 22K |
| CAN A | Telematics CAN | 18K |
| CAN A | Telematics CAN | 30K |
| CAN A | Telematics CAN | 26K |
| CAN A | Telematics CAN | 14K |
| U12 | Valid for left-hand drive vehicles | 3C |
| U13 | Valid for right-hand drive vehicles | 3D |
| U43 | Valid for ECE | 12E |
| U52 | Valid for Japan | 20E |
| U52 | Valid for Japan | 28E |
| U54 | Valid for all except Japan | 20E |
| U54 | Valid for all except Japan | 28E |
| U57 | Valid for model 204.2 | 10E |
| U58 | Valid for model 204.0 | 10E |
| U59 | Valid for model 204.9 | 8E |
| U631 | Valid for COMAND | 8E |
| U661 | Valid for TV and video in rear | 32E |
| U777 | Valid for navigation | 12E |
| U865 | Valid for Audio 20 | 16E |
| U865 | Valid for Audio 20 | 24E |
| U865 | Valid for Audio 20 | 5E |
| U866 | Valid for Audio 50 | 16E |
| U866 | Valid for Audio 50 | 5E |
| W15/6 | Ground point (left front footwell CAN) | 4F |
| W15/8 | Ground point (right front footwell CAN) | 4F |
| X30/35 | Telematics CAN voltage distributor electrical connector | 4A |
| X30/35 | Telematics CAN voltage distributor electrical connector | 12A |
| X30/35 | Telematics CAN voltage distributor electrical connector | 36A |
| X30/35 | Telematics CAN voltage distributor electrical connector | 28A |
| X30/35 | Telematics CAN voltage distributor electrical connector | 20A |
| X30/35 | Telematics CAN voltage distributor electrical connector | 41A |
| X55/3 | Driver seat connector block | 37H |
| X55/4 | Front passenger seat connector block | 41H |
