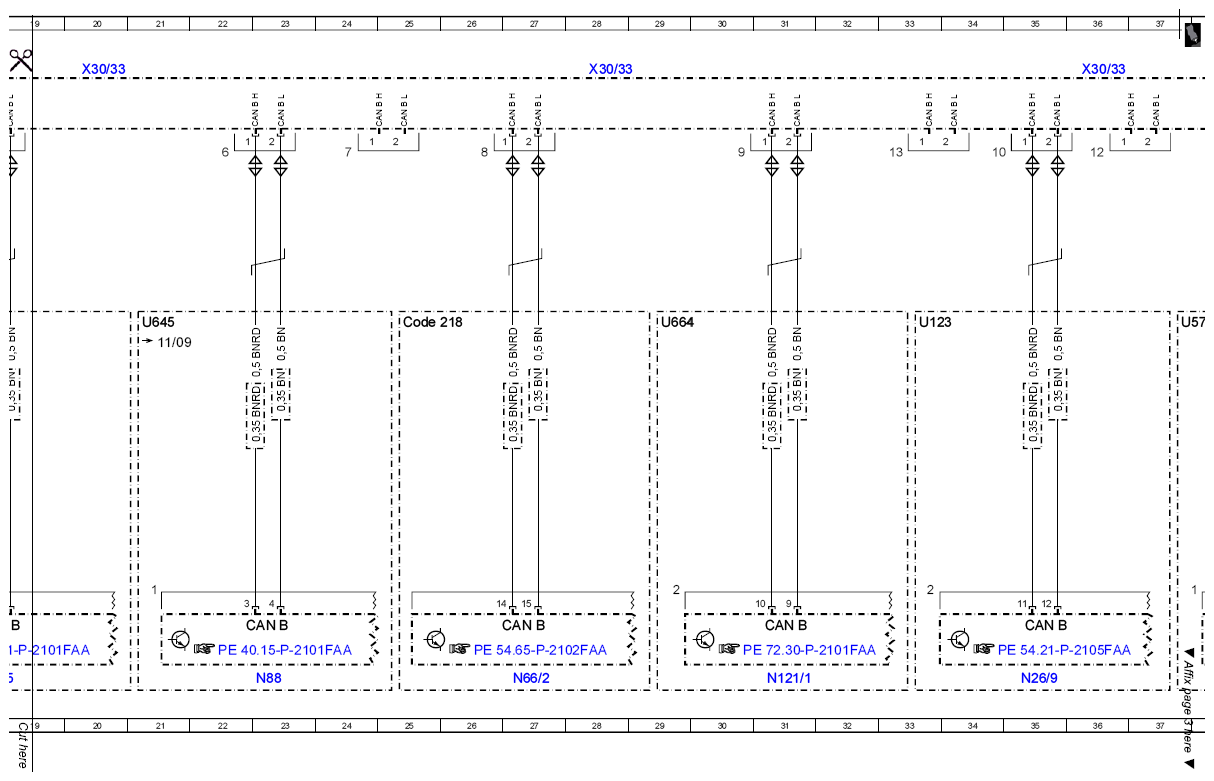

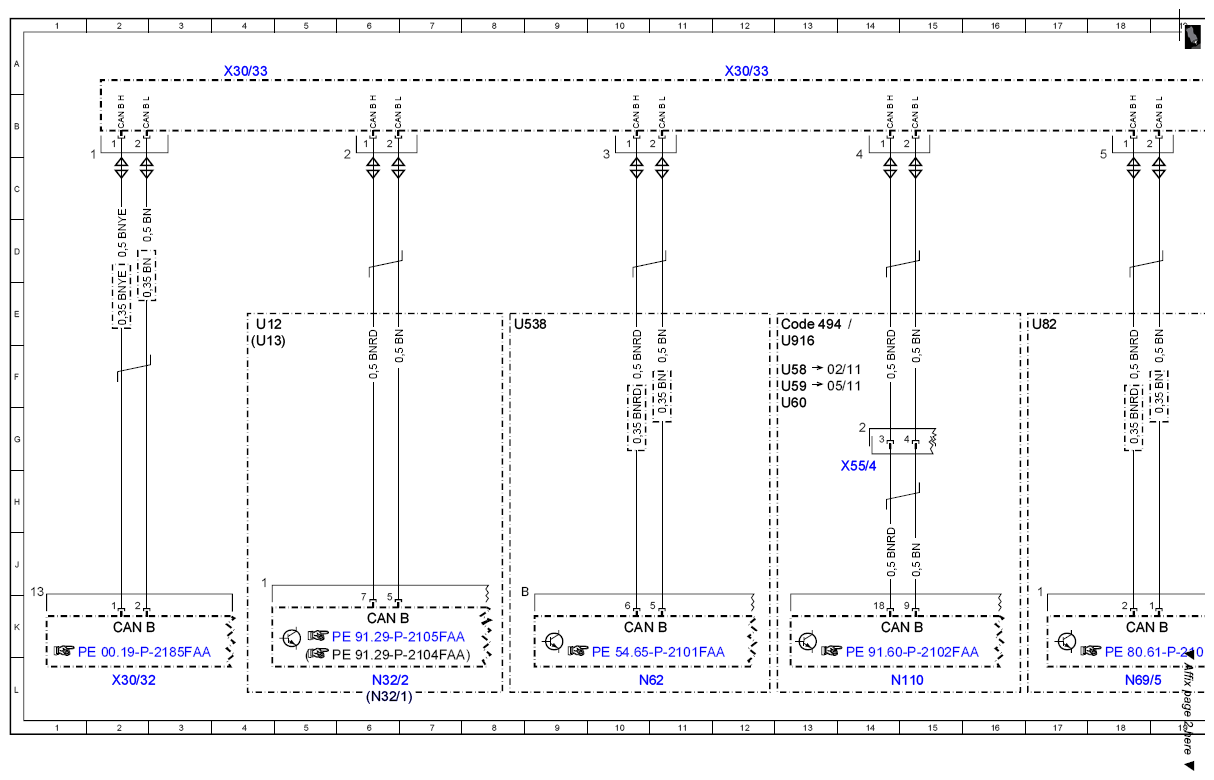

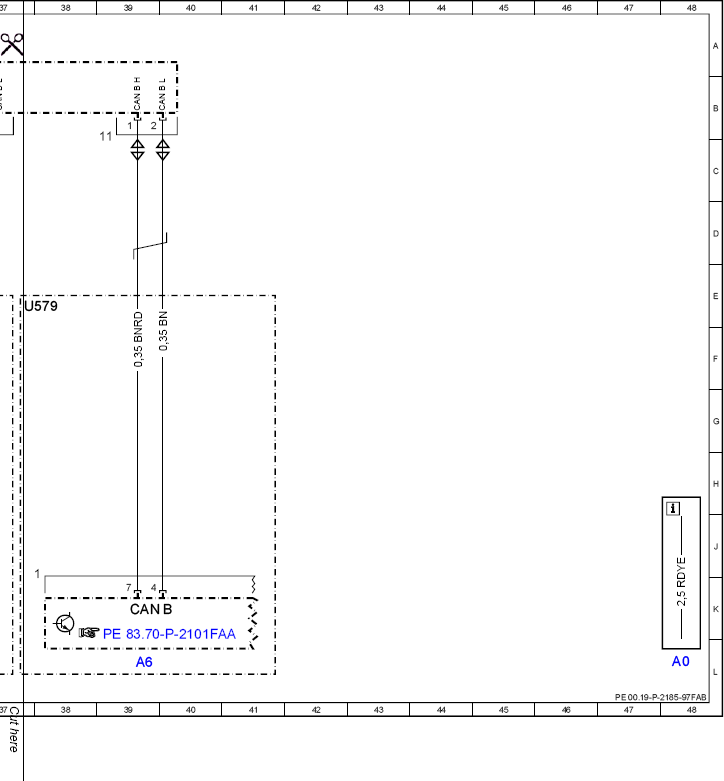

Wiring diagram of interior CAN - PE00.19-P-2185-97FAB
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 48L |
| A6 | Stationary heater unit | 39L |
| CAN B | Interior CAN | 6K |
| CAN B | Interior CAN | 2K |
| CAN B | Interior CAN | 10K |
| CAN B | Interior CAN | 14K |
| CAN B | Interior CAN | 18K |
| CAN B | Interior CAN | 23K |
| CAN B | Interior CAN | 27K |
| CAN B | Interior CAN | 31K |
| CAN B | Interior CAN | 35K |
| CAN B | Interior CAN | 39K |
| Code 218 | Backup camera | 25E |
| Code 494 | USA version | 13E |
| N110 | Weight Sensing System (WSS) control unit | 15L |
| N121/1 | Tailgate control unit | 31L |
| N26/9 | Special-purpose vehicle multifunction control unit | 35L |
| N32/1 | Driver seat control unit | 6L |
| N32/2 | Front passenger seat control unit | 6L |
| N62 | Parking system control unit | 10L |
| N66/2 | Backup camera control unit | 27L |
| N69/5 | KEYLESS-GO control unit | 18L |
| N88 | Tire pressure monitor control unit | 23L |
| U12 | Valid for left-hand drive vehicles | 4E |
| U123 | Valid for taxi electrical system | 33E |
| U13 | Valid for right-hand drive vehicles | 4F |
| U538 | Valid for PARKTRONIC | 8E |
| U579 | Valid for stationary heater | 37E |
| U58 | Valid for model 204.0 | 13F |
| U59 | Valid for model 204.9 | 13F |
| U60 | Valid for model 204.3 | 13F |
| U645 | Valid for tire pressure monitor | 21E |
| U664 | Valid for automatic tailgate | 29E |
| U82 | Valid for KEYLESS GO | 17E |
| U916 | Valid for weight sensing system (WSS) | 13F |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 2L |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 4A |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 12A |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 20A |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 28A |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 36A |
| X55/4 | Front passenger seat connector block | 14H |
