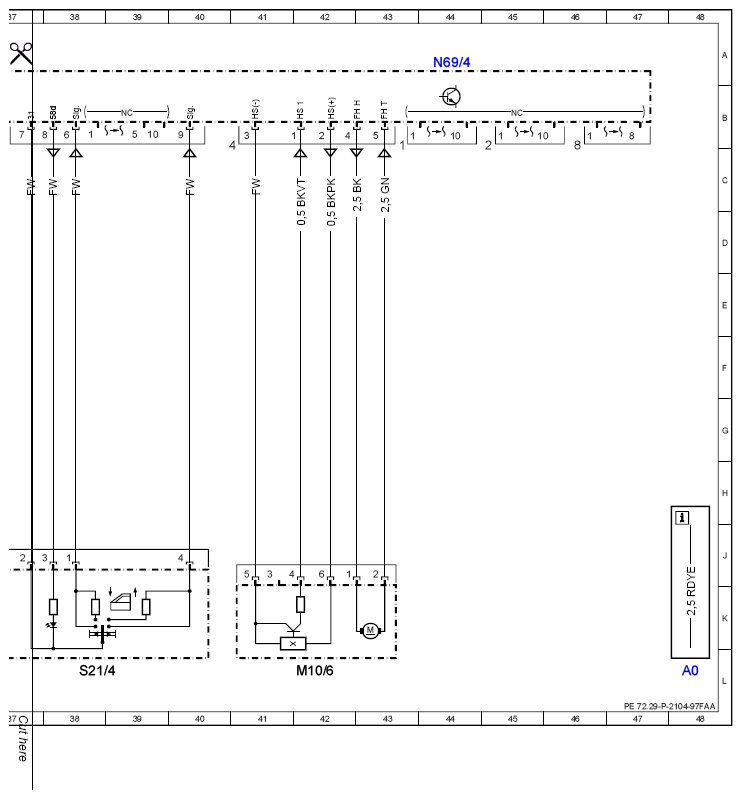

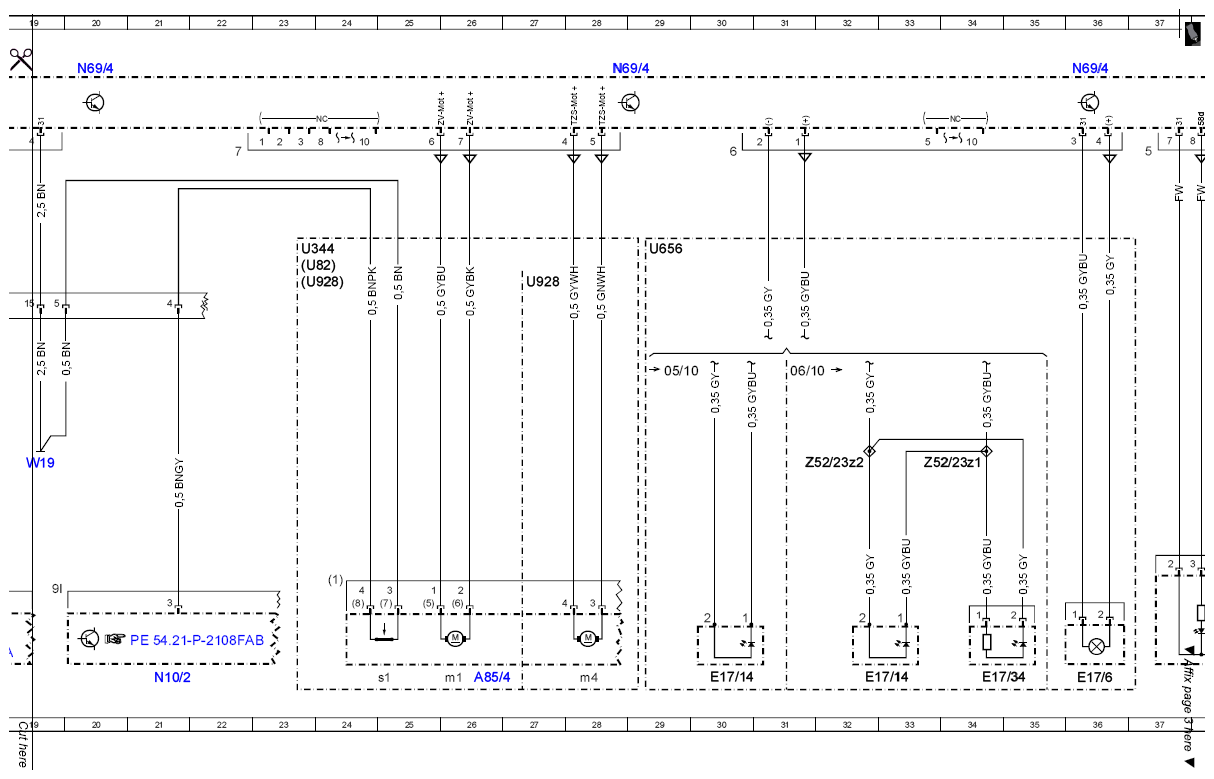

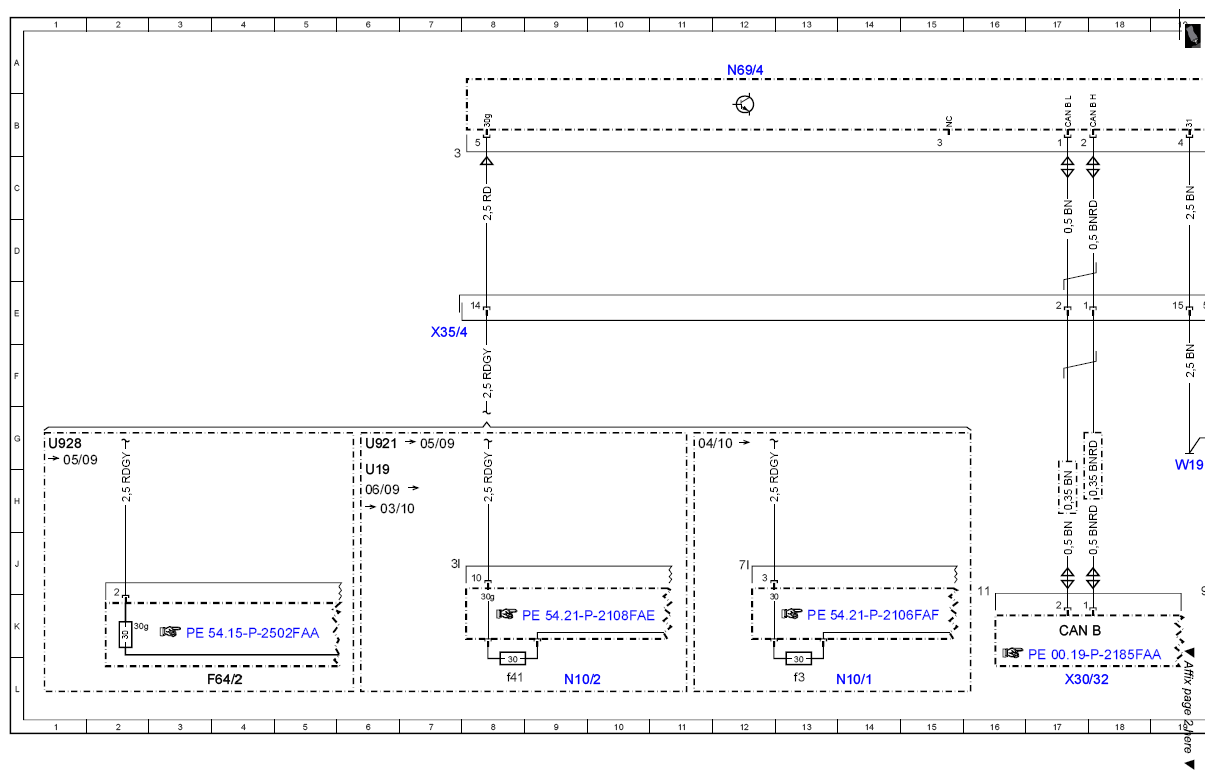

Wiring diagram for right rear door control unit (DCU [TSG]) - PE72.29-P-2104-97FAA
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 48L |
| A85/4 | Right rear door lock | 26L |
| A85/4m1 | Right rear door central locking motor | 26L |
| A85/4m4 | Right rear door additional door lock actuator motor | 28L |
| A85/4s1 | Right rear door rotary tumbler switch | 25L |
| CAN B | Interior CAN | 17K |
| E17/14 | Right rear door handle illumination | 30L |
| E17/14 | Right rear door handle illumination | 32L |
| E17/34 | Right rear door handle recess illumination | 34L |
| E17/6 | Right rear door exit and warning lamp | 36L |
| F64/2 | Right rear door control unit fuse carrier | 4L |
| M10/6 | Right rear door power window motor | 42L |
| N10/1 | Front SAM control unit with fuse and relay module | 14L |
| N10/1f3 | Fuse 3 | 13L |
| N10/2 | Rear SAM control unit with fuse and relay module | 9L |
| N10/2 | Rear SAM control unit with fuse and relay module | 21L |
| N10/2f41 | Fuse 41 | 8L |
| N69/4 | Right rear door control unit | 12A |
| N69/4 | Right rear door control unit | 20A |
| N69/4 | Right rear door control unit | 28A |
| N69/4 | Right rear door control unit | 36A |
| N69/4 | Right rear door control unit | 44A |
| S21/4 | Right rear power window switch | 38L |
| U19 | Valid for standard equipment | 6H |
| U344 | Valid for all except KEYLESS GO | 23D |
| U656 | Valid for interior lights package | 29D |
| U82 | Valid for KEYLESS GO | 23D |
| U921 | Not valid for England | 6G |
| U928 | Valid for England | 1G |
| U928 | Valid for England | 23E |
| U928 | Valid for England | 27E |
| W19 | Right front seat crossmember ground point | 19H |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 17L |
| X35/4 | Right rear door electrical connector | 7E |
| Z52/23z1 | Right rear door illumination connector sleeve | 34G |
| Z52/23z2 | Right rear door illumination connector sleeve | 32G |
