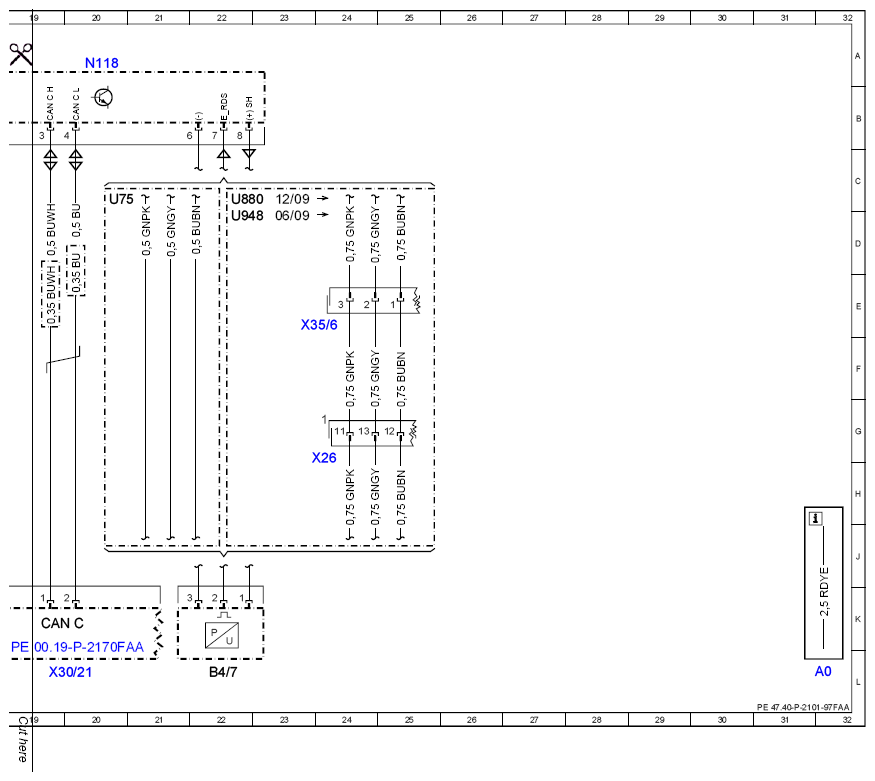

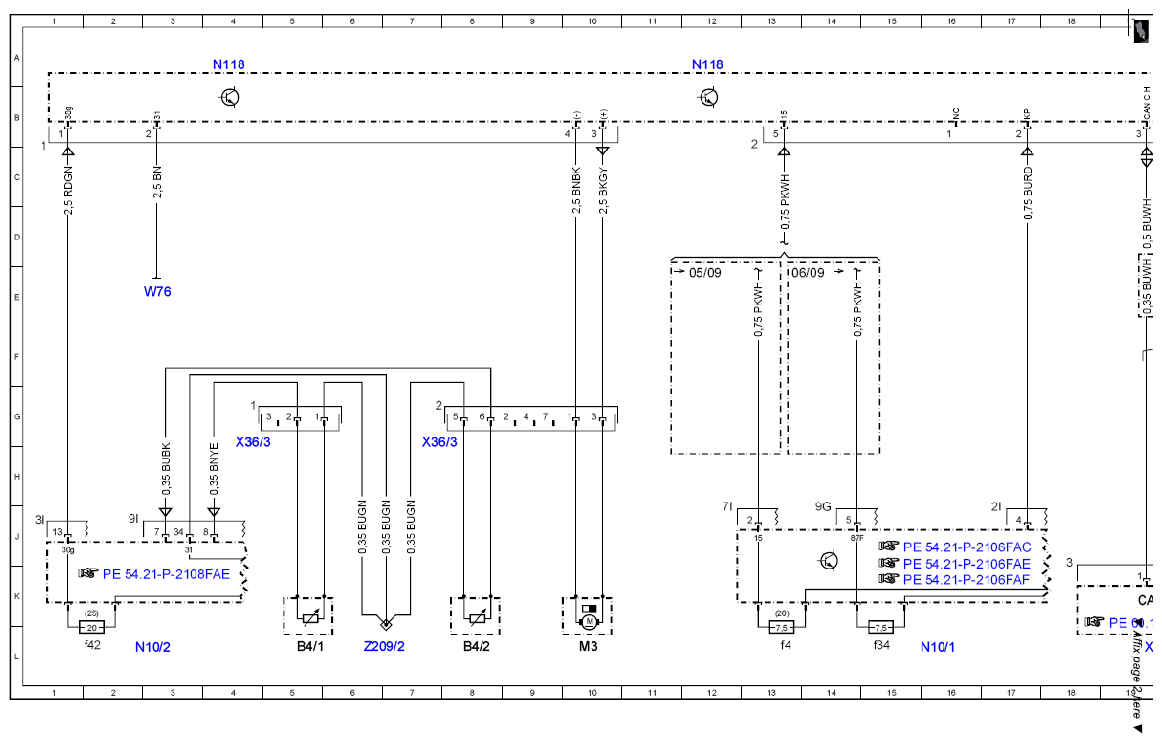

Wiring diagram for fuel pump control unit - PE47.40-P-2101-97FAA
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| B4/1 | Left fuel level indicator sensor | 5L |
| B4/2 | Right fuel level indicator sensor | 8L |
| B4/7 | Fuel pressure sensor | 22L |
| CAN C | Drive train CAN | 19K |
| M3 | Fuel pump (FP) | 10L |
| N10/1 | Front SAM control unit with fuse and relay module | 16L |
| N10/1f34 | Fuse 34 | 15L |
| N10/1f4 | Fuse 4 | 13L |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2f42 | Fuse 42 | 2L |
| N118 | Fuel pump control unit | 4A |
| N118 | Fuel pump control unit | 12A |
| N118 | Fuel pump control unit | 20A |
| U75 | Valid for gasoline engines | 20C |
| U880 | Valid for diesel engine 642 | 22C |
| U948 | Valid for diesel engine 651 | 22D |
| W76 | Fuel pump ground point | 3E |
| X26 | Interior and engine wiring harness electrical connector | 24H |
| X30/21 | Drive train CAN voltage distributor electrical connector | 19L |
| X35/6 | Instrument panel and module box electrical connector | 24E |
| X36/3 | Fuel pump harness electrical connector | 4H |
| X36/3 | Fuel pump harness electrical connector | 7H |
| Z209/2 | Fuel pump control unit connector sleeve | 6L |
