Remove/install camber strut - AR35.20-P-0110MB

MODEL 220.175 /178 with CODE (Z04) Light armoring with CODE (Z07) Top protection

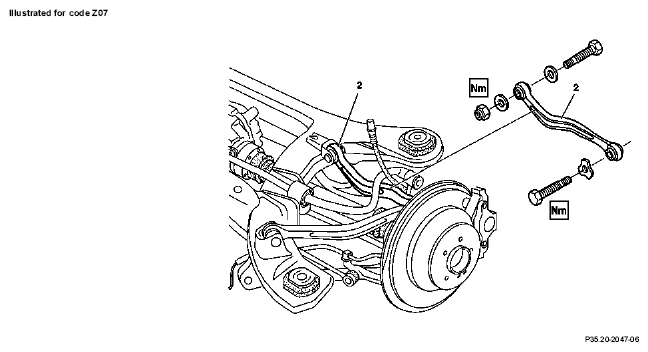

Fig 1: Identifying Camber Strut Remove/Install Components - Model 220.175
G04845411
MODIFICATION NOTES

6.9.00 Value changed from 95 Nm to: 1st stage 60 Nm
2nd stage 90°		 Value changed to BA35.10-P-1001-01A for model 220 *BA35.10-P-1001-01A
6.9.00 Value changed from 95 Nm to: 1st stage 60 Nm
2nd stage 90°		 Value changed to BA35.10-P-1002-01A for model 220 *BA35.10-P-1002-01A
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
NOTESInstallation  Replace self-locking nuts and bolts
1 Remove rear spring   AR32.20-P-0230MB
2 Remove level sensor control rod from torsion bar intermediate lever TORQUE SPECIFICATION *BA82.10-P-1001-02A
3 Use a suitable attachment and pit lift or floor jack beneath rear-axle center assembly to support rear axle
4 Unscrew front and rear bolts of rear-axle mount on one side IMPORTANT Ensure that the stop plate (arrow) for the front rear axle mount is correctly positioned.
Installation:  recut thread on frame floor with tap.
    TORQUE SPECIFICATION Front rear-axle mounting bolts *BA35.10-P-1001-01A
    TORQUE SPECIFICATION Rear rear-axle mounting bolts *BA35.10-P-1002-01A
5 Lower rear axle on one side until the bolted connection of the camber strut to the rear-axle carrier is accessible NOTES The rear axle may only be lowered on one side.
Do not damage the brake hose and exhaust system. Disconnect exhaust system if necessary.
6 Detach camber strut (2) from wheel carrier and rear axle carrier
    NOTESInstallation:  The rear axle shaft must be horizontal when tightening the nuts
    TORQUE SPECIFICATION Camber strut to wheel carrier *BA35.20-P-1002-02B
    TORQUE SPECIFICATION Camber strut to rear axle carrier *BA35.20-P-1001-02B
7 Install in the reverse order
TORQUE SPECIFICATION REAR AXLE CARRIER

Number Designation Model 220
BA35.10-P-1001-01A Self-locking bolt, front rear axle carrier rubber mount to frame floor     Nm -
With bolt Stage 1 Nm 60
Flange ø 24 mm Stage 2 ∠° 90
With bolt Stage 1 Nm 60
Flange ø 26mm Stage 2 ∠° 90
BA35.10-P-1002-01A Self-locking bolt, rear axle carrier rear rubber mount to frame floor     Nm -
With bolt Stage 1 Nm 60
Flange ø 24 mm Stage 2 ∠° 90
With bolt Stage 1 Nm 60
Flange ø 26mm Stage 2 ∠° 90
TORQUE SPECIFICATION CAMBER STRUT

Number Designation Model 220 with codes Z04, Z07
BA35.20-P-1001-02B Self-locking nut, camber strut to rear axle carrier. Nm 120
BA35.20-P-1002-02B Bolt, camber strut to wheel carrier Nm 230
TORQUE SPECIFICATION REAR AXLE LEVEL SENSOR

Number Designation Model 220 except model 220 with code 487
BA82.10-P-1001-02A Nut, lever sensor control rod to torsion bar link Nm 10
