Removing and installing center air vent - AR68.10-P-1150M

MODEL 220

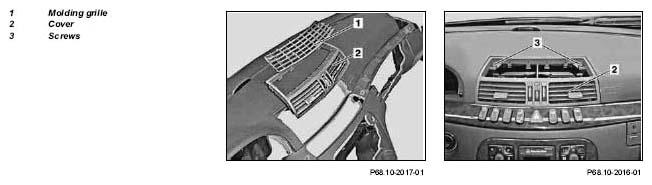

Fig 1: Identifying Removal/Installation Center Air Vent, Molding Grille Cover And Screw - Model 220

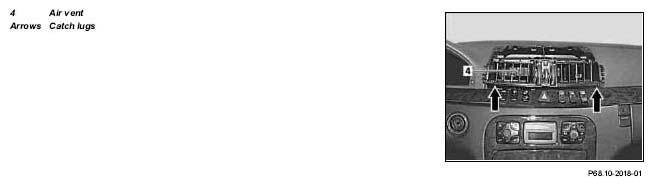

Fig 2: Locating Catch Lugs And Air Vent

	Removal, installation
1	Unclip upper molding grille (1) on cover (2)
2	Unscrew screws (3)
3	Unclip cover (2) from center air vent (4)
4	Press catch lugs (arrows) up and pull out center air vent (4)
5	Disconnect connector for illumination	Illumination cannot be replaced or repaired
6	Install in opposite order
