Removing and installing windshield washer nozzles - AR82.35-P-6970M
MODEL 220, 215
| Removal, installation | |||
| 1 | Open engine hood and move to upright position | AR88.40-P-1000M | |

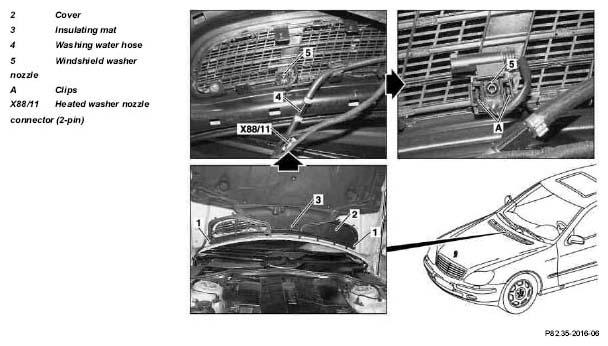

| 2 | Unscrew screws (1) on cover (2) | ||
| 3 | Hold back overlapping part of insulating mat (3), unclip cover (2) from engine hood and remove cover (2) | ||
| 4 | Pull washing water hose (4) off of windshield washer nozzle (5) | ||
| 5 | Disconnect heated washer nozzle connector (2-pin, X88/11) from windshield washer nozzle (5) | ||
| 6 | Press clip (A) in direction of arrow and remove windshield washer nozzle (5) | ||
| 7 | Install in opposite order | ||
| 8 | Check fluid level in windshield washer system, correct | AP82.35-P-8210Z | |
| 9 | Check windshield washer and wiper for proper function | AP82.35-P-8252BA |
