Removing and installing auxiliary turn signal lamp - AR82.25-P-4726M

MODEL 215, 220

Illustrated on model 220

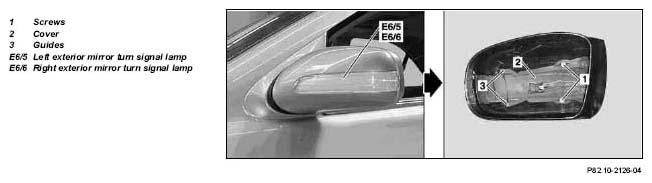

Fig 1: Identifying Exterior Mirror Turn Signal Lamp, Cover, Screws And Guides

	Removal, installation
1	Remove covering on exterior rearview mirror		AR88.70-P-9040M
2	Unscrew screws (1)
3	Remove cover (2) with guides (3) from covering	Installation:  Ensure that guides (3) are correctly seated in cover
4	Remove left/right exterior mirror turn signal lamp (E6/5, E6/6) from covering
5	Install in opposite order
6	Check for proper function
