Removal & Installation
- Remove cover on gearshift lever. See GEARSHIFT LEVER COVER
.

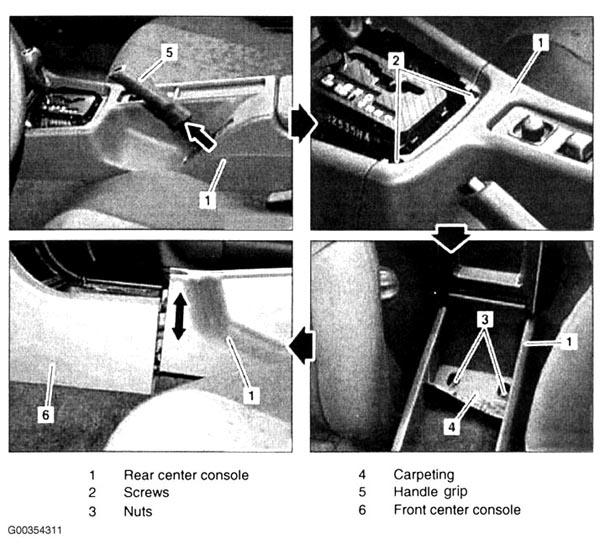

- Remove rubber hand grip (5) from parking brake lever. Rubber hand grip is held on with suction, if necessary cut rubber hand grip off of parking brake lever. See Fig 1
.
- Remove screws (2).
- Open cover on stowage compartment and lift carpeting (4) at rear.
- Remove nuts (3).
- Lift center console up and out while moving forward.
- Guide parking brake lever through opening in retractable cover.
- Disconnect electrical connectors and remove center console.
- Installation is the reverse of removal.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
